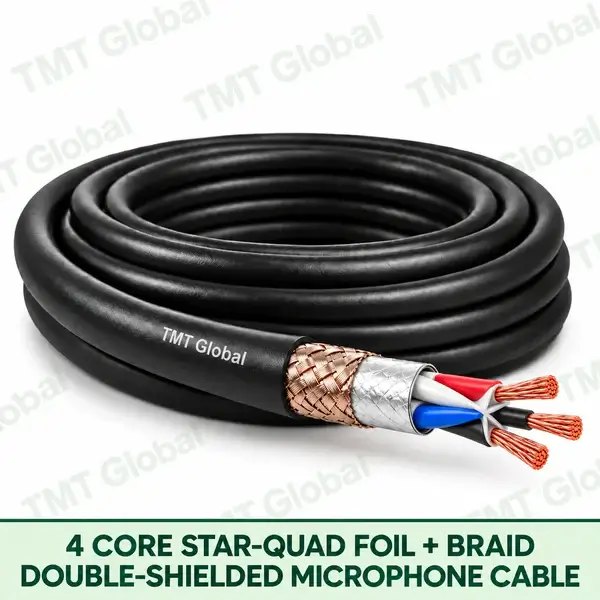

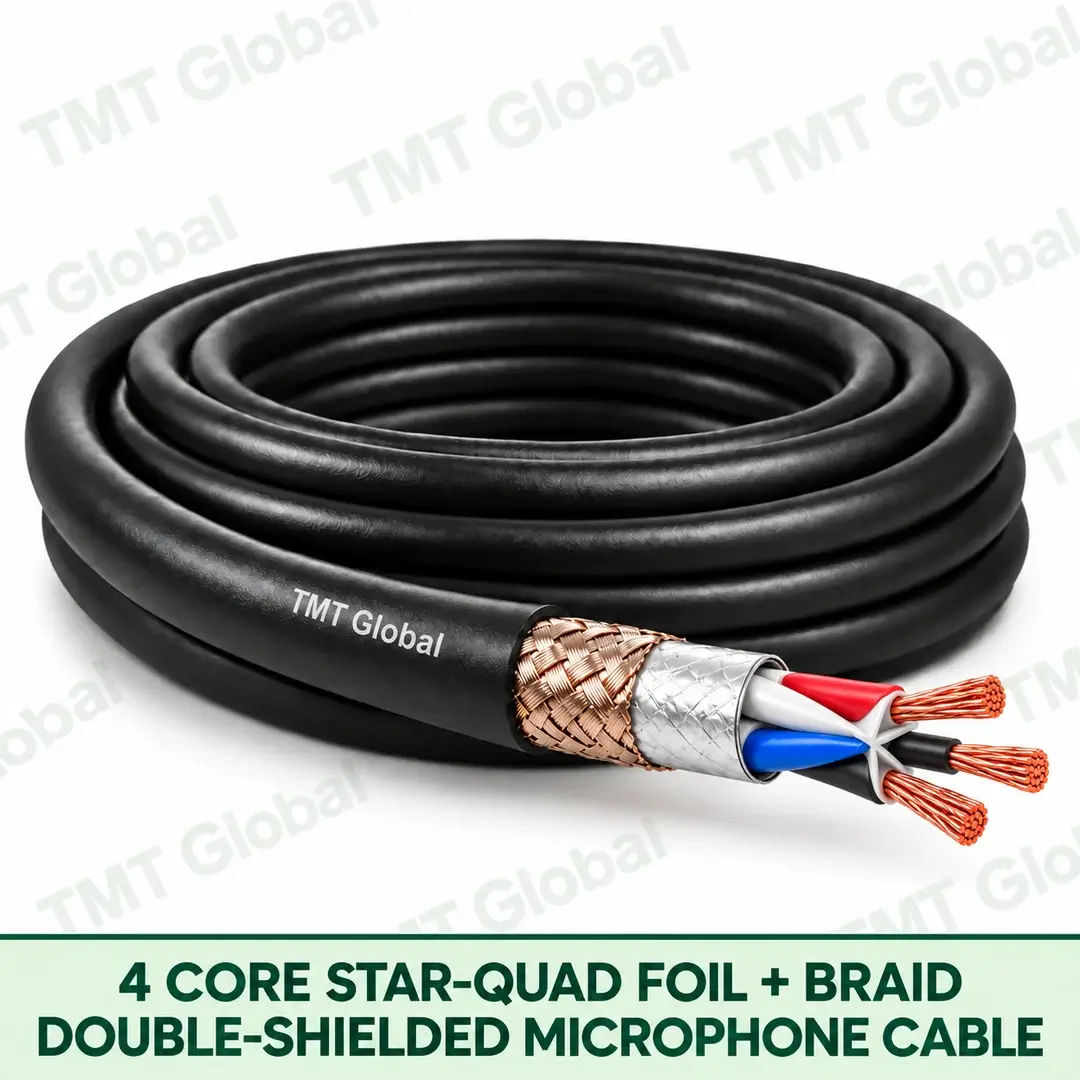

4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable
KEY FEATURES
- Four-core star-quad balanced geometry
- Foil, drain wire and overall copper braid
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Exact searchable ordering code per AWG and jacket
Description
TMT Global 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable Series
TMT Global 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable combines controlled star-quad conductor geometry with foil, drain wire and overall copper braid. This family is positioned for difficult electromagnetic environments and professional applications that require both flexible handling and enhanced screen architecture.
KEY FEATURES
- Four-core star-quad balanced geometry
- Foil, drain wire and overall copper braid
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Exact searchable ordering code per AWG and jacket
TYPICAL APPLICATIONS
- Broadcast studios and production facilities
- High-EMI stages, dimmer rooms and technical areas
- Long-run balanced microphone infrastructure
- Touring audio and premium XLR assemblies
- Critical low-level analogue signal paths
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Professional star-quad microphone and balanced analogue audio cable |
| Geometry / configuration | Star quad / 4 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | Star-quad lay; opposite conductors paired in balanced service |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Foil screen + drain wire + copper braid |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Premium star-quad microphone circuits in high-EMI environments |
| Construction use | Double-shielded star-quad microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| AWG | 20 awg, 22 awg, 24 awg |
|---|---|
| Colour | Black |
| Jacket Type | LSZH, PUR / TPU, PVC |
| Brand | TMT Global |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | QR Code |
|---|---|---|---|---|---|---|
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 20 awg | PVC | Black |  | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 20 awg | LSZH | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 20 awg | PUR / TPU | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 22 awg | PVC | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 22 awg | LSZH | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 22 awg | PUR / TPU | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 24 awg | PVC | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 24 awg | LSZH | Black | | |
| 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable | 04B-MQ | 24 awg | PUR / TPU | Black | |
