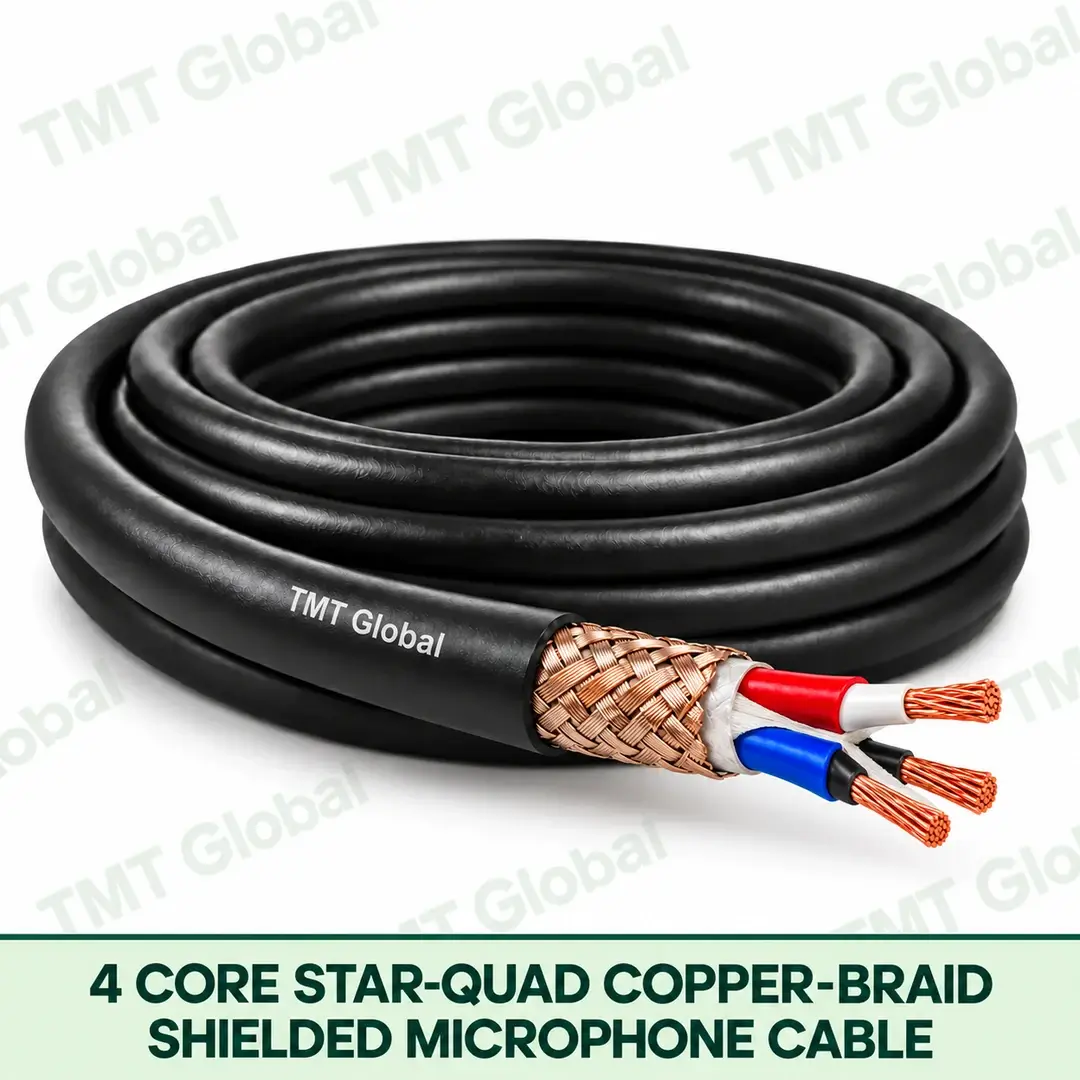

4 Core Star-Quad Copper-Braid Shielded Microphone Cable
KEY FEATURES
- Four-conductor star-quad geometry
- Flexible copper braid / served screen
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Low-noise geometry subject to factory electrical verification
Description
TMT Global 4 Core Star-Quad Copper-Braid Shielded Microphone Cable Series
TMT Global 4 Core Star-Quad Copper-Braid Shielded Microphone Cable uses four insulated conductors arranged as a star-quad geometry with opposite conductors connected in parallel for balanced microphone service. The construction is intended for improved rejection of electromagnetic interference where the released geometry, lay and shield design are verified.
KEY FEATURES
- Four-conductor star-quad geometry
- Flexible copper braid / served screen
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Low-noise geometry subject to factory electrical verification
TYPICAL APPLICATIONS
- Critical microphone lines in electrically noisy venues
- Broadcast, studio and film production
- Stage boxes, patch systems and wall plates
- Touring and live-sound microphone assemblies
- Balanced analogue audio requiring star-quad construction
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Professional star-quad microphone and balanced analogue audio cable |
| Geometry / configuration | Star quad / 4 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | Star-quad lay; opposite conductors paired in balanced service |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Copper braid / served shield |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Star-quad microphone circuits in electrically noisy environments |
| Construction use | Star-quad microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| Colour | Black |
|---|---|
| Brand | TMT Global |
| Jacket Type | LSZH, PUR / TPU, PVC |
| AWG | 20 awg, 22 awg, 24 awg |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 20 awg | PVC | Black | 305 m |  | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 20 awg | LSZH | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 20 awg | PUR / TPU | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 22 awg | PVC | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 22 awg | LSZH | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 22 awg | PUR / TPU | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 24 awg | PVC | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 24 awg | LSZH | Black | 305 m | | |
| 4 Core Star-Quad Copper-Braid Shielded Microphone Cable | 04C-MQ | 24 awg | PUR / TPU | Black | 305 m | |
