TMT Global Access Control Systems
Access control locks for secure door operation.
Explore electric, magnetic, strike and bolt lock families for access-controlled doors. Open a model for exact holding force, voltage and door compatibility.
TMT Global · Locks
Access Control Locks range summary
Complete Access Control Locks family
Lock models for different controlled-door applications.
Select a live access-control lock to review lock type, operating voltage, holding force, mounting, door compatibility and available documentation.
Bracket Z L Magnetic Locks
General Specification
Material: High Strength Aluminum, Sandblast Finished
Suitable: Narrow Door
Opening Mode: 90-Degree Door
Finished for Shell: Anodized aluminium
Weight : 0.4kg/0.75kg/0.82kg/1.3kg/1.6kg
Certification: CE /MA
Material : Special alloy aluminium, flashing silver sandblasting
Suitable For : Inner open wooden door, narrow box door, metal door
Model No. : TMT-7653
Electric Bolt Lock
General Specification
Voltage: DC12V)
Start Current: 900mA
Standby Current: 150mA
Fail-Safe: power to lock
Face Plate: 205Lx35WX41H(mm)
Strike plate: 90Lx25Wx2W(mm)
Surface Temp: Low Temperature
Operating Temp: -10～+55℃(14-131F)
Suitable For : Wooden Door, Glass Door, Metal Door, Glass Door
Weight : 0.7kg
Standard Packing : 30pcs
Model No. : TMT-7664
Electric Bolt Lock Glass doors
General Specification
Fail-Safe: Unlock when power off
Lock size : 150Lx42Wx37H(mm)
Magnet plate: size 150Lx42Wx20H(mm)
Lock pin: 12mmDIA, stainless steel 15mm throw
Voltage: DC12V
Start Current: 1.1A
Standby: Current 0.15A
Solid Lock Pin: Polishing housing, 1000Kg Holding Force
Suitable For: Non-frame glass door
Weight : 0.7kg
Carton size : 53Lx30Wx14H(cm)
Model No. : TMT-7665
electric strike Lock for glass door
General Specification
Voltage: DC12V)
Start Current: 900mA
Standby Current: 150mA
Fail-Safe: power to lock
Face Plate: 205Lx35WX41H(mm)
Strike plate: 90Lx25Wx2W(mm)
Surface Temp: Low Temperature
Operating Temp: -10～+55℃(14-131F)
Suitable For : Wooden Door, Glass Door, Metal Door, Glass Door
Weight : 0.7kg
Standard Packing : 30pcs
Model No. : TMT-7667
Magnetic Door Lock Double Door 280kg
General Specification
Lock Size: 500L*47W*26H(mm)
Armature plate : 180L*38W*11H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output: Dry Contact, Max Rating of Contact Current 3A
Surface Temp: ≤+20℃
Operating Temp: -10～+55℃(14-131F)
Finishes for Magnetic: Zinc
Weight : 4kg
Model No: TMT-7649
magnetic glass door lock single Door 280 kg
General Specification
Lock Size : 170Lx35Wx21H(mm)
Armature plate : 130Lx33Wx9.3H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output : Dry Contact, Max Rating of Contact Current 3A
Surface Temp : ≤+20℃
Operating Temp: -10～+55℃(14-131F)
Finishes for Magnetic : Zinc
Weight : 1.1kg
Model No. : TMT-7646

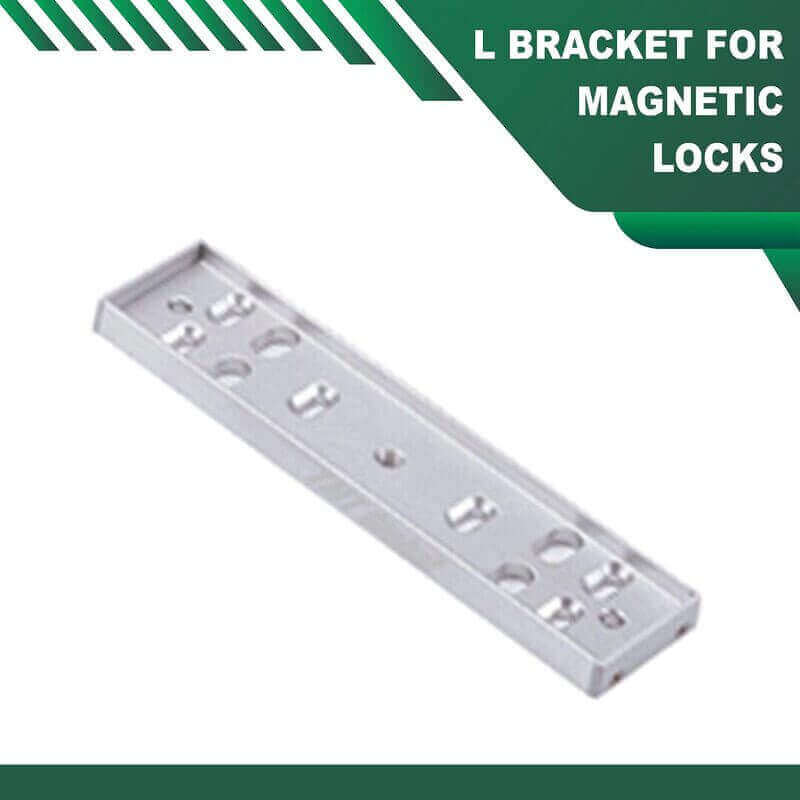

magnetic lock armature plates
General Specification:
Feature: Fail Safe
Dimension : 170x38mm(180L)
Material :High Strength Aluminum, Sandblast Finished
Voltage: 12VDC/24V
Finished for Shell: Anodized aluminum
Opening Mode: 90 Degree Door
Weight : 0.24kg/0.32kg/0.5kg
Suitable For: Inner open wooden door, narrow box door, metal door
Model No. : TMT-7654

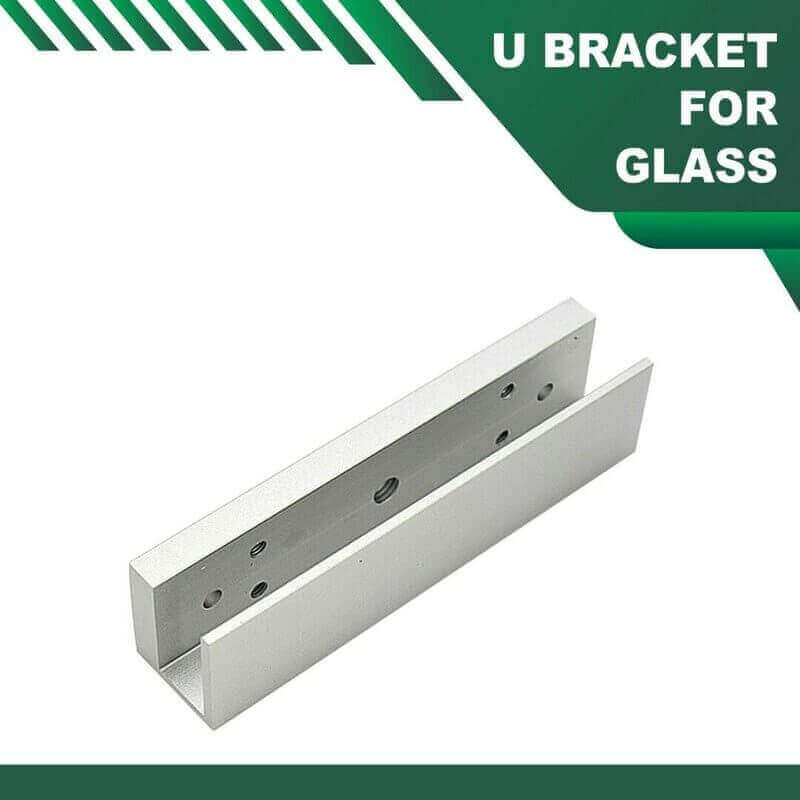

U bracket for glass door
General Specification:
Feature: Fail Safe
Dimension:
130x46x28mm(180U)
182x45x28mm (280U)
185x70x39mm(500U)
Material: High Strength Aluminum, Sandblast Finished
Voltage : DC12V or DC24V (adjustable)
Voltage: 12VDC/24V
Finished for Shell: Anodized aluminium
Opening Mode: 90-Degree Door
Suitable For: Frameless Glass Door
Weight : 0.24kg/0.32kg/0.5kg
Model No. : TMT-7655
Technical resources
Technical resources for lock selection.
Use the exact product record and current technical document before specification. Model attributes, compliance evidence and availability must be verified for the selected product.
Need help selecting the correct Locks model?
Share the application, installation environment, required attributes and documentation needs. TMT Global will help identify the appropriate model for technical review.
