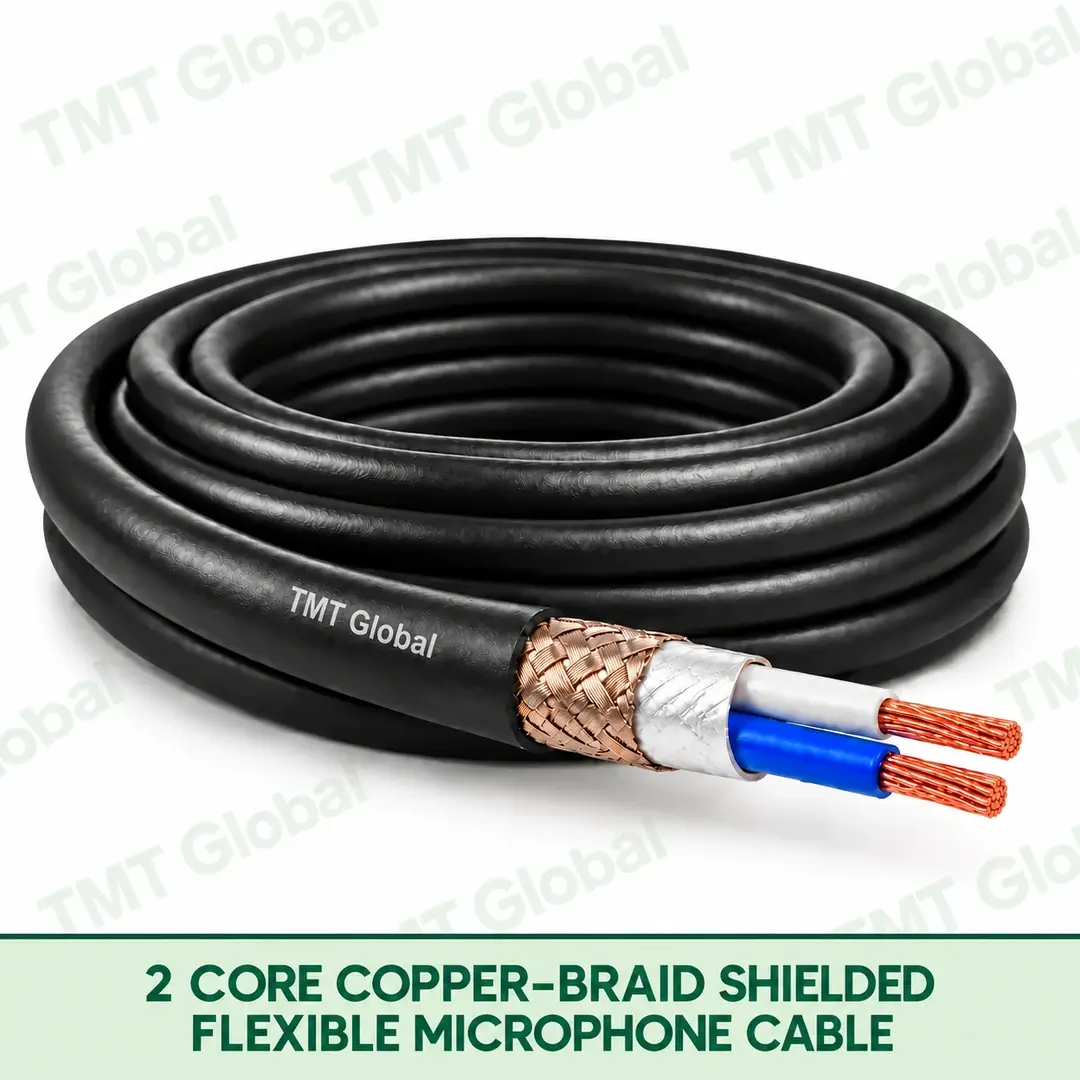

2 Core Copper-Braid Shielded Flexible Microphone Cable
KEY FEATURES
- Two stranded, colour-coded balanced conductors
- Flexible copper braid / served screen for handling and EMI protection
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Exact searchable item code for every standard combination
Description
TMT Global 2 Core Copper-Braid Shielded Flexible Microphone Cable Series
TMT Global 2 Core Copper-Braid Shielded Flexible Microphone Cable is a configurable professional microphone cable family for balanced low-level analogue audio between microphones, stage boxes, wall plates, patch systems, mixers and audio interfaces. The product page fixes the two-core flexible construction and copper braid / served shield, while the TMT Series ordering table provides exact AWG and jacket-specific item codes.
KEY FEATURES
- Two stranded, colour-coded balanced conductors
- Flexible copper braid / served screen for handling and EMI protection
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Exact searchable item code for every standard combination
TYPICAL APPLICATIONS
- Handheld, condenser and dynamic microphone circuits
- Stage, studio and broadcast microphone leads
- Wall plates, patch bays and audio interfaces
- Theatres, houses of worship and hospitality AV
- Bulk cable for connectorised XLR assemblies
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Professional balanced microphone and low-level analogue audio cable |
| Geometry / configuration | 1 balanced pair / 2 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | One balanced pair / two insulated signal conductors |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Copper braid / served shield |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Stage, studio, broadcast and professional microphone circuits |
| Construction use | Flexible microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| AWG | 20 awg, 22 awg, 24 awg |
|---|---|
| Colour | Black |
| Length | 305 m |
| Jacket Type | LSZH, PUR / TPU, PVC |
| Brand | TMT Global |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 20 awg | PVC | Black | 305 m |  | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 20 awg | LSZH | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 20 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 22 awg | PVC | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 22 awg | LSZH | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 22 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 24 awg | PVC | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 24 awg | LSZH | Black | 305 m | | |
| 2 Core Copper-Braid Shielded Flexible Microphone Cable | 02C-MI | 24 awg | PUR / TPU | Black | 305 m | |
