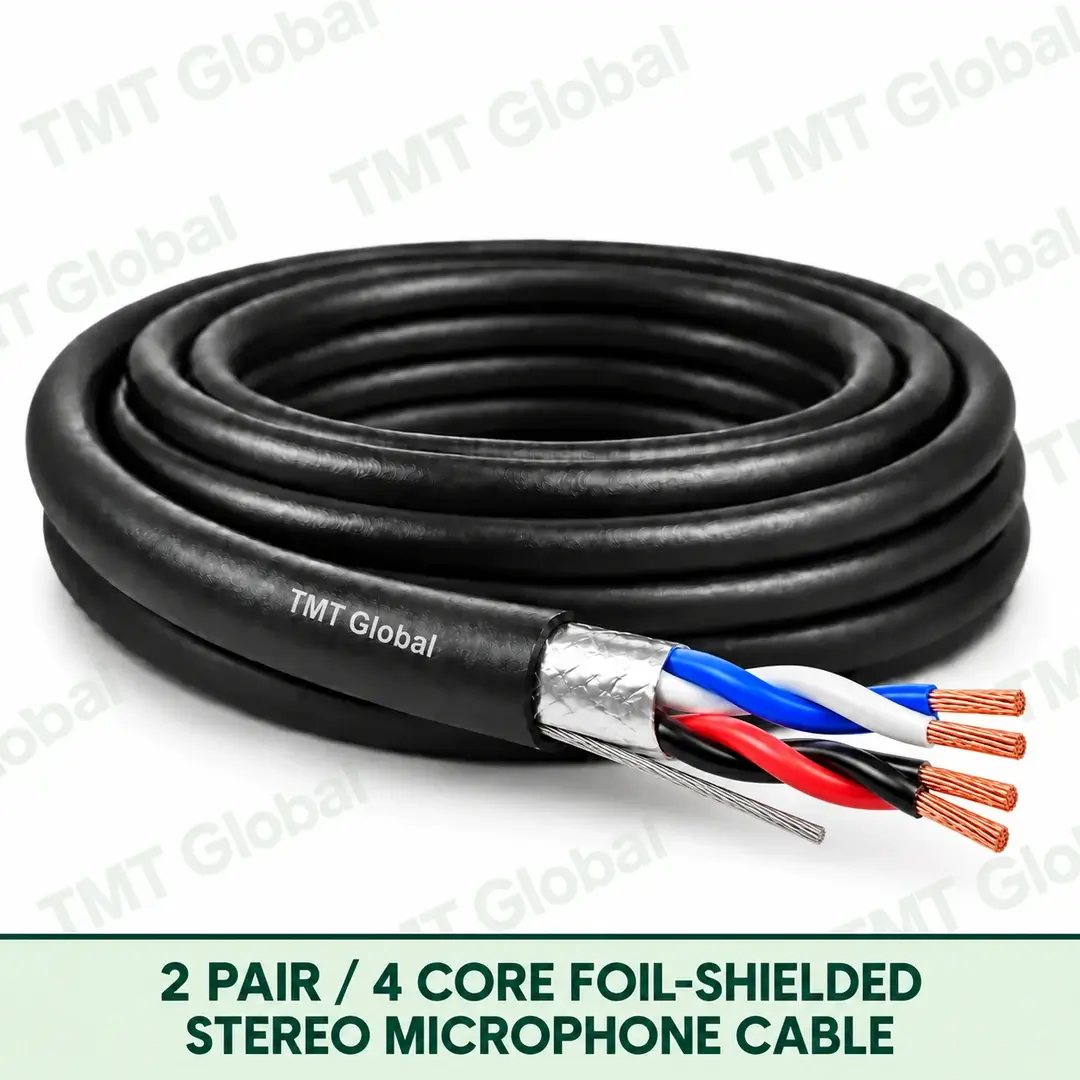

2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable
KEY FEATURES
- Two balanced pairs / four insulated conductors
- Foil screen and drain-wire architecture
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Separate MS suffix prevents collision with star-quad geometry
Description
TMT Global 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable Series
TMT Global 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable provides two balanced audio channels in one round jacket for stereo microphones, dual-capsule systems, talkback plus programme audio, and compact dual-channel interconnection. Pair identification and screening details are controlled by the released construction drawing.
KEY FEATURES
- Two balanced pairs / four insulated conductors
- Foil screen and drain-wire architecture
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Separate MS suffix prevents collision with star-quad geometry
TYPICAL APPLICATIONS
- Stereo and dual-capsule microphones
- Dual-channel stage and studio interconnection
- Talkback plus programme audio
- Compact patching and broadcast systems
- Specialised microphone arrays and conference systems
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Stereo / dual-channel balanced microphone and analogue audio cable |
| Geometry / configuration | 2 balanced pairs / 4 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | Two identified balanced pairs under one jacket |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Foil screen + drain wire architecture |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Stereo microphone and dual-channel balanced audio circuits |
| Construction use | Two-pair stereo / dual-channel microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| Colour | Black |
|---|---|
| Jacket Type | LSZH, PUR / TPU, PVC |
| Brand | TMT Global |
| AWG | 20 awg, 22 awg, 24 awg |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 20 awg | PVC | Black | 305 m |  | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 20 awg | LSZH | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 20 awg | PUR / TPU | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 22 awg | PVC | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 22 awg | LSZH | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 22 awg | PUR / TPU | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 24 awg | PVC | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 24 awg | LSZH | Black | 305 m | | |
| 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable | 04S-MS | 24 awg | PUR / TPU | Black | 305 m | |
