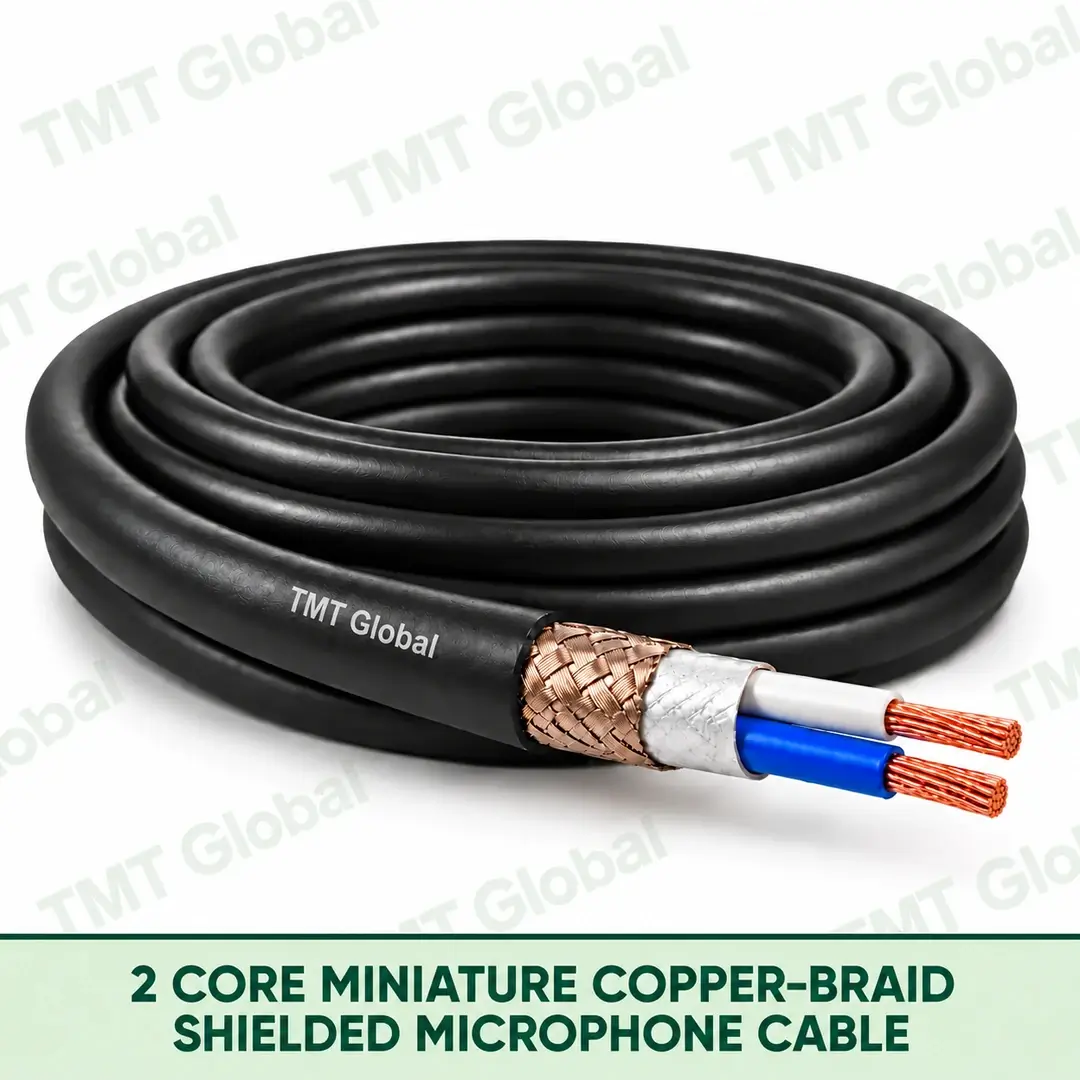

2 Core Miniature Copper-Braid Shielded Microphone Cable
KEY FEATURES
- Compact two-core balanced construction
- Copper braid / served shield
- 26, 28 and 30 AWG miniature Series options
- PVC, LSZH and PUR / TPU jacket options
- Small OD and flexibility controlled by released drawing
Description
TMT Global 2 Core Miniature Copper-Braid Shielded Microphone Cable Series
TMT Global 2 Core Miniature Copper-Braid Shielded Microphone Cable provides a compact balanced signal construction for lavalier, headset, bodypack, compact patching and miniature audio assemblies. The family keeps small conductor sizes separate from standard stage cable and requires factory confirmation of flexibility, capacitance, OD and termination compatibility.
KEY FEATURES
- Compact two-core balanced construction
- Copper braid / served shield
- 26, 28 and 30 AWG miniature Series options
- PVC, LSZH and PUR / TPU jacket options
- Small OD and flexibility controlled by released drawing
TYPICAL APPLICATIONS
- Lavalier and headset microphone assemblies
- Wireless bodypack interconnection
- Compact patching and internal audio harnesses
- Conference, broadcast and presentation systems
- Miniature connectorised microphone leads
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Miniature balanced microphone and low-level analogue audio cable |
| Geometry / configuration | Miniature balanced pair / 2 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 26 AWG / 28 AWG / 30 AWG |
| Signal construction | One miniature balanced pair / two insulated signal conductors |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Copper braid / served shield |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | Lavalier, headset, bodypack and miniature audio assemblies |
| Construction use | Miniature flexible microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 26 AWG | 0.129 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 28 AWG | 0.0810 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 30 AWG | 0.0509 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| Brand | TMT Global |
|---|---|
| AWG | 20 awg, 22 awg, 24 awg |
| Length | 305 m |
| Jacket Type | LSZH, PUR / TPU, PVC |
| Colour | Black |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 20 awg | PVC | Black | 305 m |  | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 20 awg | LSZH | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 20 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 22 awg | PVC | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 22 awg | LSZH | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 22 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 24 awg | PVC | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 24 awg | LSZH | Black | 305 m | | |
| 2 Core Miniature Copper-Braid Shielded Microphone Cable | 02C-MM | 24 awg | PUR / TPU | Black | 305 m | |
