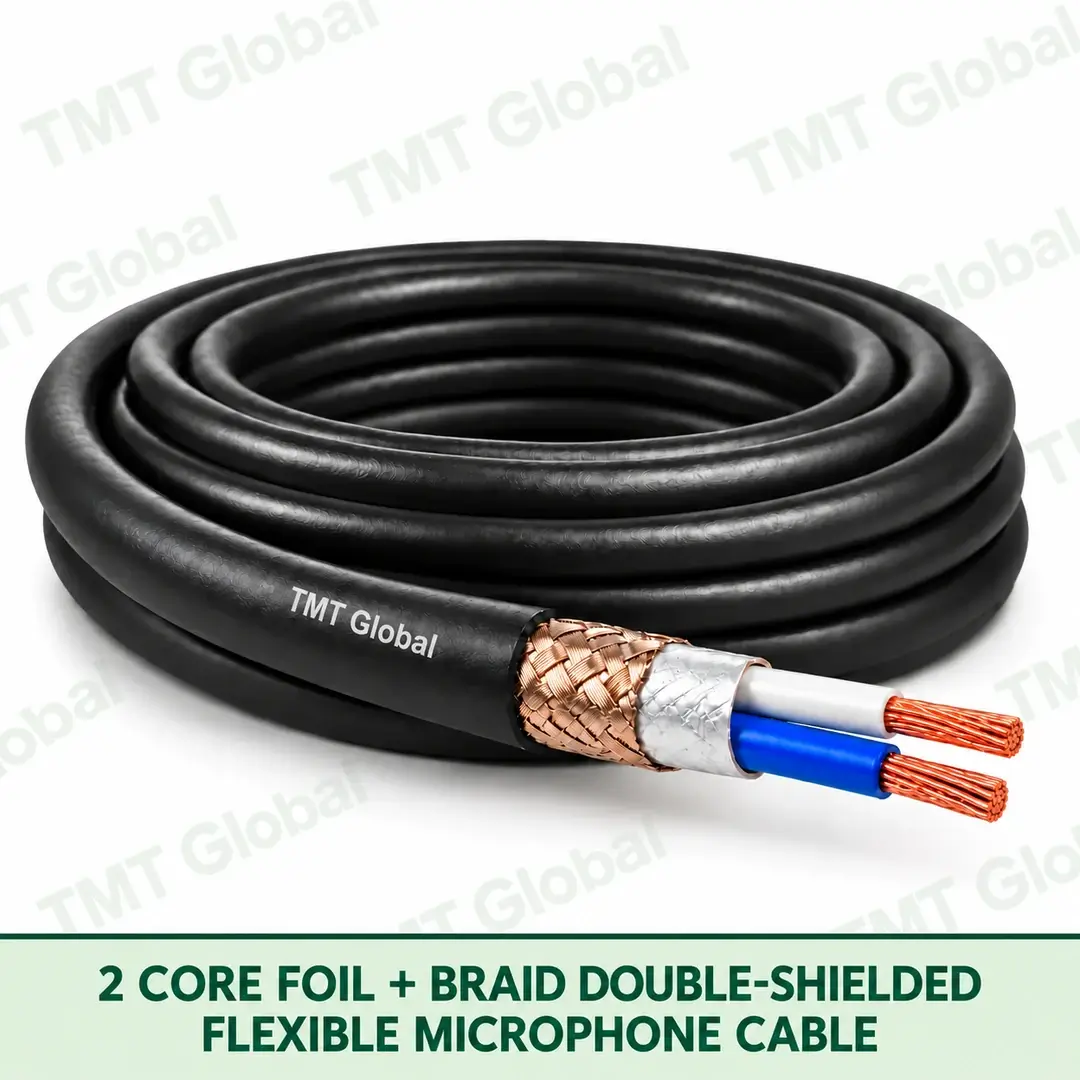

2 Core Foil + Braid Double-Shielded Flexible Microphone Cable
KEY FEATURES
- Balanced two-core microphone geometry
- Foil plus overall copper braid for enhanced screening
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Factory-controlled capacitance, shield coverage and flexibility
Description
TMT Global 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable Series
TMT Global 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable combines a balanced two-core signal pair with foil screening, drain wire and an overall copper braid for demanding professional-audio environments. The Series architecture keeps AWG and jacket variants on one product page while preserving exact orderable SKUs.
KEY FEATURES
- Balanced two-core microphone geometry
- Foil plus overall copper braid for enhanced screening
- 20, 22 and 24 AWG Series options
- PVC, LSZH and PUR / TPU jacket options
- Factory-controlled capacitance, shield coverage and flexibility
TYPICAL APPLICATIONS
- High-EMI stages and equipment rooms
- Broadcast, studio and live production
- Longer microphone runs and installed AV
- Touring audio and portable stage systems
- Premium XLR microphone assemblies
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Professional balanced microphone and low-level analogue audio cable |
| Geometry / configuration | 1 balanced pair / 2 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Available conductor sizes | 20 AWG / 22 AWG / 24 AWG |
| Signal construction | One balanced pair / two insulated signal conductors |
| Core insulation | PE / PVC / halogen-free compound, construction dependent |
| Screening | Foil screen + drain wire + copper braid |
| Outer-jacket options | PVC / LSZH / PUR / TPU |
| Cable form | Round |
| Standard colour | Black |
| Primary application | High-EMI stage, studio, broadcast and professional microphone circuits |
| Construction use | Flexible double-shielded microphone bulk cable |
| Standard package | 305 m |
| Alternate package lengths | 100 m and project lengths by Series row |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG | 0.519 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PUR / TPU • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH / PUR / TPU • 305 m |
Additional information
| AWG | 20 awg, 22 awg, 24 awg |
|---|---|
| Brand | TMT Global |
| Jacket Type | LSZH, PUR / TPU, PVC |
| Length | 305 m |
| Colour | Black |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 20 awg | PVC | Black | 305 m |  | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 20 awg | LSZH | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 20 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 22 awg | PVC | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 22 awg | LSZH | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 22 awg | PUR / TPU | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 24 awg | PVC | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 24 awg | LSZH | Black | 305 m | | |
| 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable | 02B-MI | 24 awg | PUR / TPU | Black | 305 m | |
