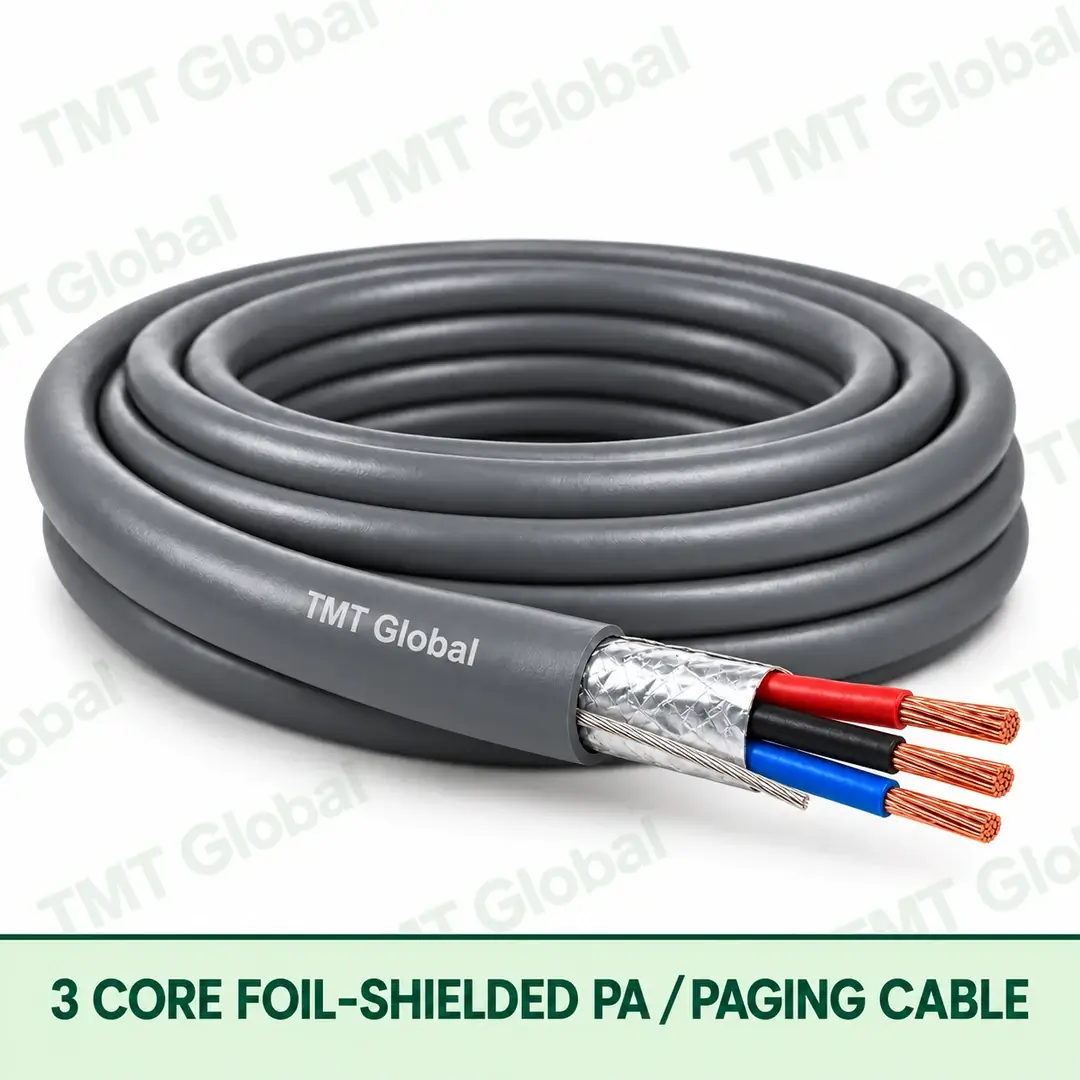

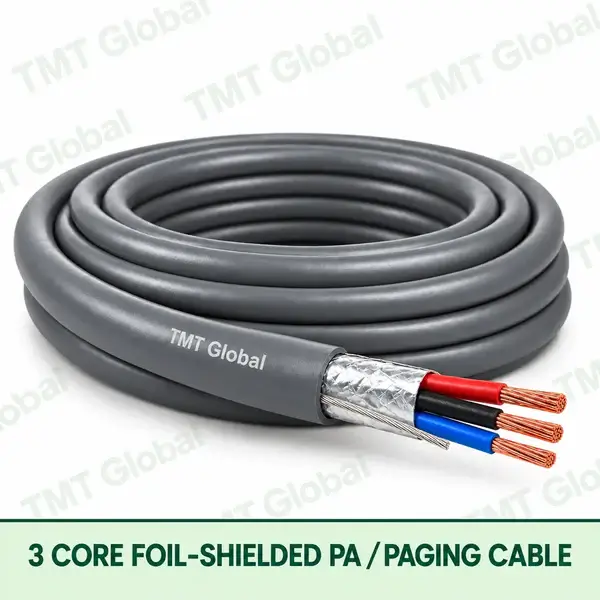

3 Core Foil-Shielded PA / Paging Cable
KEY FEATURES
- Three stranded bare-copper conductors
- Overall foil screen and drain wire
- PVC, LSZH and PE Outdoor jackets
- Screened PA and paging construction
- Series rows for exact AWG and jacket codes
Description
TMT Global 3 Core Foil-Shielded PA / Paging Cable Series
TMT Global 3 Core Foil-Shielded PA / Paging Cable combines three signal/control conductors with an overall foil screen and drain wire. It supports paging, intercom and commercial-audio installations that need an additional control conductor and improved noise immunity.
KEY FEATURES
- Three stranded bare-copper conductors
- Overall foil screen and drain wire
- PVC, LSZH and PE Outdoor jackets
- Screened PA and paging construction
- Series rows for exact AWG and jacket codes
TYPICAL APPLICATIONS
- PA paging stations
- Intercom call points
- Commercial-audio control circuits
- Noisy building-service routes
- Indoor and outdoor paging links
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Screened PA / paging bulk cable |
| Geometry / configuration | 3 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper conductors |
| Available conductor sizes | 14 AWG / 16 AWG / 18 AWG / 20 AWG |
| Conductor identification | Colour-coded insulated conductors |
| Core / pair construction | 3 colour-coded insulated conductors |
| Screening | Overall foil screen |
| Drain wire | Drain wire included |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey (PVC/LSZH) / Black (PE Outdoor) |
| Package length | 305 m standard package |
| Typical applications | Paging, intercom and commercial-audio control circuits requiring overall screening |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 14 AWG | 2.08 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 20 AWG | 0.519 mm² | PVC / LSZH / PE Outdoor • 305 m |
Additional information
| AWG | 14 awg, 16 awg, 18 awg, 20 awg |
|---|---|
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Brand | TMT Global |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 14 awg | PVC | Grey | 305 m |  | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 14 awg | LSZH | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 14 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 16 awg | PVC | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 16 awg | LSZH | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 16 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 18 awg | PVC | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 18 awg | LSZH | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 18 awg | PE Outdoor | Black | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 20 awg | PVC | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 20 awg | LSZH | Grey | 305 m | | |
| 3 Core Foil-Shielded PA / Paging Cable | 03C-S-PA | 20 awg | PE Outdoor | Black | 305 m | |
