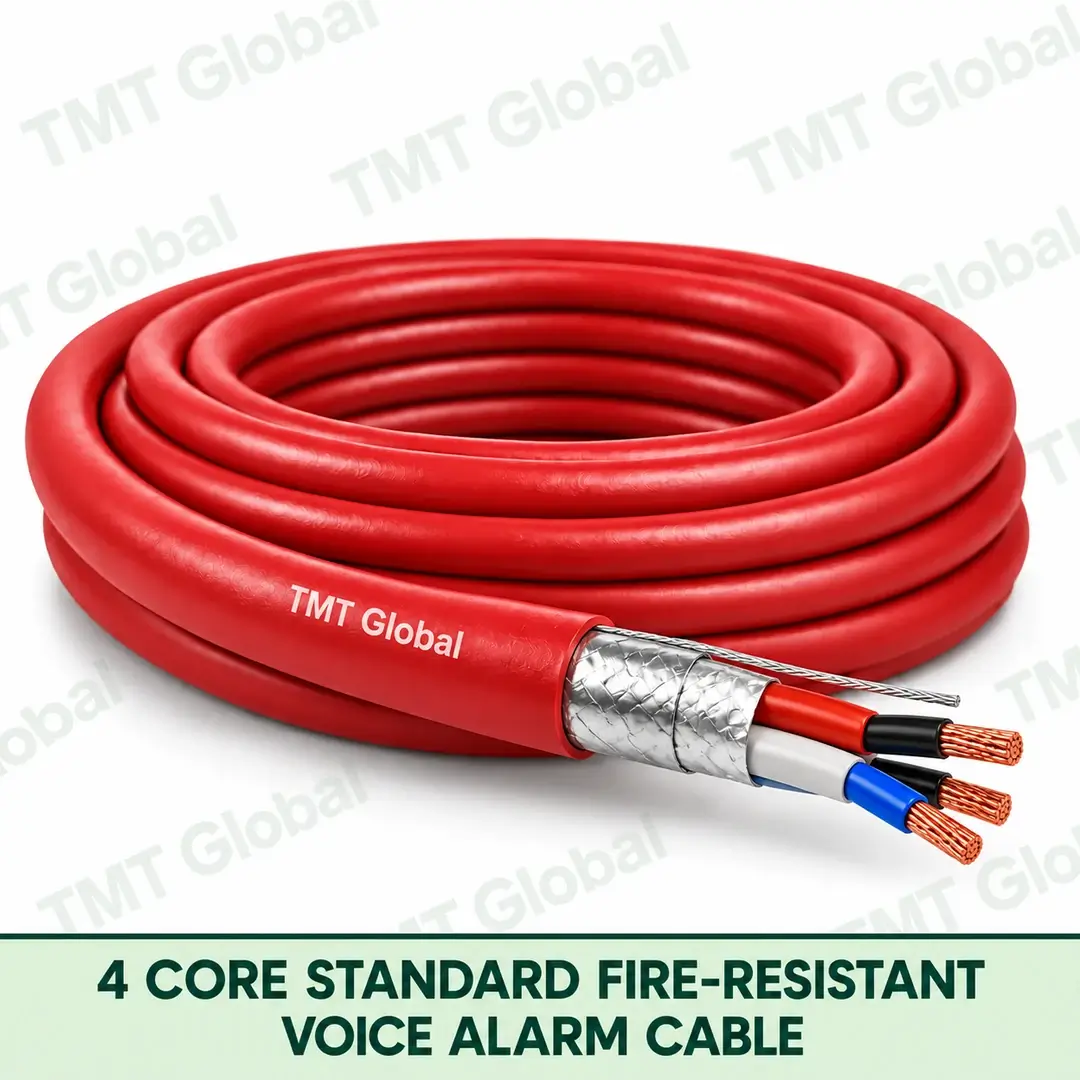

4 Core Standard Fire-Resistant Voice Alarm Cable
KEY FEATURES
- 4 copper conductors with fire-resistant insulation system
- Overall foil screen and drain wire
- Low-smoke zero-halogen outer jacket
- Red, orange and white project colour options
- Standard fire-resistance target subject to evidence
Description
TMT Global 4 Core Standard Fire-Resistant Voice Alarm Cable Series
TMT Global 4 Core Standard Fire-Resistant Voice Alarm Cable is a controlled screened LSZH family intended for voice-alarm, emergency communication and related life-safety circuits where a standard fire-resistance classification is specified. The final published fire-resistance claim must match the exact TMT construction, accredited test evidence and project authority requirement.
KEY FEATURES
- 4 copper conductors with fire-resistant insulation system
- Overall foil screen and drain wire
- Low-smoke zero-halogen outer jacket
- Red, orange and white project colour options
- Standard fire-resistance target subject to evidence
TYPICAL APPLICATIONS
- Voice-alarm circuits
- Emergency voice communication
- Public-address evacuation systems
- Fire-safety control circuits
- Critical building communication
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Fire-resistant screened voice-alarm / emergency communication cable |
| Geometry / configuration | 4 core |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper conductors |
| Available conductor sizes | 14 AWG / 16 AWG / 18 AWG |
| Fire-resistance family | Standard fire-resistant construction family; exact tested classification supplied with approved product documentation |
| Core / pair construction | 4 core; colour-coded insulated conductors with fire-resistant insulation system |
| Screening | Overall foil screen |
| Drain wire | Drain wire included |
| Outer-jacket options | Fire-resistant LSZH |
| Cable form | Round |
| Standard colours | Red / Orange / White |
| Package length | 305 m standard package |
| Typical applications | Voice-alarm, emergency communication and public-address evacuation circuits |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 14 AWG | 2.08 mm² | Fire-resistant LSZH • Red / Orange / White • 305 m |
| 16 AWG | 1.31 mm² | Fire-resistant LSZH • Red / Orange / White • 305 m |
| 18 AWG | 0.823 mm² | Fire-resistant LSZH • Red / Orange / White • 305 m |
Additional information
| Colour | Orange, Red, White |
|---|---|
| AWG | 14 awg, 16 awg, 18 awg |
| Length | 305 m |
| Jacket Type | LSZH |
| Brand | TMT Global |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 14 awg | LSZH | Red | 305 m |  | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 14 awg | LSZH | Orange | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 14 awg | LSZH | White | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 16 awg | LSZH | Red | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 16 awg | LSZH | Orange | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 16 awg | LSZH | White | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 18 awg | LSZH | Red | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 18 awg | LSZH | Orange | 305 m | | |
| 4 Core Standard Fire-Resistant Voice Alarm Cable | 04C-S-VS | 18 awg | LSZH | White | 305 m | |
