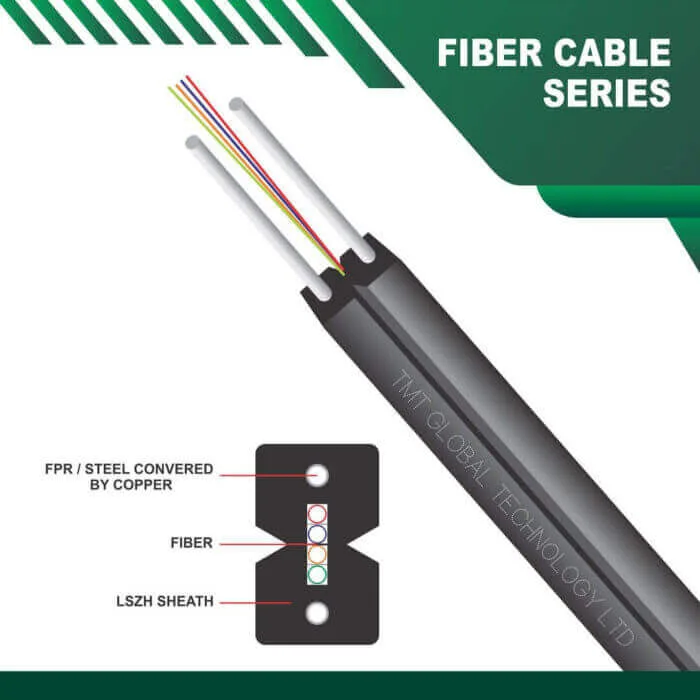

FTTH fiber optic Drop cable 4 Core sm indoor outdoor G.657/A1/A2
$1.00
General Specification
Products : FTTH Fiber optic cable single mode
Fiber Count : 4
Fiber Type :ITU-T G.657A1/A2,G.652D
Outer Jacket : LSZH, BLACK
Attenuation (max/KM) :0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±
Product ID : TMT-045TPK
TMT Global FTTH fiber optic Drop cable 4 Core sm indoor outdoor G.657/A1/A2
TMT GLOBAL FTTH fiber optic Drop cable 4 Core sm indoor outdoor G.657/A1/A2 provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard. ffth cable ffth cables home ftth ftth cable
PHYSICAL DESCRIPTION
- Products: multi mode Fiber optic cable
- Tube Filling Compound: Thixotropic jelly /N
- Fiber Type: 50/125 OM2
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: N
- Packing Detail
- Fiber Count: 6,8,12,24,
- Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
- Cable Diameter(mm): 4.2*-12
- Cable Weight(kg/km): 45±
- Length/ Drum: 2000 m Drum ±5%
- Ripcord: Polyester cord
- Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Optical Characteristics
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
