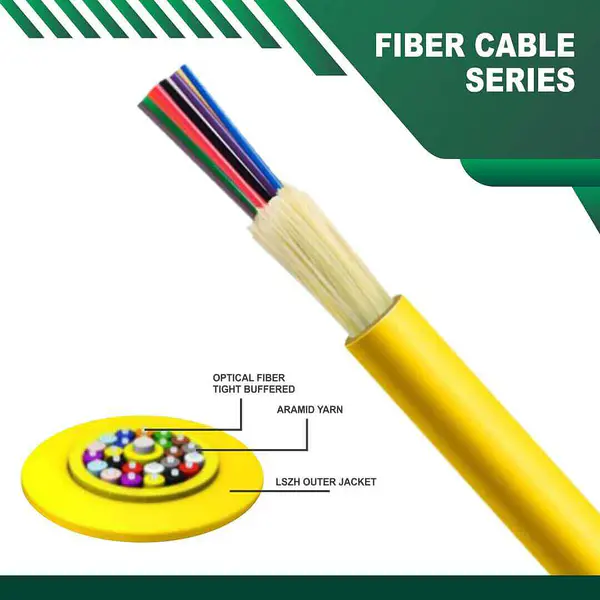

fiber optic cable Multi Core single mode 8core LSZH G.652D
Rated 5.00 out of 5 based on 1 customer rating
$2.00
General Specification
Products : Fiber optic cable single mode
Fiber Count : 8
Fiber Type :ITU-T G.652D
Outer Jacket : LSZH
Attenuation (max/KM) :0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID :TMT-081TLY
Description
TMT GLOBAL fiber optic cable Multi Core single mode 8core LSZH G.652D
TMT GLOBAL provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard.
PHYSICAL DESCRIPTION
- Products: multi mode Fiber optic cable
- Tube Filling Compound: Thixotropic jelly /N
- Fiber Type: 50/125 OM2
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: N
- Packing Detail
- Fiber Count: 6,8,12,24,
- Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
- Cable Diameter(mm): 4.2*-12
- Cable Weight(kg/km): 45±
- Length/ Drum: 2000 m Drum ±5%
- Ripcord: Polyester cord
- Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Physical tests Value Standard
Tensile Strength 2700 N (During Installation) IEC 60794-1-E1
1700 N (During Operation)
Impact Resistance 10J, 3 impacts IEC 60794-1-E4
Crush Resistance 220 N/cm IEC 60794-1-E3
Temperature Cycling -40 to +70 °C IEC 60794-1-F1
Flame Retardancy According to IEC 60332-3 IEC 60332-3
Cable Bending Radius
Bend Radius (during installation) 20x Cable Diameter IEC 60794-1-2-E11A
Bend Radius (during Service) 1 0x Cable Diameter IEC 60794-1-E11
Repeating Bending 20x Cable Diameter IEC 60794-1-E6
Temperature Range)
Operation Temperature -40 to +70 C IEC 60794-1-2-F1
Storage and Transportation Temperature -40 to +70 C
Installation Temperature -30 to +60 C
Optical Characteristics
Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
item name: fiber optic cable Multi Core single mode 8core LSZH G.652D
Specification PDF
Specification PDF
Testing Report
Testing Report
