G.657.A1 Indoor Multicore LSZH Fibre Cable Family
Key features
- 6F / 8F / 12F / 24F / 48F / 96F controlled Series
- G.657.A1 bend-insensitive single-mode fibre
- Stranded loose-tube family architecture
- Non-armoured indoor LSZH / HFFR jacket
- One physical WooCommerce family page
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Description

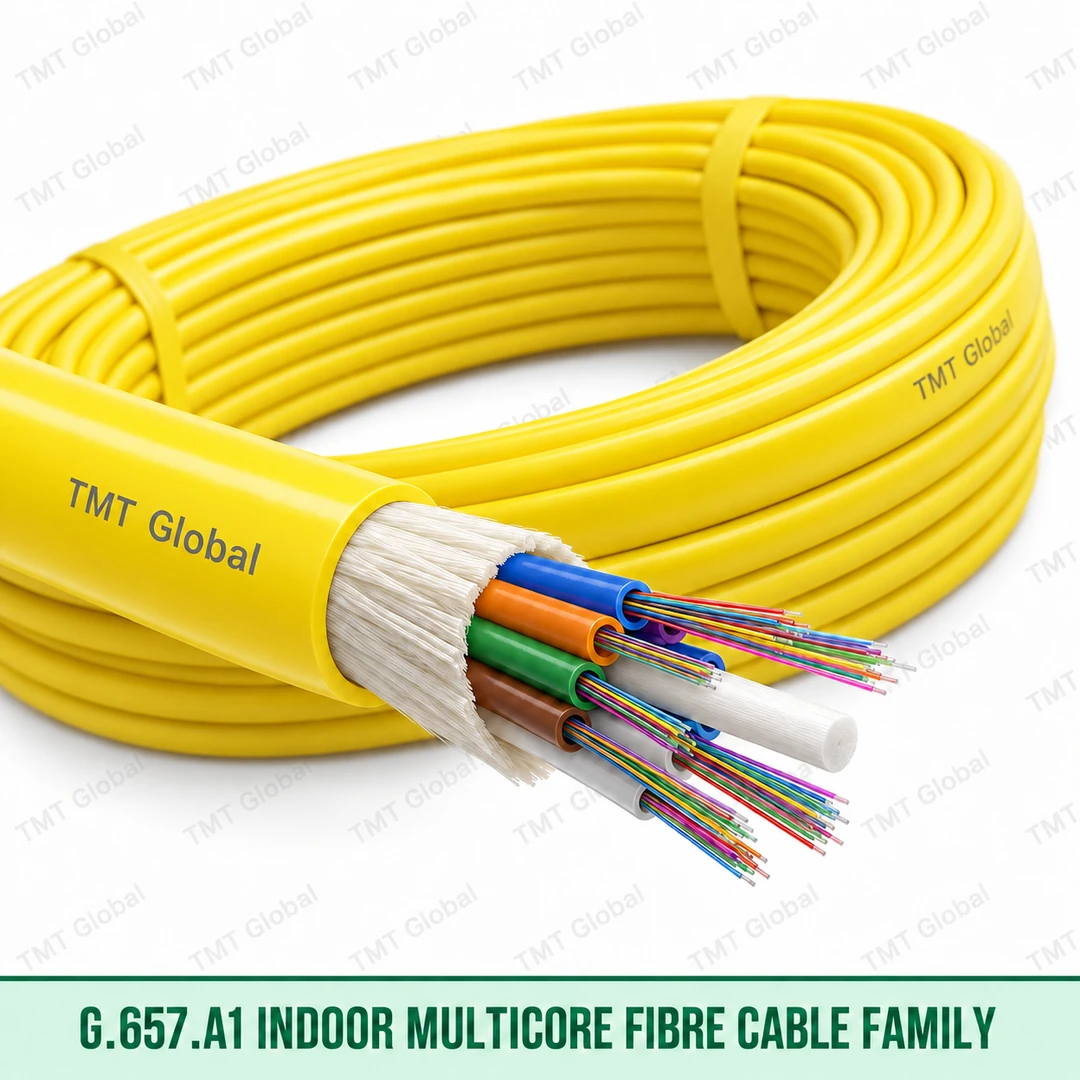

TMT Global Series G.657.A1 Indoor Multicore LSZH Fibre Cable Family
The TMT G.657.A1 Indoor Multicore LSZH Fibre Cable Family is a controlled non-armoured stranded loose-tube series for permanent building backbone and riser routes. The 6F, 8F, 12F, 24F, 48F and 96F models share one construction philosophy and are managed as one website family, with exact Series item codes listed in the ordering table. Final CPR family grouping and representative test sample(s) remain subject to Notified Body acceptance.
Key features
- 6F / 8F / 12F / 24F / 48F / 96F controlled Series
- G.657.A1 bend-insensitive single-mode fibre
- Stranded loose-tube family architecture
- Non-armoured indoor LSZH / HFFR jacket
- One physical WooCommerce family page
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Typical applications
- MTR-to-FTC building backbone
- High-rise indoor fibre risers
- Mini-ODF / telecom-room distribution
- Commercial and residential building infrastructure
- Permanent indoor FTTx backbone routes
TECHNICAL SPECIFICATION
| Product type | Indoor multicore single-mode fibre optic cable family |
| Core counts | 6 / 8 / 12 / 24 / 48 / 96 fibres |
| Fibre grade | ITU-T G.657.A1 • backward compatibility to project G.652.D requirements where applicable |
| Cable construction | Stranded loose-tube family — exact tube / filler schedule by released drawing |
| Protection | Non-armoured |
| Outer jacket | LSZH / HFFR indoor jacket |
| Jacket colour | White |
| Application | Permanent indoor building backbone, riser, MTR-to-FTC and mini-ODF routes |
| Operating / storage temperature | To be confirmed per released construction |
| Minimum bend radius | To be confirmed per released construction |
PERFORMANCE / RELEASE CONTROLS
| Optical attenuation | Use released G.657.A1 fibre values; verify exact supplier evidence |
| Tensile / crush | Model-specific values to be verified by construction and cable OD |
| Water blocking | Dry / gel / water-blocking system to be locked for the certified family |
| Strength member | Central strength member / FRP and yarn arrangement per released drawing |
| Family grouping | Request Notified Body assessment for 6F–96F as one family; test representative model(s) as directed |
STANDARDS / CPR CONTROL
| Standards framework | IEC 60793 • IEC 60794 • applicable ITU-T G.657 recommendation |
| Fire / CPR target | Halogen-free • target Euroclass Cca-s1b,d2,a2 or higher |
| Formal release | System 1+ / CoCP / DoP / CE only after Notified Body certification |
| Manufacturer / brand | Fahad Cables Industry FZE / TMT Global |
Additional information
| Brand | TMT Global |
|---|---|
| Jacket Type | LSZH |
Ordering Information
| Item Name | Item Code / SKU | Controlled Description | Series | Brand | Jacket Type | QR Code |
|---|---|---|---|---|---|---|
| Single Mode Fibre Cables | Single Mode Fibre Cables | Fibre Optic Cables | TMT Global | LSZH |  |
