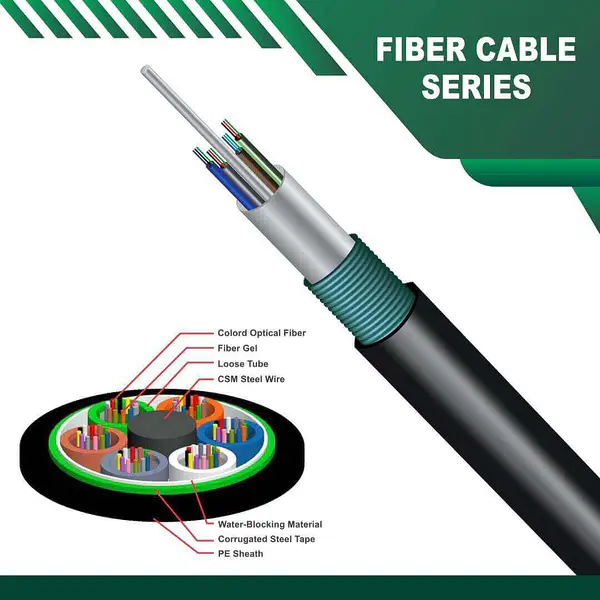

fiber optic cable Multi Core single mode Armored 96core G652D
$2.00
General Specification
Products : Fiber optic cable single mode
Fiber Count : 96
Fiber Type : ITU-T G.657A1/A2,G.652D
Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM) : 0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID : TMT-961LPK
TMT GLOBAL fiber optic cable Multi Core single mode Armored 96core G.652D
TMT GLOBAL fiber optic cable Multi Core single mode Armored 96core G.652D provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard.
PHYSICAL DESCRIPTION
- Products: multi mode Fiber optic cable
- Tube Filling Compound: Thixotropic jelly /N
- Fiber Type: 50/125 OM2
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: N
- Packing Detail
- Fiber Count: 6,8,12,24,
- Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
- Cable Diameter(mm): 4.2*-12
- Cable Weight(kg/km): 45±
- Length/ Drum: 2000 m Drum ±5%
- Ripcord: Polyester cord
- Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Optical Characteristics
- Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
- Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
- Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
- Numerical Aperture:0.2±0.015
- Core Diameter: 50 ± 2 μm
- Cladding Diameter: 125 ± 1μm
- Core/Clad Concentricity error: ≤ 1 μm
- Cladding non-circularity:≤ 0.7 %
- Coating Diameter:242 ± 5 μm
- Proof Test: ≥ 100kpsi or 0.7GPa
