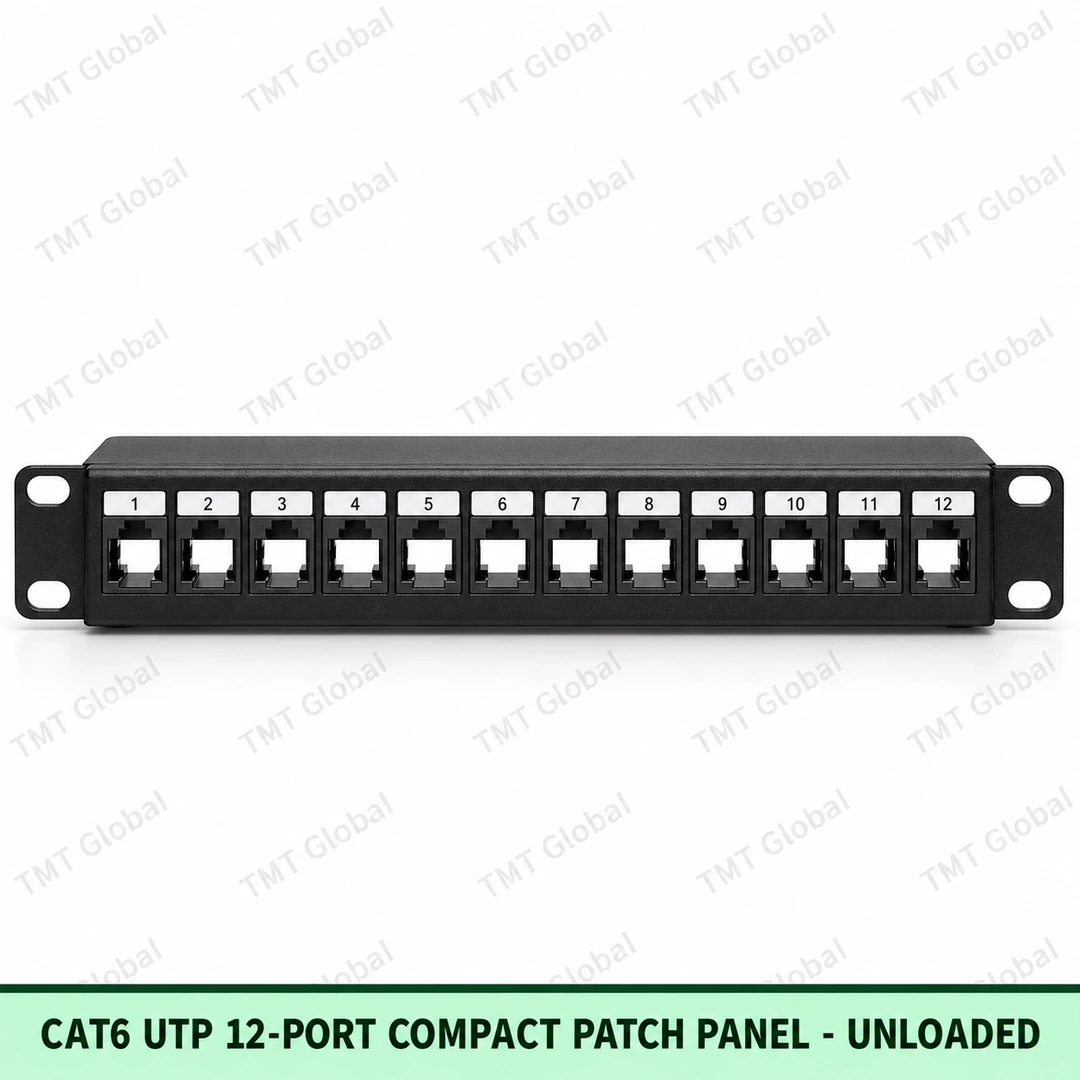

Cat6 UTP 12-Port Compact Patch Panel | Unloaded
FEATURES
- 12-port unloaded compact format
- 12-inch class small-cabinet application
- SPCC galvanized steel panel
- UL 94 V-0 plastic module holder
- T568A/T568B wiring support
- Rear cable support and label area
Description
TMT Global Cat6 UTP 12-Port Compact Patch Panel | Unloaded Series
Cat6 UTP 12-Port Compact Patch Panel | Unloaded is a TMT Global copper patch-panel product for compact wall cabinets and mini-rack installations. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- 12-port unloaded compact format
- 12-inch class small-cabinet application
- SPCC galvanized steel panel
- UL 94 V-0 plastic module holder
- T568A/T568B wiring support
- Rear cable support and label area
APPLICATIONS
- Small office cabinets
- Wall-mount comms cabinets
- Mini data racks
- CCTV/IP networks
- Branch LAN distribution
Technical specification
| Parameter | TMT Declared Specification |
| Type | Cat6 UTP 12-Port Compact Patch Panel | Unloaded |
| SKU | TMT-0212UNC (legacy reference TMT-0212U) |
| Category / class | Cat6 / Class E |
| Frequency range | 1–250 MHz system application |
| Port configuration | 12 ports |
| Load type | Unloaded |
| Shielding | UTP / Unshielded |
| Panel style | Compact 12-inch / small cabinet |
| Rack / mounting | 1U height; compact 12-inch class width |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | Dependent on installed TMT keystone/module |
| Wiring scheme | Dependent on installed module |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- UL 94 V-0 polymer parts
- RoHS
- REACH
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6 UTP 12-Port Compact Patch Panel | Unloaded | TMT-0212UNC |  |
