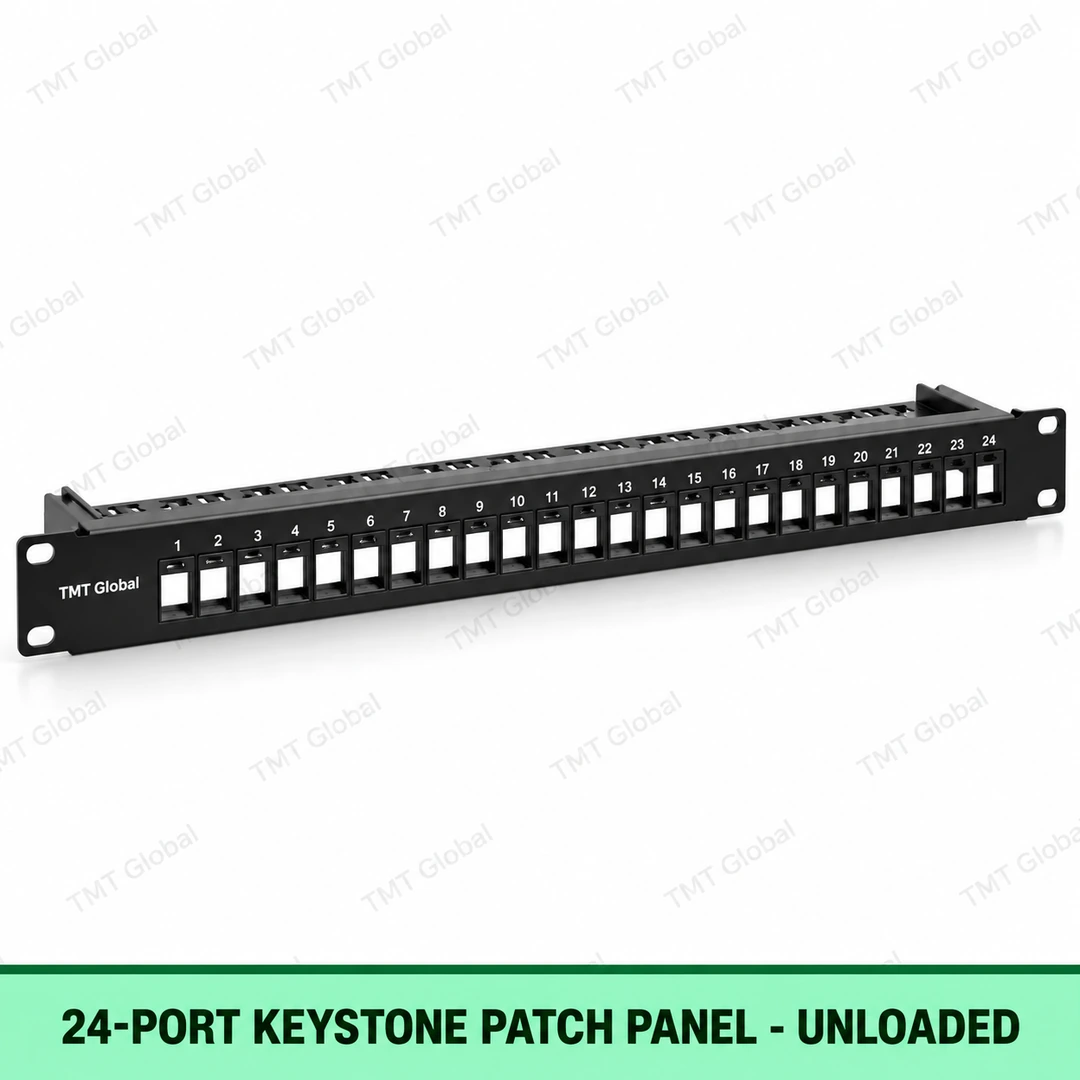

Universal 24-Port Keystone Patch Panel | Unloaded
FEATURES
- Universal 24-port keystone frame
- Accepts Cat5e/Cat6/Cat6A/Fibre adapter modules as applicable
- 19-inch 1U rack mount
- Modular snap-in format
- Rear cable management
- Easy future upgrade path
Description
TMT Global Universal 24-Port Keystone Patch Panel | Unloaded Series
Universal 24-Port Keystone Patch Panel | Unloaded is a TMT Global copper patch-panel product for mixed copper, voice or fibre adapter installations using standard keystone modules. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Universal 24-port keystone frame
- Accepts Cat5e/Cat6/Cat6A/Fibre adapter modules as applicable
- 19-inch 1U rack mount
- Modular snap-in format
- Rear cable management
- Easy future upgrade path
APPLICATIONS
- Mixed-media racks
- Moves/adds/changes
- Enterprise LAN
- AV/data systems
- Telecom rooms
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical Specification
| Parameter | TMT Declared Specification |
| Type | Universal 24-Port Keystone Patch Panel | Unloaded |
| SKU | TMT-0024UNF |
| Category / class | Universal / Module-dependent |
| Frequency range | Dependent on installed keystone module |
| Port configuration | 24 ports |
| Load type | Unloaded keystone frame |
| Shielding | Unshielded frame |
| Panel style | Flat / standard 19-inch |
| Rack / mounting | 1U, 19-inch rack mount |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | Dependent on installed TMT keystone/module |
| Wiring scheme | Dependent on installed module |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Universal 24-Port Keystone Patch Panel | Unloaded | TMT-0024UNF |  |
