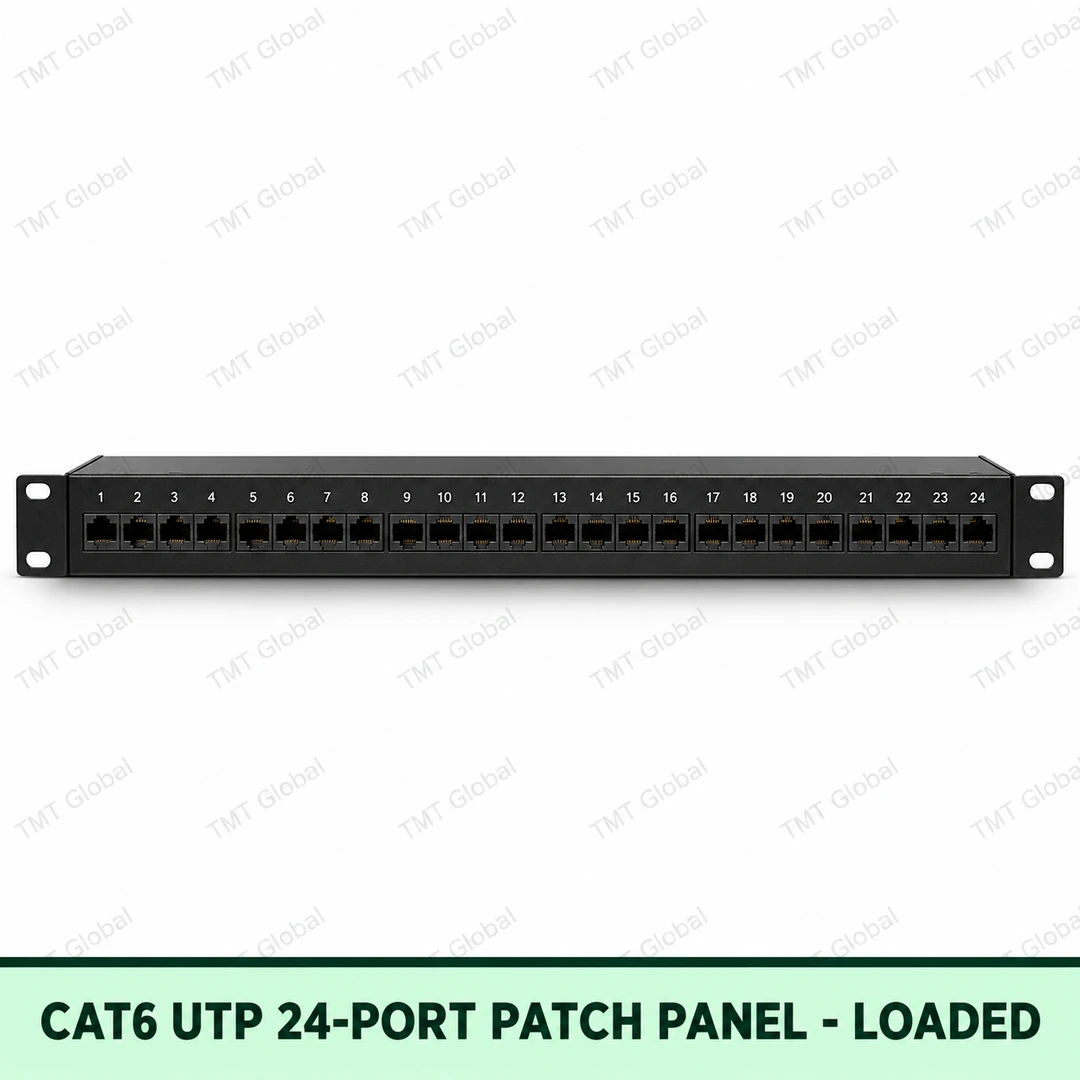

Cat6 UTP 24-Port Patch Panel | Loaded
FEATURES
- Factory-loaded 24-port RJ45 panel
- Cat6/Class E component target
- 110/IDC termination blocks
- T568A/T568B wiring labels
- Rear cable manager supplied
- Port numbering and label strip
Description
TMT Global Cat6 UTP 24-Port Patch Panel | Loaded Series
Cat6 UTP 24-Port Patch Panel | Loaded is a TMT Global copper patch-panel product for fixed Cat6 termination in standard rack environments. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Factory-loaded 24-port RJ45 panel
- Cat6/Class E component target
- 110/IDC termination blocks
- T568A/T568B wiring labels
- Rear cable manager supplied
- Port numbering and label strip
APPLICATIONS
- Enterprise LAN
- Commercial buildings
- Telecom rooms
- IP CCTV
- Education and healthcare
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical specification
| Parameter | TMT Declared Specification |
| Type | Cat6 UTP 24-Port Patch Panel | Loaded |
| SKU | TMT-0224LNF |
| Category / class | Cat6 / Class E |
| Frequency range | 1–250 MHz |
| Port configuration | 24 ports |
| Load type | Loaded RJ45 / IDC |
| Shielding | UTP / Unshielded |
| Panel style | Flat / standard 19-inch |
| Rack / mounting | 1U, 19-inch rack mount |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | 22–26 AWG solid copper; stranded where supported by IDC design |
| Wiring scheme | T568A / T568B colour-coded termination |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6 UTP 24-Port Patch Panel | Loaded | TMT-0224LNF |  |
