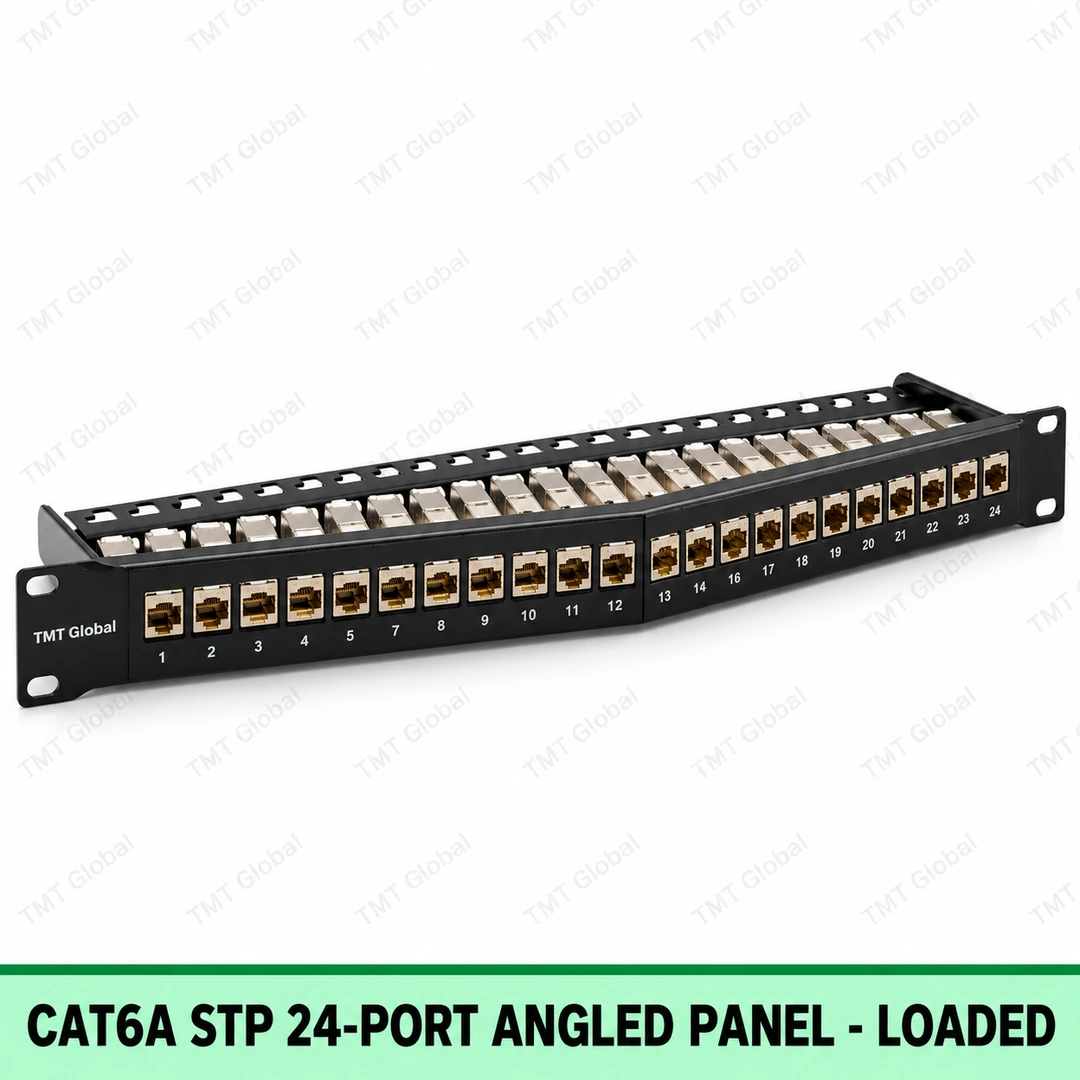

Cat6A STP 24-Port Angled Patch Panel | Loaded
FEATURES
- Loaded shielded angled Cat6A panel
- Class EA target to 500 MHz
- 360° shield continuity
- Side routing to vertical managers
- Grounding point
- Rear cable support
Description
TMT Global Cat6A STP 24-Port Angled Patch Panel | Loaded Series
Cat6A STP 24-Port Angled Patch Panel | Loaded is a TMT Global copper patch-panel product for loaded shielded Cat6A 10G patching with angled cable presentation. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Loaded shielded angled Cat6A panel
- Class EA target to 500 MHz
- 360° shield continuity
- Side routing to vertical managers
- Grounding point
- Rear cable support
APPLICATIONS
- 10G shielded data centres
- Industrial LAN
- High-EMI racks
- Security/control systems
- Transport networks
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- Class EA / 10GBASE-T application target
- Grounding/earthing continuity for shielded systems
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical Specification
| Parameter | TMT Declared Specification |
| Type | Cat6A STP 24-Port Angled Patch Panel | Loaded |
| SKU | TMT-0324LSA |
| Category / class | Cat6A / Class EA |
| Frequency range | 1–500 MHz |
| Port configuration | 24 ports |
| Load type | Loaded shielded RJ45 / IDC |
| Shielding | STP / Shielded |
| Panel style | Angled / shielded |
| Rack / mounting | 1U, 19-inch rack mount |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | 22–26 AWG solid copper; stranded where supported by IDC design |
| Wiring scheme | T568A / T568B colour-coded termination |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6A STP 24-Port Angled Patch Panel | Loaded | TMT-0324LSA |  |
