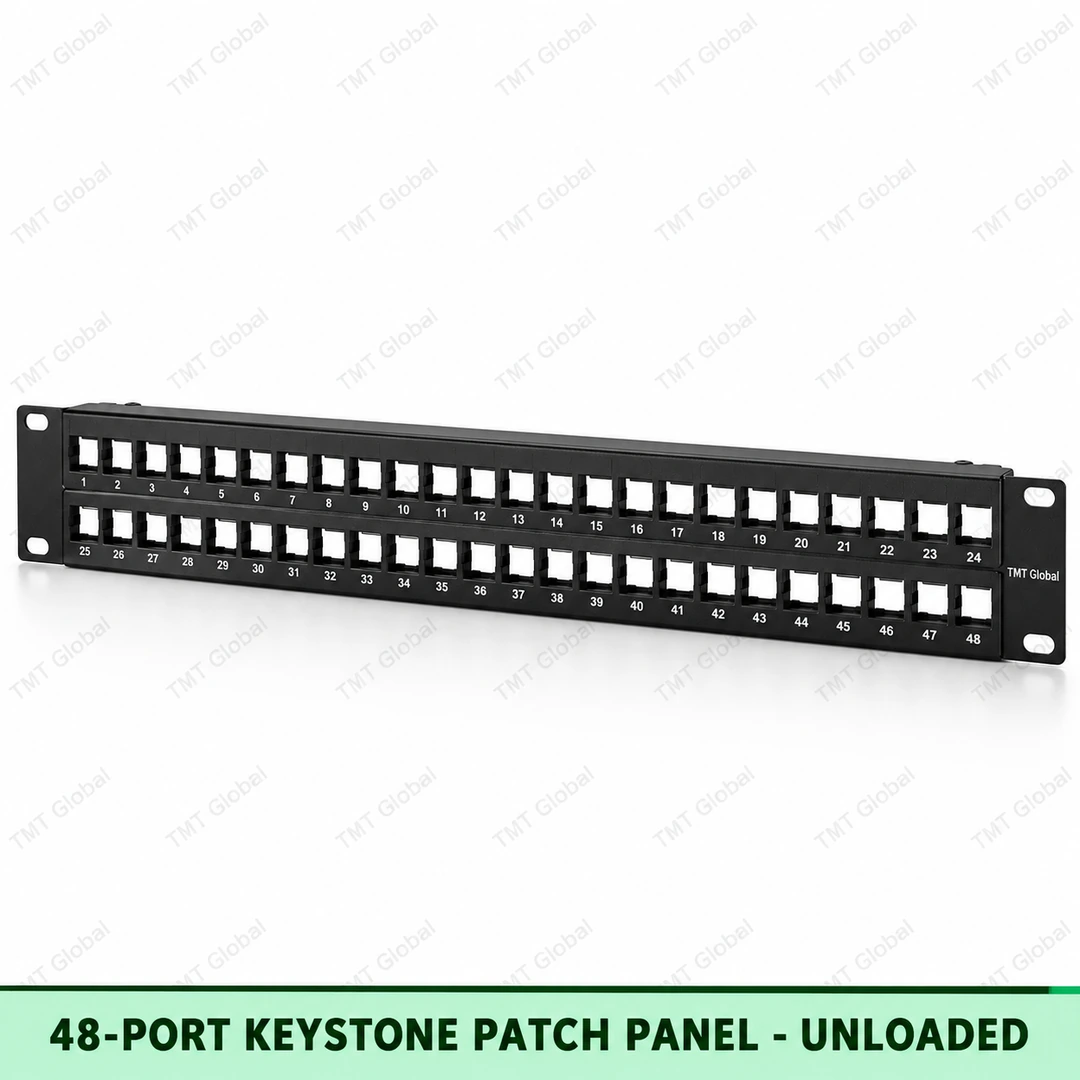

Universal 48-Port Keystone Patch Panel | Unloaded
FEATURES
- Universal 48-port keystone frame
- 2U 19-inch rack mount
- Supports mixed module types
- Rear cable support
- Port numbering and labels
- Future-proof modular design
Description
TMT Global Universal 48-Port Keystone Patch Panel | Unloaded Series
Universal 48-Port Keystone Patch Panel | Unloaded is a TMT Global copper patch-panel product for larger mixed-media installations requiring high capacity and flexibility. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Universal 48-port keystone frame
- 2U 19-inch rack mount
- Supports mixed module types
- Rear cable support
- Port numbering and labels
- Future-proof modular design
APPLICATIONS
- Data centres
- Enterprise telecom rooms
- Campus networks
- Mixed-media racks
- High port-count projects
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical Specification
| Parameter | TMT Declared Specification |
| Type | Universal 48-Port Keystone Patch Panel | Unloaded |
| SKU | TMT-0048UNF |
| Category / class | Universal / Module-dependent |
| Frequency range | Dependent on installed keystone module |
| Port configuration | 48 ports |
| Load type | Unloaded keystone frame |
| Shielding | Unshielded frame |
| Panel style | Flat / 19-inch high capacity |
| Rack / mounting | 2U, 19-inch rack mount |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | Dependent on installed TMT keystone/module |
| Wiring scheme | Dependent on installed module |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Universal 48-Port Keystone Patch Panel | Unloaded | TMT-0048UNF |  |
