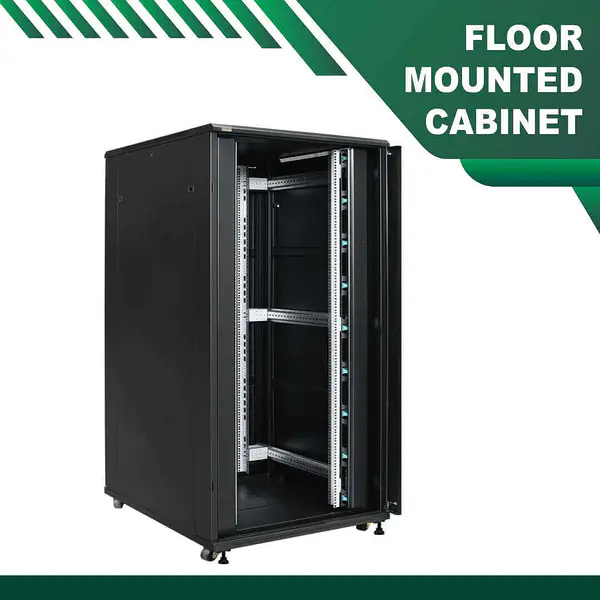

TMT GLOBAL 22U Cabinet floor Mounted 800 x 600 mm
TMT GLOBAL Cabinet / Racks Manufactured from 1.5mm cold rolled carton sheet coated with polyester powered structure paint. With welded steel frame and gland plates at the top and bottom for cable entry. Two pairs of fully adjustable 2mm 19” profile With universal punching are fitted in every enclosure Wall mounting holes at the rear for server cabinet 22u easy mounting.22U Cabinet floor Mounted 800 x 600 mm TMT GLOBAL cabinet/racks is designed for indoor wall mounted & Floor Standing using, cold-roll steel, with Vertical Cable Manager trays for
cable distribution and management.
Features
Solid steel construction.
Available on flush, wall mounted and floor standing.
Adjustable 19” mount.
Mechanical open / close lock.
Lock handle.
Inner mount plate with grid mount.
Top and bottom panel cable entry.
Ventilation holes on front panel.
Cabinet can be fitted with 1U patch panel.
Embedded grounding copper coated stud bolts.
Application
Telecommunications,
Fiber to the home (FTTH)
Server Room
Data center ,
LAN / WAN, CATV
IPTV
CCTV
Specifications
- Material: Solid steel construction
- Coating: Polyester powered structure paint.
- Housing thickness: 1.5mm
- Front Door: 3mm tempered glass reinforced and metal panel
- Rear Plate: Fixed
- Side panels: Quick release removable side panels.
- Ventilation: Grill cut outs provide on front sides.
- Rating: IP 20
- Color: As per Requirement
- Durability: Lifetime
- Packing: Supplied assembled, unassembled
- Weight: XX
