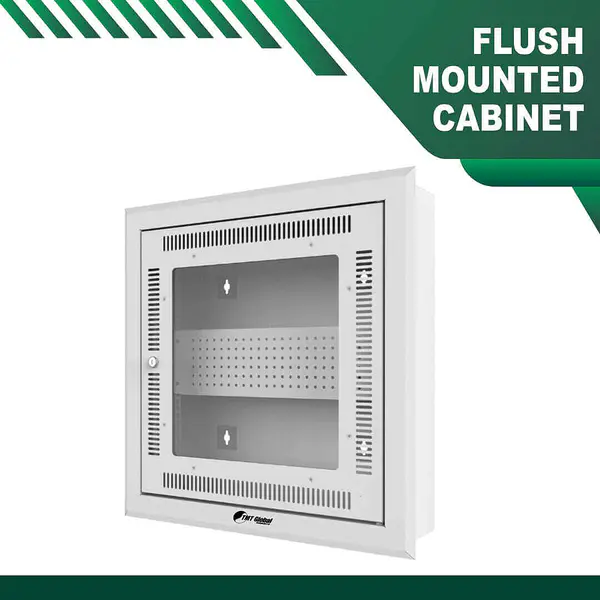

12U Cabinet ONU Flush Mounted 450x150mm

$123.50

General Specification
Material : Solid steel construction
Coating : Polyester powered structure paint
Housing thickness :1.5mm
Front Door : 3mm tempered glass reinforced and metal panel
Rear Plate : Fixed
Side panels :Quick release removable side panels.
Rating : IP 20
Durability : Lifetime
Colour : As per Requirement
Packing : Supplied assembled, unassembled
Products ID : TMT-12UHBFW

Description

TMT GLOBAL 12U Cabinet ONU Flush Mounted 450x150mm

TMT GLOBAL Cabinets/Racks are manufactured from 1.5mm cold-rolled carbon steel sheet coated with polyester powder paint. They feature a welded steel frame and gland plates at the top and bottom for cable entry. Two pairs of fully adjustable 2mm 19” profiles with universal punching are fitted in every enclosure. Wall mounting holes at the rear allow for easy mounting. The 12U Cabinet ONU Flush Mounted 450x150mm TMT GLOBAL cabinet/racks are designed for indoor wall mounting and floor standing use, utilizing cold-rolled steel, with vertical cable management trays for cable distribution and management.

Features
Solid steel construction.
Available on flush, wall mounted and floor standing.
Adjustable 19” mount.
Mechanical open / close lock.
Lock handle.
Inner mount plate with grid mount.
Top and bottom panel cable entry.
Ventilation holes on front panel.
Cabinet can be fitted with 1U patch panel.
Embedded grounding copper coated stud bolts.

Application
Telecommunications,
Fiber to the home (FTTH)
Server Room
Data center ,
LAN / WAN, CATV
IPTV
CCTV

Specifications

  • Material: Solid steel construction
  • Coating: Polyester powered structure paint.
  • Housing thickness: 1.5mm
  • Front Door: 3mm tempered glass reinforced  and  metal panel
  • Rear Plate: Fixed
  • Side panels: Quick release removable side panels.
  • Ventilation: Grill cut outs provide on front sides.
  • Rating: IP 20
  • Color: As per Requirement
  • Durability: Lifetime
  • Packing: Supplied assembled, unassembled
  • Weight: XX
