12 core fiber optic cable armored multimode om2 indoor outdoor
$0.00
General Specification
Products : Multi Mode Fiber Optic cable
Fiber Count : 12
Fiber Type : 50/125 OM2
Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM)Â : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product IDÂ : TMT-122LPK
TMT GLOBAL 12 core fiber optic cable armored multimode om2 indoor outdoor
TMT GLOBAL 12 core fiber optic cable armored multimode om2 indoor outdoor provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, multimode fiber optic cable indooroutdoor fiber patch panel fiber optic cables preterminated fiber optic cable indooroutdoor our communications optical fiber cable products can easily meet complex application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard.

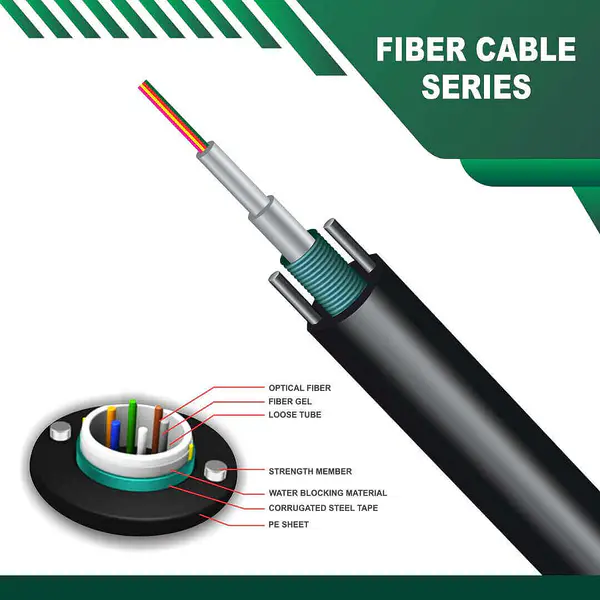

| PHYSICAL DESCRIPTION | |
| Products | multimode Fiber optic cable |
| Tube Filling Compound | Thixotropic jelly |
| Fiber Type | 50/125 OM2 |
| Tube material | PBT ( Polybutylene Terephthalate) |
| Armored | Corrugated steel tape |
| Packing Detail | |
| Fiber Count | 6,8,12,24, |
| Tube Outer/Inner Diameter(mm) | 3.0/2.0 ± |
| Cable Diameter(mm) | 7.2*-12 |
| Cable Weight(kg/km) | 45± |
| Length/ Drum | 2000 m Drum ±5% |
| Ripcord | Polyester cord |
| Outer Jacket | PE,MDPE, LSZH |
| Mechanical and Environmental Properties | |||
| Physical tests | Value | Standard | |
| Tensile Strength | 2700 N (during Installation)
1700 N (during Operation) |
IEC 60794-1-E1 | |
| Impact Resistance | 10J, 3 impacts | IEC 60794-1-E4 | |
| Crush Resistance | 220 N/cm | IEC 60794-1-E3 | |
| Temperature Cycling | -40 to +70 °C | IEC 60794-1-F1 | |
| Flame Retardancy | According to IEC 60332-3 | IEC 60332-3 | |
| Cable Bending Radius | |||
| Bend Radius (during installation) | 20x cable diameter | IEC 60794-1-2-E11A | |
| Bend Radius (during Service) | 10x cable diameter | IEC 60794-1-E11 | |
| Repeating Bending | 20x cable diameter | IEC 60794-1-E6 | |
| Temperature Range) | |||
| Operation Temperature | -40 to +70 C | IEC 60794-1-2-F1 | |
| Storage and Transportation Temperature | -40 to +70 C | ||
| Installation Temperature | -30 to +60 C | ||
| Optical Characteristics | ||||
| Fiber type | 50/125 μm MM OM2 | 50/125 μm MM OM3 | 50/125 μm MM OM4 | |
| Attenuation (max) | 850 nm | 3.5 dB/km | 3.5 dB/km | 3.5 dB/km |
| 1300 nm | Â 1.5 dB/km | 1.5 dB/km | 1.5 dB/km | |
| Bandwidth (Laser EMB) | 850 nm | 2000 MHz.km | 2000 MHz.km | |
| 1300 nm | 500 MHz.km | 500 MHz.km | ||
| Bandwidth (Overfilled) | 850 nm | 700 MHz.km | 1500 MHz.km | 3500 MHz.km |
| 1300 nm | 500 MHz.km | 500 MHz.km | 500 MHz.km | |
| Numerical Aperture | 0.200±0.015 | 0.2±0.015 | 0.2±0.015 | |
| Core Diameter | 50 ± 2 μm | 50 ± 2 μm | 50 ± 2 μm | |
| Cladding Diameter | 125 ± 1μm | 125 ± 1μm | 125 ± 1μm | |
| Core/Clad Concentricity error | ≤ 1 μm | ≤ 1 μm | ≤ 1 μm | |
| Cladding non-circularity | ≤ 0.7 % | ≤ 0.7 % | ≤ 0.7 % | |
| Coating Diameter | 242 ± 5 μm | 242 ± 5 μm | 242 ± 5 μm | |
| Proof Test | ≥ 100kpsi or 0.7GPa | ≥ 100kpsi or 0.7GPa | ≥ 100kpsi or 0.7GPa | |
| Ordering Information | ||
| Model no | Products ID | Description |
| TMT-3200 | TMT-062LPK | 6 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
| TMT-3201 | TMT-082LPK | 8 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
| TMT-3202 | TMT-122LPK | 12 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
| TMT-3203 | TMT-242LPK | 24 CORE MULTIMODEÂ INDOOR/OUTDOOR ARMOUREDÂ FIBER OPTIC CABLE OM2 |
