Name: Fiber Optic Cable OM2 6 Core Multimode Indoor-Outdoor -tmt
Brand: TMT GLOBAL
SKU: TMT-062LDK
Price: 2.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Fiber Optic Cable OM2 6 Core Multimode Indoor-Outdoor

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

$2.00

General Specification
Products : Multi Mode Fiber Optic cable
Fiber Count : 6
Fiber Type : 50/125 OM2
Armored : N
Outer Jacket : PE
Attenuation (max/KM) : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID : TMT-062LDK

TMT Global Fiber Fiber Optic Cable OM2 6 Core Multimode Indoor-Outdoor

TMT GLOBAL provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard.Fiber Optic Cable OM2 6 Core Multimode Indoor-Outdoor

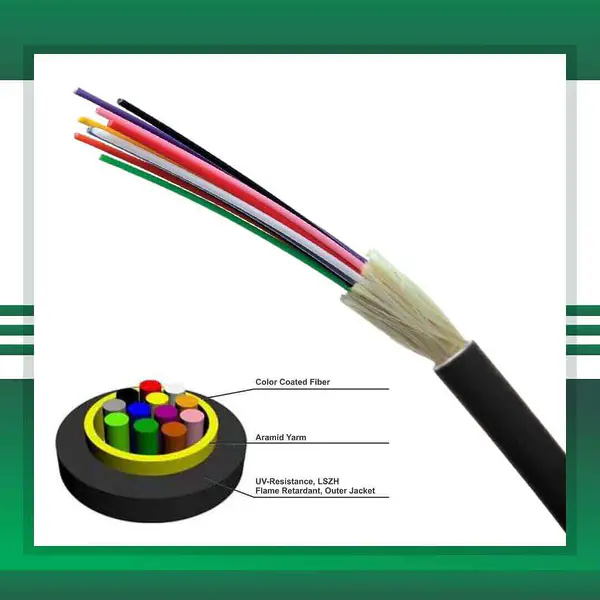

PHYSICAL DESCRIPTION

Products: multi mode Fiber optic cable
Tube Filling Compound: Thixotropic jelly /N
Fiber Type: 50/125 OM2
Tube material: PBT ( Polybutylene Terephthalate)
Armored: N
Packing Detail
Fiber Count: 6,8,12,24,
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 4.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH

Mechanical and Environmental Properties

Physical tests Value Standard

Tensile Strength 2700 N (During Installation) IEC 60794-1-E1

1700 N (During Operation)

Impact Resistance 10J, 3 impacts IEC 60794-1-E4

Crush Resistance 220 N/cm IEC 60794-1-E3

Temperature Cycling -40 to +70 °C IEC 60794-1-F1

Flame Retardancy According to IEC 60332-3 IEC 60332-3

Cable Bending Radius

Bend Radius (during installation) 20x Cable Diameter IEC 60794-1-2-E11A

Bend Radius (during Service) 1 0x Cable Diameter IEC 60794-1-E11

Repeating Bending 20x Cable Diameter IEC 60794-1-E6

Temperature Range)

Operation Temperature -40 to +70 C IEC 60794-1-2-F1

Storage and Transportation Temperature -40 to +70 C

Installation Temperature -30 to +60 C

Optical Characteristics

Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa

item name: Fiber Optic Cable Multimode Indoor-Outdoor Armored OM2 6Core
