CAT8 S/FTP LSZH Network Cable 23 AWG 4 Pair 305 m – 8X539BLX Series

Explore TMT Global’s Cat8 S/FTP LSZH network cable, a cutting-edge solution for high-speed data transfer. With its durable 23 AWG construction and innovative S/FTP design, this cable minimizes interference and ensures a stable connection, making it ideal for data centers, enterprise networks, and high-speed residential setups. The 305-meter length and Low Smoke Zero Halogen (LSZH) properties enhance safety during indoor installations. Choose TMT Global’s Cat8 cable for unmatched performance and reliability in your networking needs, as it meets the increasing demands for high-performance data transfer. Discover the features that set this cable apart in the competitive landscape of networking technology.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-700 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-700 MHz
Insulation Resistance: 45 nS/100m max @ 1-700 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-700 MHz

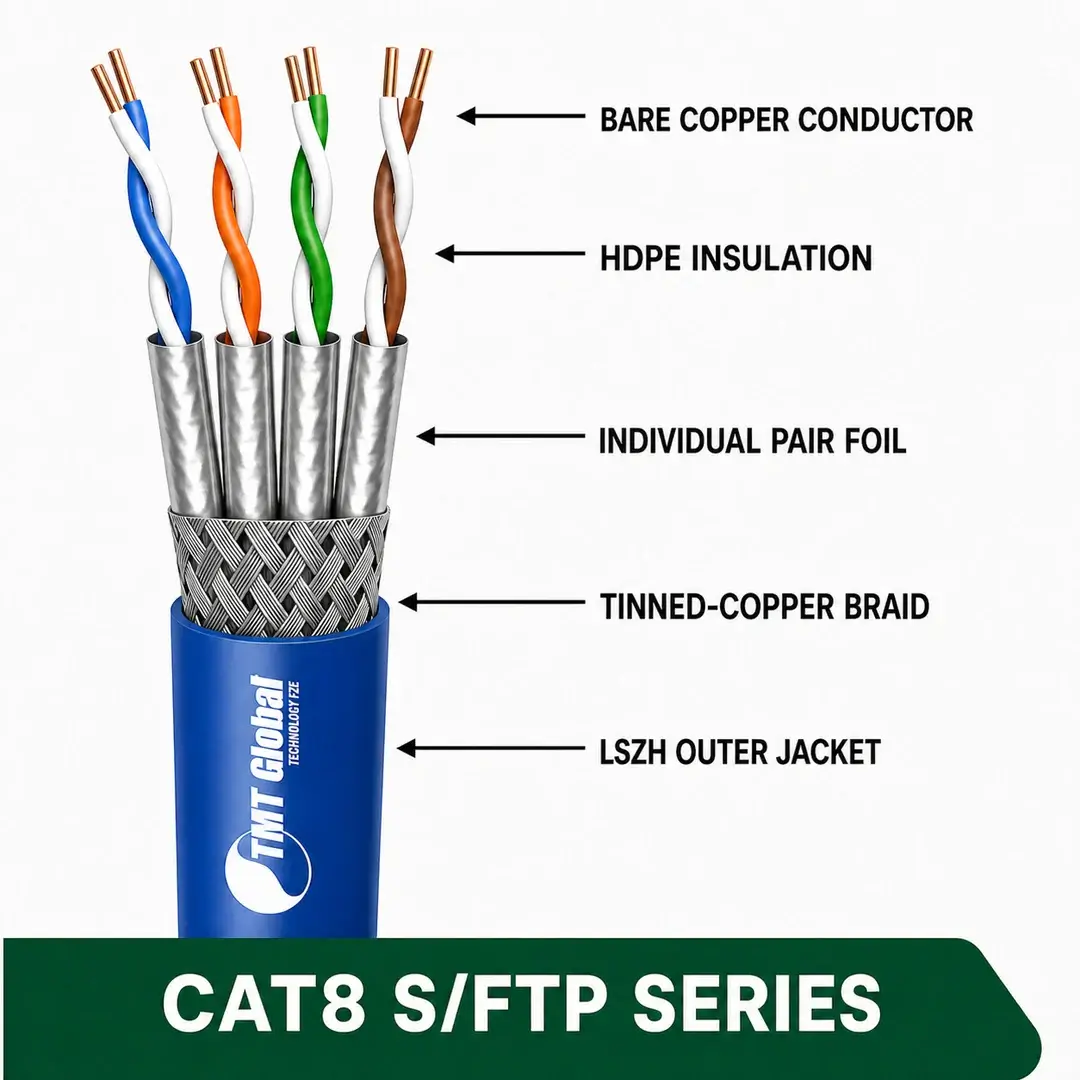

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Braided Shield + aluminum Foil Polyester Tape
Drain wire: copper conductor
Outer Jacket: LSZH
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8-12 xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT8 S/FTP LSZH Network Cable 23 AWG 4 Pair 305 m – 8X539BLX Series
