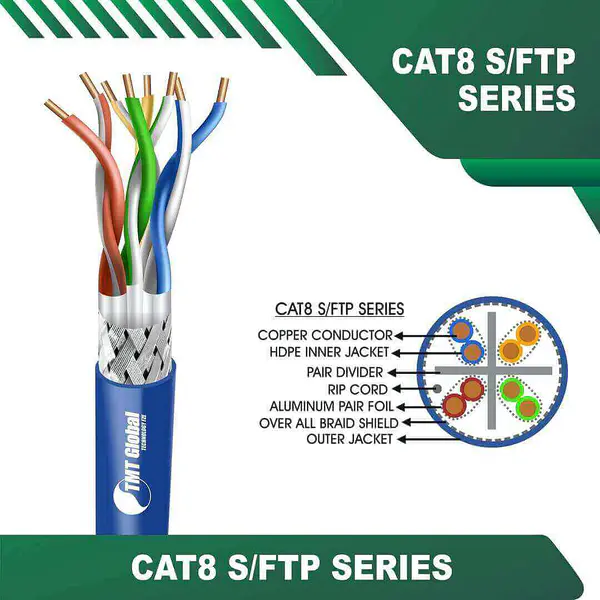

cat 8 ethernet cable 23AWG S-FTP LAN Cable 305M

$200.00

General Specification:

Conductor: Bare Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Outer Jacket: LS0H Halogen free flame retardant
Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellow/Violet/Red
Packing: 305m
Item Code: 8X137BLB

Color

Aqua

,

Black

,

Blue

,

Green

,

Grey

,

Orange

,

Red

,

violet

,

White

,

Yellow

Length

305M

Description

TMT Global  23AWG CAT8 S/FTP LAN Cable 305M

FAHAD CABLES cat 8 ethernet cable 23AWG S-FTP LAN Cable 305M are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.cat 8 ethernet cable centers and server rooms cat 6 vs cat cat 8 ethernet cable cat8 cables higher data cables support data transmission data transfer supports bandwidth gold plates cat8 ethernet cable rj45 connector 40 gbps. cat 8 ethernet cable 23AWG S-FTP LAN Cable 305M

Fahad Cables Industries FZE is one of the most Reputable Manufacturers of Network cables in the Middle East. Providing a Happier, Richer Future through Providing Solutions for copper range cat3,cat5e,cat6,cat6a,cat7 and cat8 networking cables Coaxial Cables Automation Cables Industrial and Building Automation Cables data patch cords fiber patch cord pigtails and optical communication for the past 20 Years.  cat8Founded an ultra high-speed multimedia world with  full flash production facility in Sharjah Hamriya Free Zone (United Arab Emirates) to facilitate you throughout the telecommunication world.

PHYSICAL AND MECHANICAL PROPERTIES

Basic Conductor: 23AWG TMT Copper
Insulation: HDPE
Number of insulated conductors: 8 twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: LSZH
Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 100 N MAX
Short Term Bend Radius: 6xOD (Mm)
Storage Temperature: -20 To +80C
Temperature operating range: -20 to +60C
Installation temperature range: 0 to +50C
Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS

  • Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
  • DC Resistance: 93 Ohm/Km max.
  • Resistance unbalance: 2% max.
  • Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
  • Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
  • Voltage rating: 72 Vdc max.
  • Dielectric strength: 1500 Volts/1 minute min rms
  • Velocity of Propagation (NVP): 67-69%
  • Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
  • Coupling attenuation: IEC 61156-5 TYPE III
Specification PDF

Specification PDF

Download

Download

admin cat 8 ethernet cable 23AWG S-FTP LAN Cable 305M

Packing

Packing

box - reel -305m / Wooden /Plastic reel
