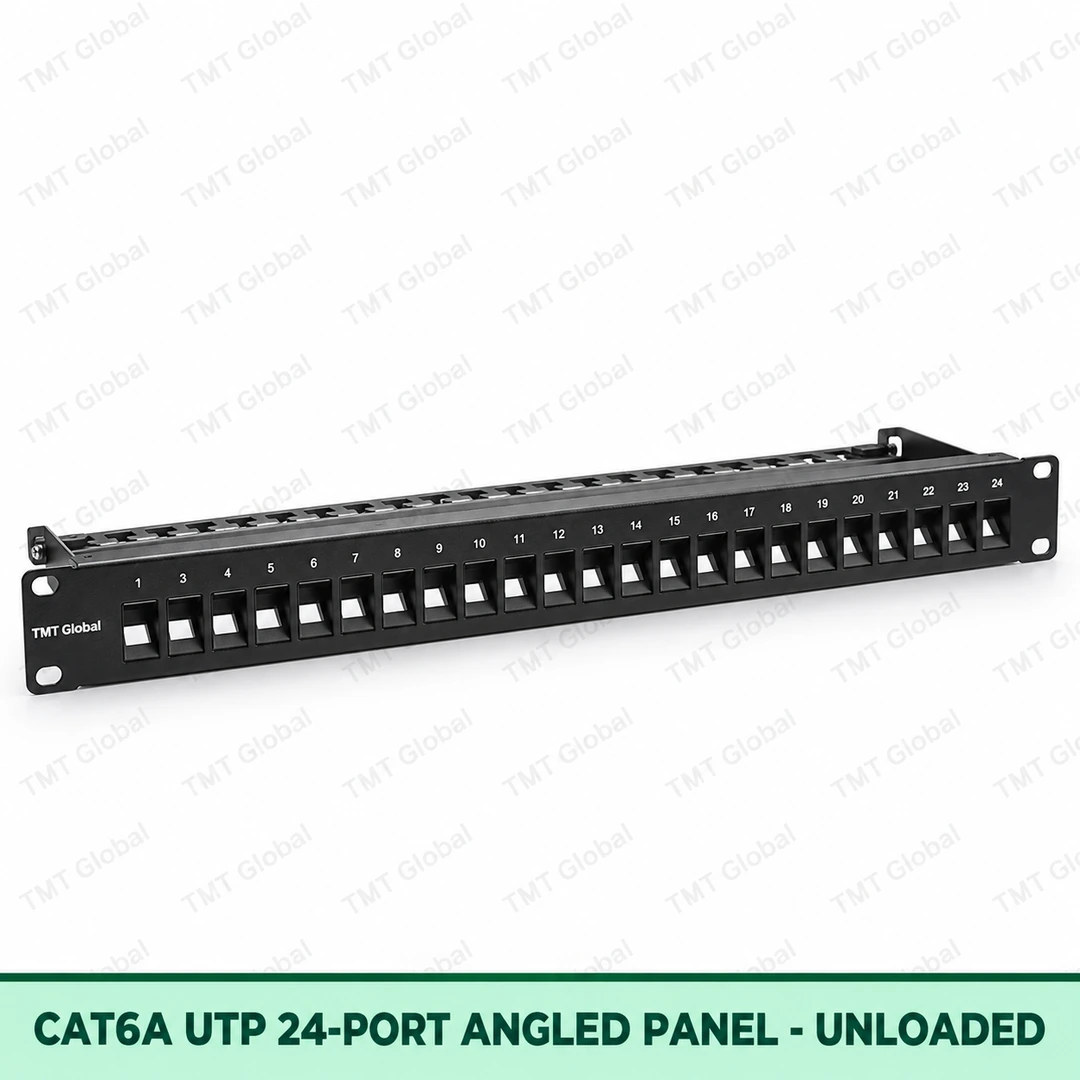

Cat6A UTP 24-Port Angled Patch Panel | Unloaded
FEATURES
- Angled 24-port Cat6A frame
- Accepts Cat6A UTP keystone modules
- Routes patch cords to side managers
- Protects bend radius
- 1U 19-inch rack mount
- Rear cable support
Description
TMT Global Cat6A UTP 24-Port Angled Patch Panel | Unloaded Series
Cat6A UTP 24-Port Angled Patch Panel | Unloaded is a TMT Global copper patch-panel product for angled Cat6A modular patching to improve cable routing and bend management. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Angled 24-port Cat6A frame
- Accepts Cat6A UTP keystone modules
- Routes patch cords to side managers
- Protects bend radius
- 1U 19-inch rack mount
- Rear cable support
APPLICATIONS
- Data centres
- High-density cabinets
- 10G enterprise LAN
- Telecom rooms
- Rack-space optimization
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- Class EA / 10GBASE-T application target
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical Specification
| Parameter | TMT Declared Specification |
| Type | Cat6A UTP 24-Port Angled Patch Panel | Unloaded |
| SKU | TMT-0324UNA |
| Category / class | Cat6A / Class EA |
| Frequency range | 1–500 MHz system application |
| Port configuration | 24 ports |
| Load type | Unloaded |
| Shielding | UTP / Unshielded |
| Panel style | Angled / standard 19-inch |
| Rack / mounting | 1U, 19-inch rack mount |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | Dependent on installed TMT keystone/module |
| Wiring scheme | Dependent on installed module |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6A UTP 24-Port Angled Patch Panel | Unloaded | TMT-0324UNA |  |
