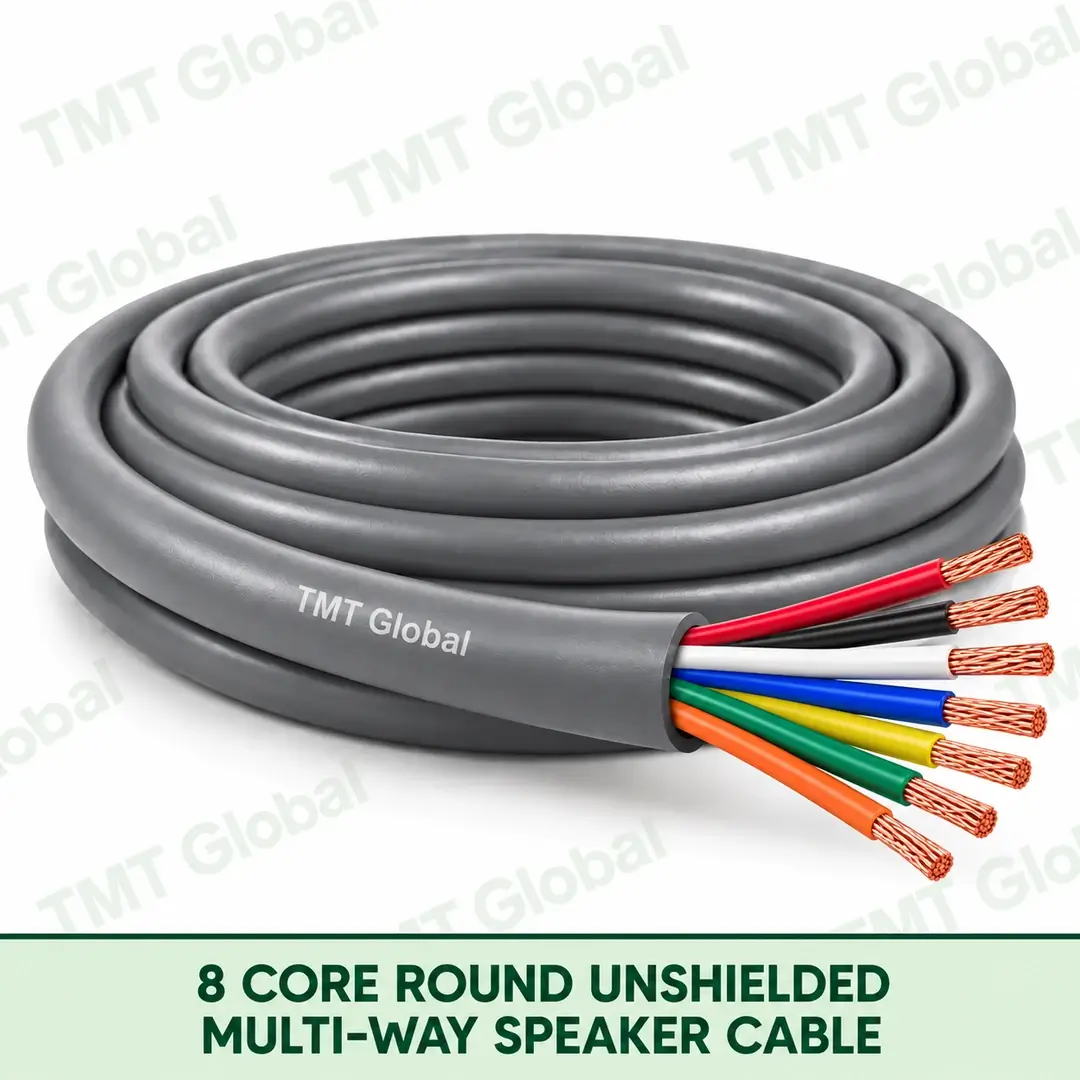

8 Core Round Unshielded Multi-Way Speaker Cable
KEY FEATURES
- 8 individually identified flexible conductors
- Supports grouped loudspeaker and multi-way routing
- 14, 16, 18, 20 and 22 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Unshielded construction for speaker-level circuits
- Exact searchable item codes for standard and project variants
Description
TMT Global 8 Core Round Unshielded Speaker Cable Multi-Way Series
TMT Global 8 Core Round Unshielded Multi-Way Speaker Cable is a high-channel-count family for bi-amp, tri-amp, multi-way loudspeaker connections and grouped audio-zone routing. The page fixes the eight-core round unshielded construction and presents exact AWG and jacket combinations as searchable Series SKUs.
KEY FEATURES
- 8 individually identified flexible conductors
- Supports grouped loudspeaker and multi-way routing
- 14, 16, 18, 20 and 22 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Unshielded construction for speaker-level circuits
- Exact searchable item codes for standard and project variants
TYPICAL APPLICATIONS
- Bi-amp and tri-amp loudspeaker connections
- Multi-zone commercial audio distribution
- Stage, theatre and venue audio systems
- Complex home cinema speaker routes
- OEM audio racks and integrated loudspeaker systems
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Multi-way / multi-zone round speaker cable |
| Core configuration | 8 individually identified flexible conductors |
| Conductor material | Bare copper |
| Conductor construction | Flexible high-strand speaker conductor |
| Available conductor sizes | 14 / 16 / 18 / 20 / 22 AWG |
| Core identification | Eight individually colour-identified insulated conductors |
| Screening | Unshielded — no metallic screen |
| Drain wire | Not applicable |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey indoor / Black outdoor |
| Typical use | Bi-amp, tri-amp, multi-way and grouped speaker-zone routing |
| Installation environment | Indoor; outdoor routes with PE Outdoor Series variants |
| Package length | 305 m standard TMT package |
AWG / NOMINAL AREA MATRIX
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 14 AWG | 2.08 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 20 AWG | 0.518 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PE Outdoor • 305 m |
Additional information
| AWG | 14 awg, 16 awg, 18 awg, 20 awg, 22 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 14 awg | PVC | Grey | 305 m |  | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 14 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 14 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 16 awg | PVC | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 16 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 16 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 18 awg | PVC | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 18 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 18 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 20 awg | PVC | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 20 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 20 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 22 awg | PVC | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 22 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Unshielded Multi-Way Speaker Cable | 08UR-SR | 22 awg | PE Outdoor | Black | 305 m | |
