8 Core Round Foil Shielded Commercial Speaker Cable
KEY FEATURES
- 8 individually identified flexible conductors
- Overall foil screen with tinned-copper drain wire
- 16, 18, 20 and 22 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Screened high-count commercial-audio construction
- Exact searchable item codes for all approved variants
Description

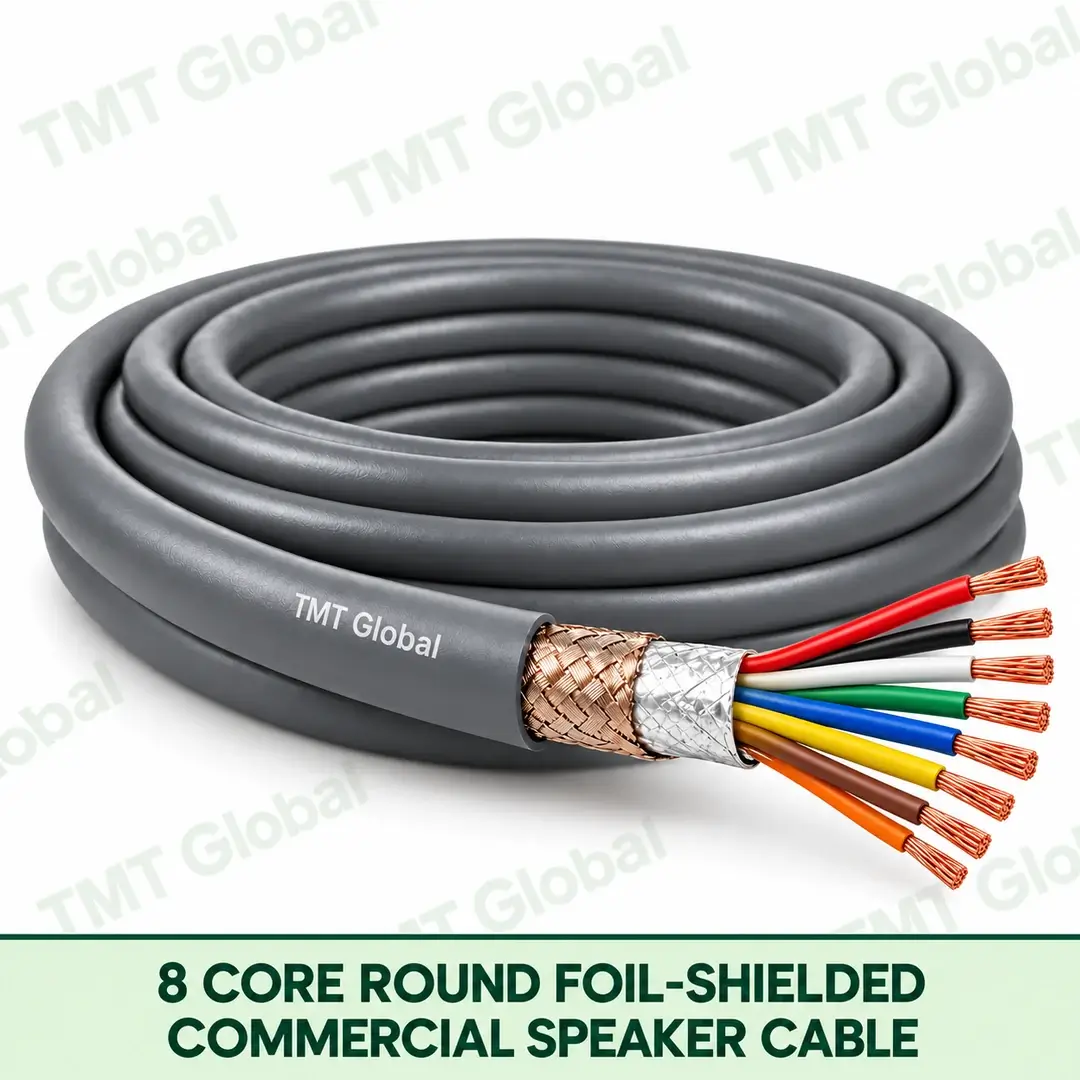

8 Core Round Foil Shielded Commercial Speaker Cable
TMT Global 8 Core Round Foil Shielded Commercial Speaker Cable is a high-channel-count screened family for multi-zone audio, intercom / PA, complex speaker routing and electrically noisy commercial installations. The eight-core foil-screened construction defines the product page, with exact AWG and jacket Series rows underneath.
KEY FEATURES
- 8 individually identified flexible conductors
- Overall foil screen with tinned-copper drain wire
- 16, 18, 20 and 22 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Screened high-count commercial-audio construction
- Exact searchable item codes for all approved variants
TYPICAL APPLICATIONS
- Multi-zone commercial audio distribution
- Intercom and paging system trunk routes
- Complex venue and public-building AV systems
- Industrial sound and announcement systems
- OEM racks and integrated multi-channel audio
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Foil-shielded multi-zone commercial speaker cable |
| Core configuration | 8 individually identified flexible conductors |
| Conductor material | Bare copper |
| Conductor construction | Flexible high-strand speaker conductor |
| Available conductor sizes | 16 / 18 / 20 / 22 AWG |
| Core identification | Eight individually colour-identified insulated conductors |
| Screening | Overall aluminium/polyester foil screen |
| Drain wire | Tinned-copper drain wire for screen continuity |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey indoor / Black outdoor |
| Typical use | Multi-zone audio, paging, intercom and complex commercial speaker routes |
| Installation environment | Indoor; outdoor routes with PE Outdoor Series variants |
| Package length | 305 m standard TMT package |
AWG / NOMINAL AREA MATRIX
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • Foil + drain • 305 m |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • Foil + drain • 305 m |
| 20 AWG | 0.518 mm² | PVC / LSZH / PE Outdoor • Foil + drain • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH / PE Outdoor • Foil + drain • 305 m |
Additional information
| AWG | 16 awg, 18 awg, 20 awg, 22 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 16 awg | PVC | Grey | 305 m |  | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 16 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 16 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 18 awg | PVC | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 18 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 18 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 20 awg | PVC | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 20 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 20 awg | PE Outdoor | Black | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 22 awg | PVC | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 22 awg | LSZH | Grey | 305 m | | |
| 8 Core Round Foil Shielded Commercial Speaker Cable | 08SR-SR | 22 awg | PE Outdoor | Black | 305 m | |
