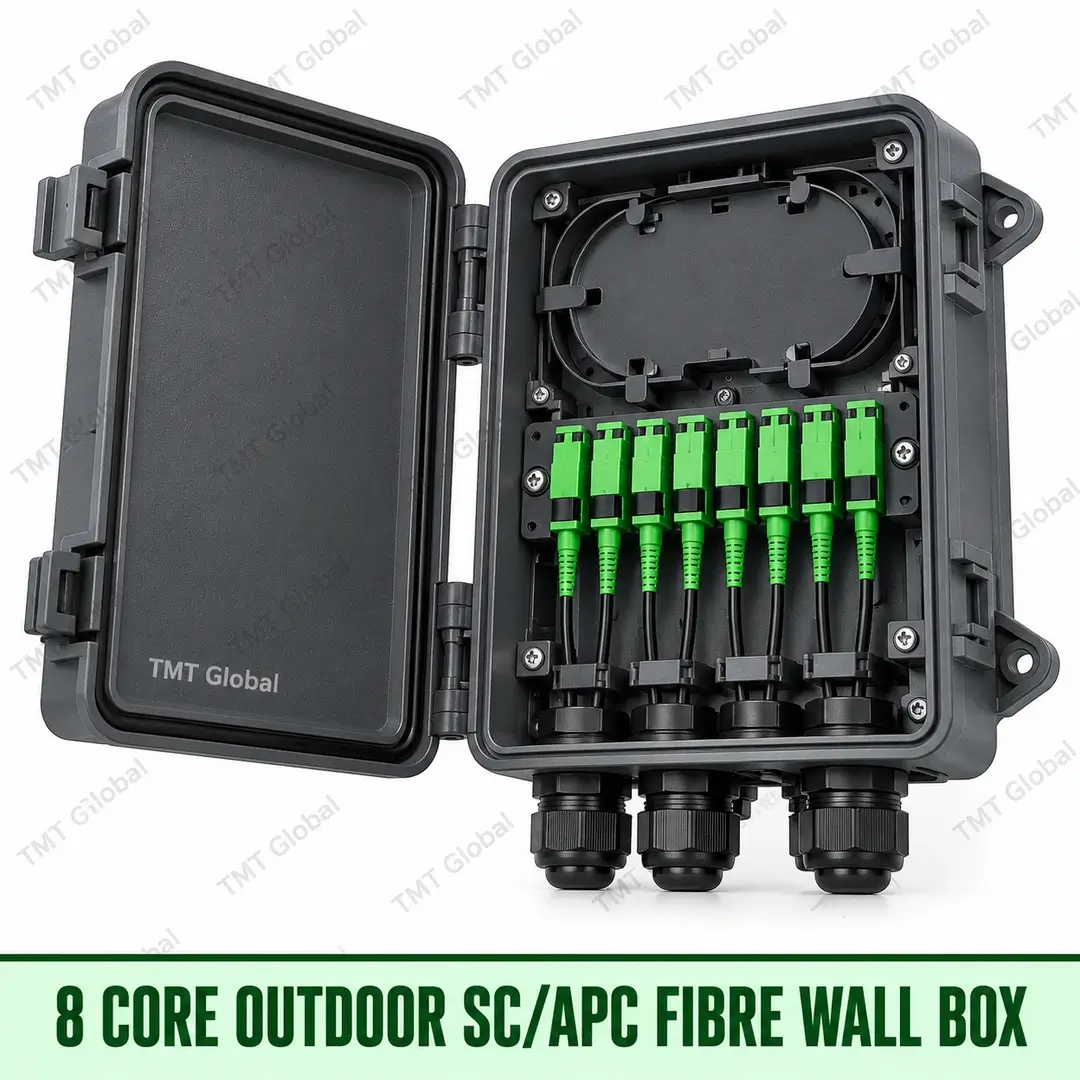

8 Core Outdoor Weatherproof Fibre Wall Box – SC/APC

Choosing the 8 Core Outdoor Weatherproof Fibre Wall Box – SC/APC

Size a fibre wall box by fibre count first, then by the adapter interface (SC or LC) your patch cords use and whether splices will be stored inside. Indoor boxes suit telecom rooms and risers; use a weatherproof type where the box is exposed.

• Fibre capacity: 8 fibres / 12 fibres / 16 fibres / 24 fibres
• Connector: SC/APC / LC/UPC
• Loading: Adapter loaded / Fully loaded
• Installation: Outdoor wall / pole

Related options in this range: 8 Core FTTH Splitter-Ready Wall Box – 1×4 · 12 Core Standard Indoor Fibre Wall Box – SC/UPC · 12 Core Metal Wall-Mount Fibre Box – SC · 8 Core Compact Indoor Fibre Wall Box – SC/UPC

Order code: TMT-FWB-OW01. Send us the quantity and configuration for a project quotation and datasheet.

TMT Global 8 Core Outdoor Weatherproof Fibre Wall Box – SC/APC Series

The TMT Global 8 Core Outdoor Weatherproof Fibre Wall Box – SC/APC is designed for protected fibre termination, splicing and adapter presentation in outdoor weatherproof applications. The enclosure provides controlled fibre routing, splice protection and service access for 8-fibre installations, with SC/APC connectivity and adapter loaded configuration.

KEY FEATURES

• 8-fibre termination capacity / 12-fibre termination capacity / 16-fibre termination capacity / 24-fibre termination capacity
• UV-resistant ABS/PC enclosure construction
• SC/APC interface configuration / LC/UPC interface configuration
• Bend-radius controlled fibre routing
• Splice sleeve and fibre management
• Cable entry and strain-relief provision

APPLICATIONS

• FTTH outdoor distribution
• Building exterior fibre points
• CCTV / security fibre links
• Access network distribution

OEM / PUBLICATION POSITIONING

Installation: secure the enclosure to the specified wall/pole surface, anchor incoming cable, maintain fibre bend radius and protect all splices. Ordering: TMT-FWB-OW01 defines the controlled base SKU; colour and minor accessories may be managed as approved options only when they do not change the technical design. Packaging: individual protective pack with SKU identification; mounting hardware/accessories as declared. OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.

STANDARDS / TEST BASIS

• System application — ISO/IEC 11801 structured cabling context
• Connector interfaces — IEC 61754 interface family where adapters are fitted
• Passive component testing — IEC 61300 series where applicable
• Material compliance — RoHS / REACH declarations required where applicable
• Housing fire performance — UL 94 V-0 polymer target only where supported by material evidence
• Outdoor ingress protection — IEC 60529 rating only when supported by enclosure test evidence

QUALITY / ACCEPTANCE

• OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.

TECHNICAL SPECIFICATION
