8 Core FTTH Splitter-Ready Wall Box – 1×4

Choosing the 8 Core FTTH Splitter-Ready Wall Box – 1×4

Size a fibre wall box by fibre count first, then by the adapter interface (SC or LC) your patch cords use and whether splices will be stored inside. Indoor boxes suit telecom rooms and risers; use a weatherproof type where the box is exposed.

• Fibre capacity: 8 fibres / 12 fibres / 16 fibres / 24 fibres
• Connector: SC/APC
• Loading: Splitter loaded / Splitter-ready
• Splitter: 1×4 PLC / 1×8 PLC / 1×16 PLC / 1×16 PLC provision
• Installation: Indoor / protected outdoor / Indoor / outdoor

Related options in this range: 12 Core Metal Wall-Mount Fibre Box – SC · 8 Core Outdoor Weatherproof Fibre Wall Box – SC/APC · 12 Core Standard Indoor Fibre Wall Box – SC/UPC · 12 Fibre Inline Aerial Splice Closure

Order code: TMT-FWB-SP01. Send us the quantity and configuration for a project quotation and datasheet.

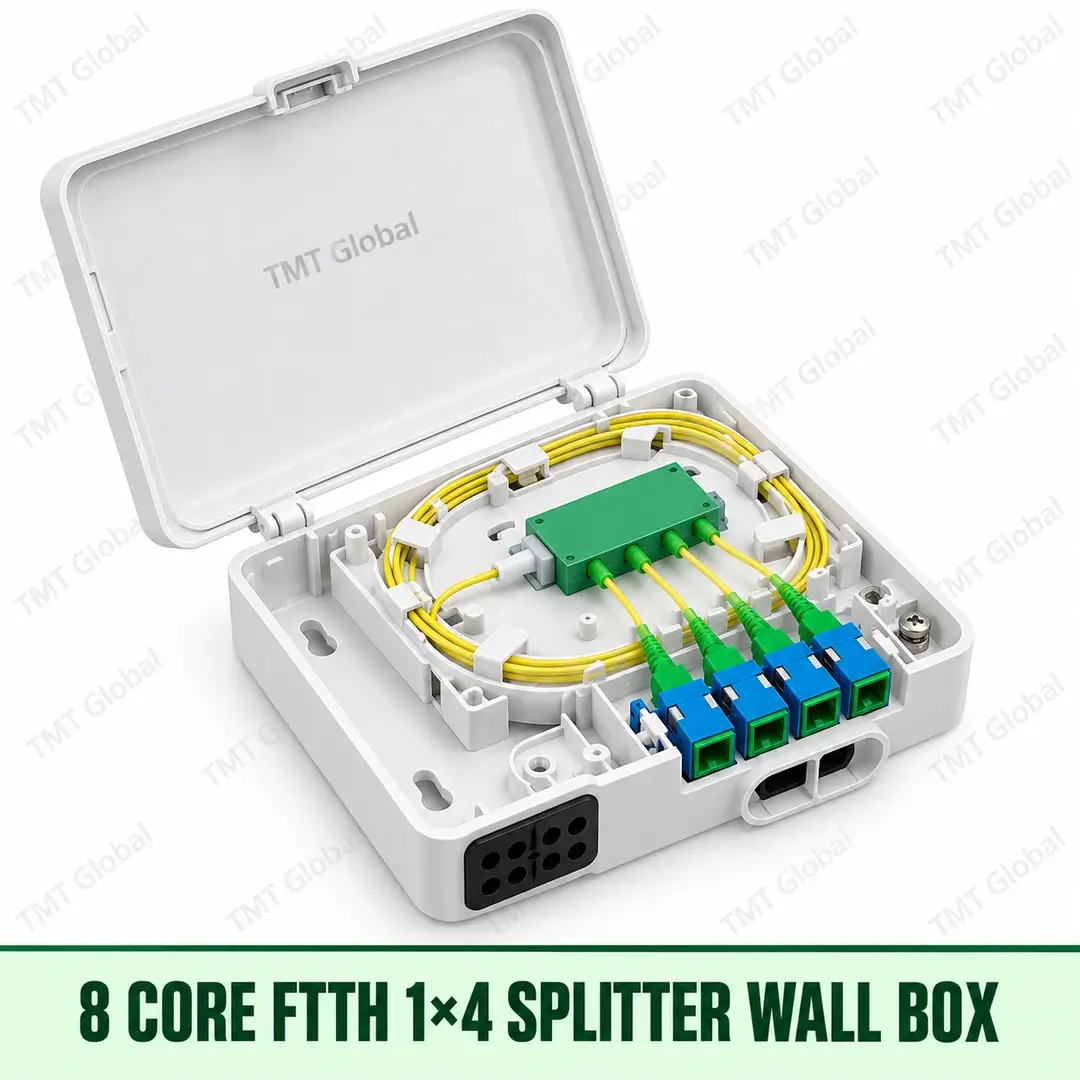

TMT Global 8 Core FTTH Splitter-Ready Wall Box – 1×4 Series

The TMT Global 8 Core FTTH Splitter-Ready Wall Box – 1×4 is designed for protected fibre termination, splicing and adapter presentation in splitter-ready applications. The enclosure provides controlled fibre routing, splice protection and service access for 8-fibre installations, with SC/APC connectivity and splitter loaded configuration.

KEY FEATURES

• 8-fibre termination capacity / 12-fibre termination capacity / 16-fibre termination capacity / 24-fibre termination capacity
• ABS/PC enclosure construction
• SC/APC interface configuration
• Bend-radius controlled fibre routing
• Splice sleeve and fibre management
• Cable entry and strain-relief provision

APPLICATIONS

• FTTH / PON distribution
• MDU and building fibre distribution
• Access network termination
• Telecom / ELV fibre distribution

OEM / PUBLICATION POSITIONING

Installation: secure the enclosure to the specified wall/pole surface, anchor incoming cable, maintain fibre bend radius and protect all splices. Ordering: TMT-FWB-SP01 defines the controlled base SKU; colour and minor accessories may be managed as approved options only when they do not change the technical design. Packaging: individual protective pack with SKU identification; mounting hardware/accessories as declared. OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.

STANDARDS / TEST BASIS

• System application — ISO/IEC 11801 structured cabling context
• Connector interfaces — IEC 61754 interface family where adapters are fitted
• Passive component testing — IEC 61300 series where applicable
• Material compliance — RoHS / REACH declarations required where applicable
• Housing fire performance — UL 94 V-0 polymer target only where supported by material evidence
• Outdoor ingress protection — IEC 60529 rating only when supported by enclosure test evidence

QUALITY / ACCEPTANCE

• OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.

TECHNICAL SPECIFICATION
