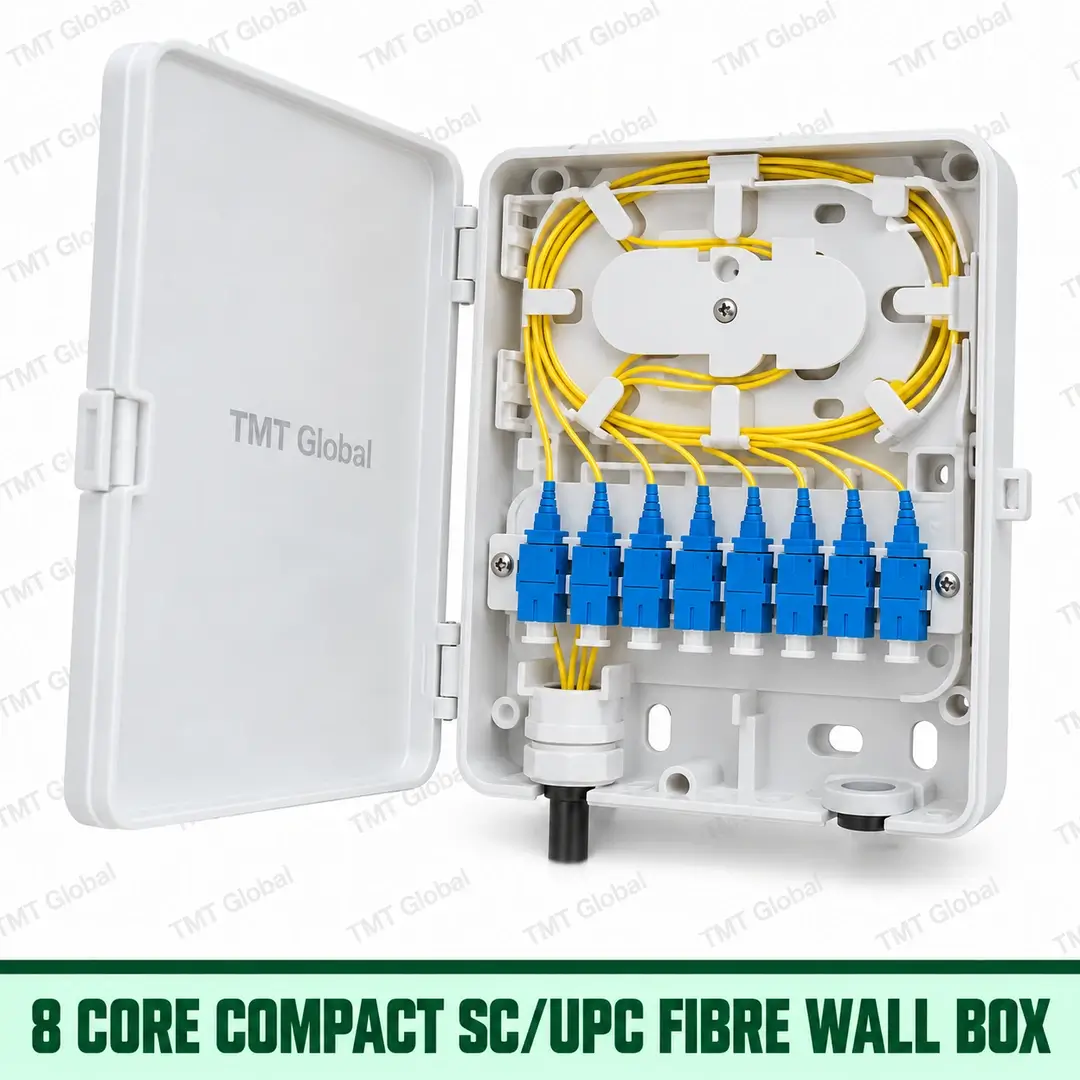

8 Core Compact Indoor Fibre Wall Box – SC/UPC
KEY FEATURES
- 8-fibre termination capacity / 12-fibre termination capacity
- ABS/PC enclosure construction
- SC/UPC interface configuration / SC/APC interface configuration / LC/UPC interface configuration
- Bend-radius controlled fibre routing
- Splice sleeve and fibre management
- Cable entry and strain-relief provision
TMT Global 8 Core Compact Indoor Fibre Wall Box – SC/UPC Series
The TMT Global 8 Core Compact Indoor Fibre Wall Box – SC/UPC is designed for protected fibre termination, splicing and adapter presentation in compact indoor applications. The enclosure provides controlled fibre routing, splice protection and service access for 8-fibre installations, with SC/UPC connectivity and adapter loaded configuration.
KEY FEATURES
- 8-fibre termination capacity / 12-fibre termination capacity
- ABS/PC enclosure construction
- SC/UPC interface configuration / SC/APC interface configuration / LC/UPC interface configuration
- Bend-radius controlled fibre routing
- Splice sleeve and fibre management
- Cable entry and strain-relief provision
APPLICATIONS
- FTTH customer premises
- Building risers and telecom rooms
- Office / LAN fibre links
- CCTV fibre termination
OEM / PUBLICATION POSITIONING
Installation: secure the enclosure to the specified wall/pole surface, anchor incoming cable, maintain fibre bend radius and protect all splices. Ordering: TMT-FWB-CI01 defines the controlled base SKU; colour and minor accessories may be managed as approved options only when they do not change the technical design. Packaging: individual protective pack with SKU identification; mounting hardware/accessories as declared. OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.
STANDARDS / TEST BASIS
- System application — ISO/IEC 11801 structured cabling context
- Connector interfaces — IEC 61754 interface family where adapters are fitted
- Passive component testing — IEC 61300 series where applicable
- Material compliance — RoHS / REACH declarations required where applicable
- Housing fire performance — UL 94 V-0 polymer target only where supported by material evidence
- Outdoor ingress protection — IEC 60529 rating only when supported by enclosure test evidence
QUALITY / ACCEPTANCE
- OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.
TECHNICAL SPECIFICATION
| Parameter | TMT Declared Specification |
| Fibre capacity | 8 fibres / 12 fibres |
| Enclosure / material | ABS/PC |
| Installation | Indoor wall mount |
| Optical interface | SC/UPC / SC/APC / LC/UPC |
| Loading | Adapter loaded / Fully loaded |
| Splitter provision | None |
| Splice management | Heat-shrink splice sleeve accommodation; tray/holder capacity matched to fibre count |
| Cable management | Controlled bend radius, cable anchoring and strain relief |
| Cable entry | Gland, grommet, knockout or rear entry according to model |
| Environmental | Indoor / protected installation according to ordered model |
| Brand | TMT Global |
|---|
| Item Name | Item Code / SKU | Controlled Description | Series | QR Code |
|---|---|---|---|---|
| 8 Core Compact Indoor Fibre Wall Box - SC/UPC | 8 Core Compact Indoor Fibre Wall Box - SC/UPC | Compact Indoor |  | |
| 8 Core Compact Indoor Fibre Wall Box - SC/APC | 8 Core Compact Indoor Fibre Wall Box - SC/APC | Compact Indoor | | |
| 12 Core Compact Indoor Fibre Wall Box - SC/APC | 12 Core Compact Indoor Fibre Wall Box - SC/APC | Compact Indoor | | |
| 12 Core Compact Indoor Fibre Wall Box - LC Duplex | 12 Core Compact Indoor Fibre Wall Box - LC Duplex | Compact Indoor | |
