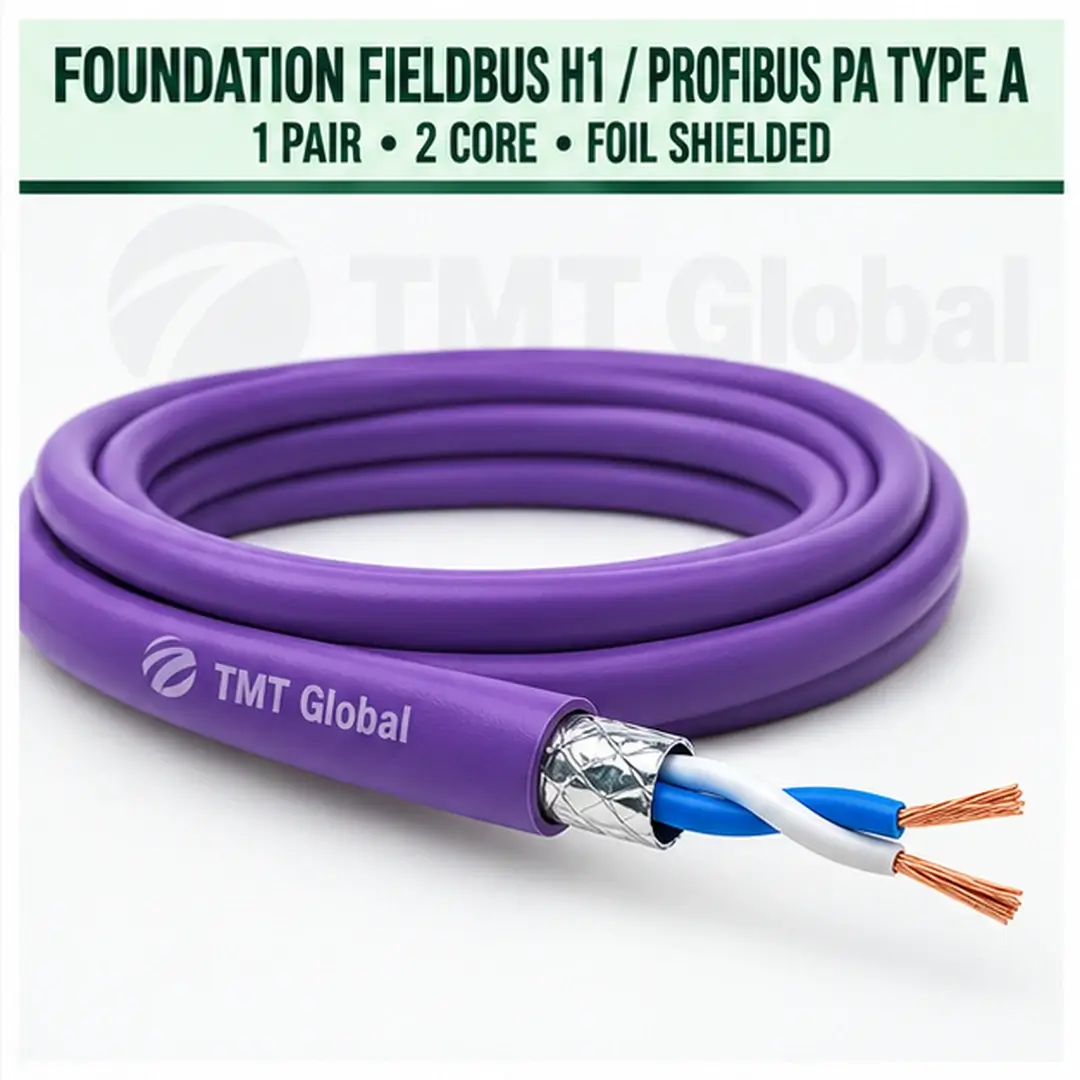

1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable
KEY FEATURES
- 1 Pair (2 Core) controlled twisted-pair construction
- Overall aluminium/polyester foil screen with drain wire
- 100 Ω nominal at 31.25 kHz protocol-design target
- 16, 18 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Exact searchable ordering code for every standard combination
Choosing the 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable
Choose bus cable by protocol family first, because characteristic impedance and pair construction must match the bus. Then pick the screening and jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.
- Protocol: FOUNDATION Fieldbus H1 / PROFIBUS PA Type A
- Impedance: 100 Ω nominal at 31.25 kHz
- Cores / pairs: 1 Pair
- Conductor size: 16 AWG / 18 AWG
- Conductor: Solid or stranded bare-copper conductor
- Screen: Overall aluminium/polyester foil screen with drain wire
- Package: 305 m standard package
Related options in this range: 2 Pairs (4 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable · 1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable · 4 Pairs (8 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable · 8 Pairs (16 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable
Order code: 02S-FB. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable – Series
TMT Global 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable is a controlled protocol-bus cable family for foundation fieldbus h1 trunk and spur circuits and related industrial or building-automation networks. This page covers the 1 pair (2 core), foil shielded and 100 Ω nominal at 31.25 kHz electrical family; the ordering table lists the exact jacket and conductor-size order codes.
KEY FEATURES
- 1 Pair (2 Core) controlled twisted-pair construction
- Overall aluminium/polyester foil screen with drain wire
- 100 Ω nominal at 31.25 kHz protocol-design target
- 16, 18 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- FOUNDATION Fieldbus H1 trunk and spur circuits
- PROFIBUS PA process-automation networks
- Transmitters, positioners, valves and process instruments
- Oil and gas, chemical, water, pharmaceutical and utility plants
- Multi-pair families require individual pair screens plus an overall screen where released by the factory design.
Technical Specification
| PARAMETER | SPECIFICATION |
| Protocol family | FOUNDATION Fieldbus H1 / PROFIBUS PA Type A |
| Pair / core configuration | 1 Pair (2 Core) |
| Conductor material | Bare copper |
| Conductor construction | Solid or stranded bare-copper conductor |
| Available conductor sizes | 16 AWG / 18 AWG |
| Pair insulation | PE / foam-skin PE, Series dependent |
| Shielding | Overall aluminium/polyester foil screen with drain wire |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Orange indoor; Orange outdoor / process identification |
| Characteristic impedance | 100 Ω nominal at 31.25 kHz |
| Series code | 02S-FB |
| Ordering variants | Conductor size × jacket, as listed on Page C |
| Package length | 305 m standard package |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m |
| AWG | 16 awg, 18 awg |
|---|---|
| Brand | TMT Global |
| Colour | Orange |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 16 awg | PVC | Orange | 305 m |  | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 16 awg | LSZH | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 16 awg | PE Outdoor | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 18 awg | PVC | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 18 awg | LSZH | Orange | 305 m | | |
| 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable | 02S-FB | 18 awg | PE Outdoor | Orange | 305 m | |
