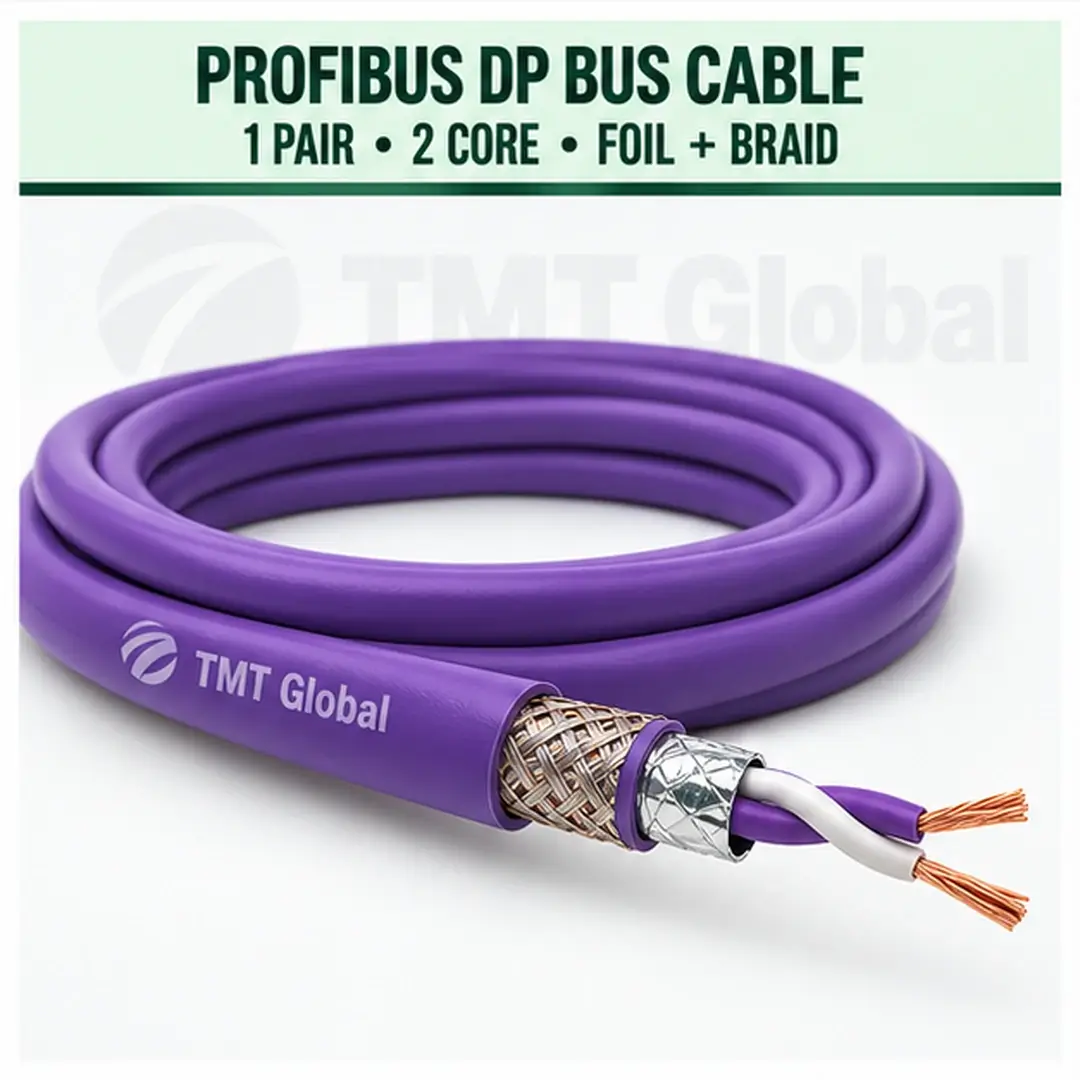

1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable
KEY FEATURES
- 1 Pair (2 Core) controlled twisted-pair construction
- Overall foil + tinned-copper braid + drain wire
- 150 Ω nominal protocol-design target
- 22 AWG Series option
- PVC, LSZH and outdoor PE jacket choices
- Exact searchable ordering code for every standard combination
Description
TMT 1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable Series
TMT Global 1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable is a controlled protocol-bus cable family for profibus dp / fms fixed bus segments and related industrial or building-automation networks. The product page fixes the 1 pair (2 core), foil + braid shielded and 150 Ω nominal electrical family, while the TMT Series ordering table provides exact jacket and conductor-size item codes for customer search, quotation and project selection.
KEY FEATURES
- 1 Pair (2 Core) controlled twisted-pair construction
- Overall foil + tinned-copper braid + drain wire
- 150 Ω nominal protocol-design target
- 22 AWG Series option
- PVC, LSZH and outdoor PE jacket choices
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- PROFIBUS DP / FMS fixed bus segments
- PLC, remote-I/O, drive and field-device networks
- Factory automation and machine control
- Permanent indoor and project outdoor installations
- The 22 AWG code represents the approximately 0.64 mm PROFIBUS conductor format; protocol testing remains mandatory.
Technical Specification
| PARAMETER | SPECIFICATION |
| Protocol family | PROFIBUS DP |
| Pair / core configuration | 1 Pair (2 Core) |
| Conductor material | Bare copper |
| Conductor construction | Solid or stranded bare-copper conductor |
| Available conductor sizes | 22 AWG |
| Pair insulation | PE / foam-skin PE, Series dependent |
| Shielding | Overall foil + tinned-copper braid + drain wire |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Violet indoor; Black outdoor |
| Characteristic impedance | 150 Ω nominal |
| Series code | 02B-PD |
| Ordering variants | Conductor size × jacket, as listed on Page C |
| Package length | 305 m standard package |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 22 AWG | 0.326 mm² | PVC / LSZH / PE Outdoor • 305 m |
Additional information
| AWG | 22 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Violet |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable | 02B-PD | 22 awg | PVC | Violet | 305 m |  | |
| 1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable | 02B-PD | 22 awg | LSZH | Violet | 305 m | | |
| 1 Pair (2 Core) Foil + Braid Shielded PROFIBUS DP Bus Cable | 02B-PD | 22 awg | PE Outdoor | Black | 305 m | |
