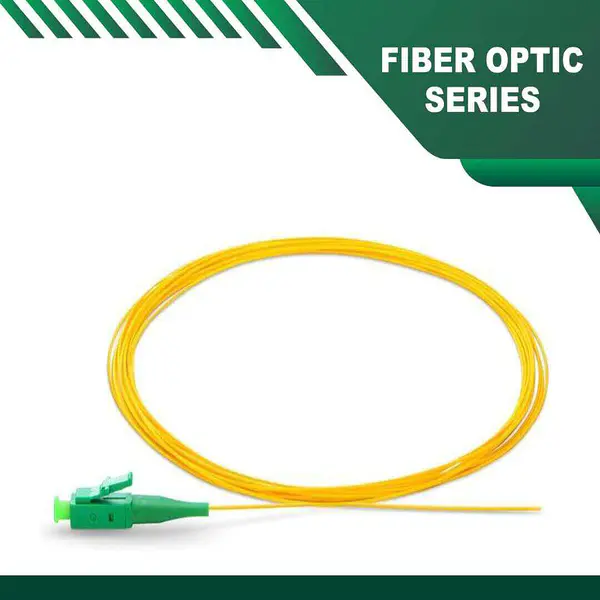

Fiber Pigtail LC APC Single Mode Connector LSZH 1m
$0.00
General Specification
Connector : LC
Polish Type : APC
Fiber Mode : 9/125umFiber Grade : ITU-TG.652D, G.657A1 /A2
Wavelength : SM:1310/1550nm
Cable Diameter : 0.9mm
Insertion loss : ≤0.3 dB
Return loss :≥60 dB
Durability : >1000 Times
Minimum Bend Radius : 30 mm
Jacket Material : LSZH
Color : Yellow
Products ID :TMT-P52001Y
Size:1m/1.5m/2m
TMT GLOBAL Fiber Pigtail Single Mode LC-APC Connector LSZH 1m
TMT Global Fiber Pigtail LC APC Single Mode Connector LSZH 1m Patch cables  are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.Fiber Pigtail LC APC Single Mode Connector LSZH 1m
Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.
| Optical Specification | |||
| Connector | SC,LC,FC,ST | Polish Type | APC,UPC,PC |
| Fiber  Mode | 9/125um,50/125um | Fiber Grade | ITU-TG.652D, G.657A1 /A2,OM2,OM3,OM4 |
| Wavelength | SM:1310/1550nm
MM:850nm |
Cable Diameter | 0.9 mm ,2.0MM,3.0MM |
| Insertion loss | ≤0.2dB
≤0.12dB |
Return loss | SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min) MM P ≥ 35dB(min) |
| Interchangeability | ≤0.2dB | Vibration | ≤0.2dB |
| Impact (Nm) | 0.2 | Durability | >1000 Times |
| Minimum Bend Radius | 30 mm | Buffer | Tight buffer,900um |
| Operating temperature | -45~75°C | Storage temperature | -45~85°C |
| Jacket Material | LSZH/PVC/OFNR/OFNP | Color | Yellow,Orange,Beige,Aqua,Purple |
| Model no. | Products ID | Ordering Information |
| TMT-3362 | P52001Y | 1M SINGLE MODE LC/APC SIMPLEX FIBER OPTIC PIGTAIL LSZH |
