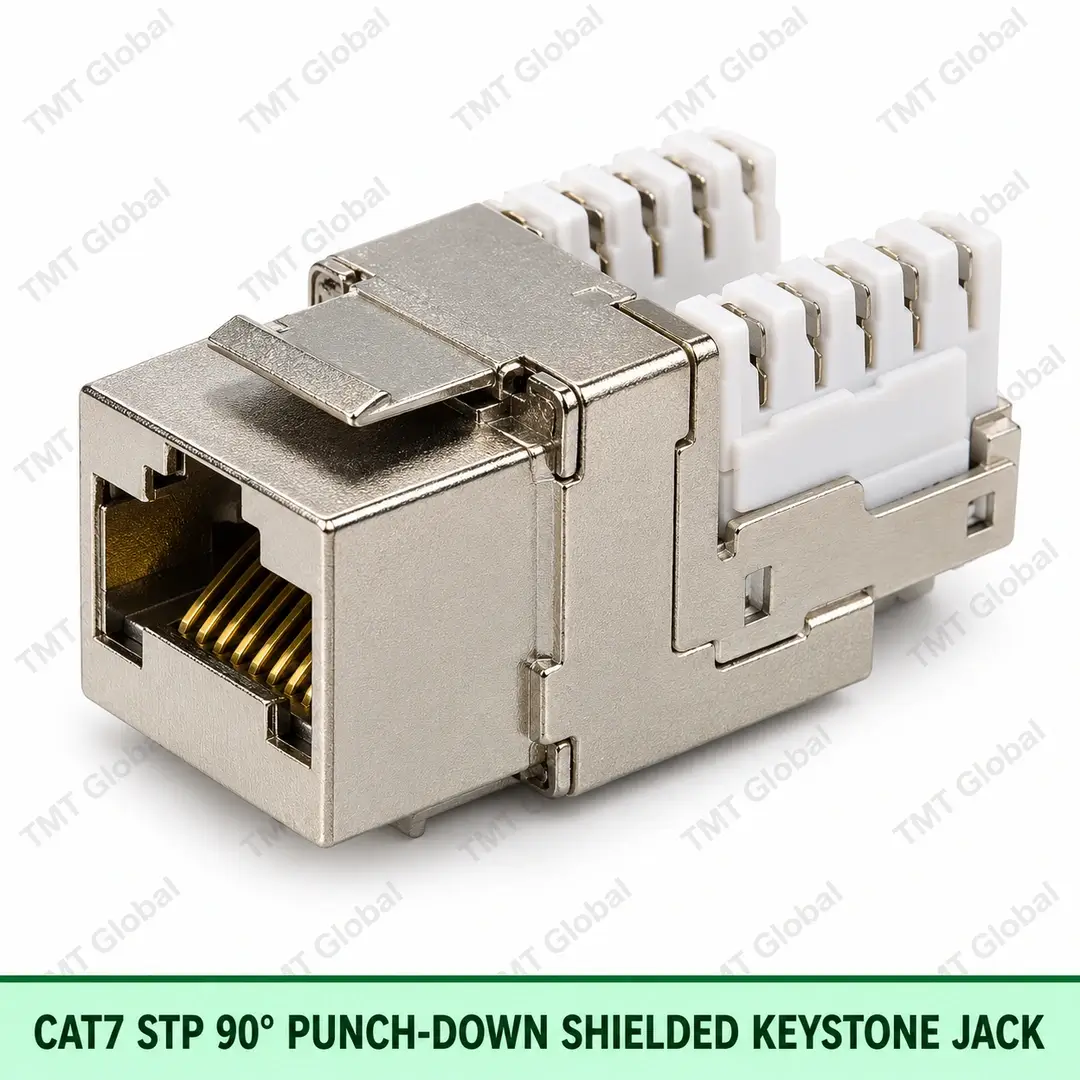

Cat7 STP 90° Punch-Down Shielded Keystone Jack
FEATURES
- Cat7 / Class F transmission target
- 1–600 MHz performance range
- S/FTP / Shielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- 360° shield continuity / earthing path
TMT Cat7 STP 90° Punch-Down Shielded Keystone Jack Series
The TMT Global Cat7 STP 90° Punch-Down Shielded Keystone Jack is a controlled keystone connectivity product for Cat7 / Class F structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with punch-down idc termination, 90° right-angle / floor-box geometry and s/ftp / shielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.
FEATURES
- Cat7 / Class F transmission target
- 1–600 MHz performance range
- S/FTP / Shielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- 360° shield continuity / earthing path
APPLICATIONS
- High-performance shielded LAN
- Data centres
- Industrial networks
- Class F installations
- High-EMI environments
Technical Specification
| Parameter | TMT Declared Specification |
| Product type | Cat7 STP 90° Punch-Down Shielded Keystone Jack |
| SKU | TMT-07SCS2 |
| Category / class | Cat7 / Class F |
| Frequency range | 1–600 MHz |
| Connector interface | RJ45, 8P8C |
| Shielding | S/FTP / Shielded |
| Orientation | 90° right-angle / floor-box |
| Termination | Punch-down IDC |
| Housing / body | Flame-retardant polymer with metal shield / zinc-alloy shielding shell |
| Contact material | Phosphor bronze |
| Contact plating | 50 µin gold over nickel at mating area |
| IDC / termination contact | Phosphor bronze, tin plated |
| Conductor compatibility | 22–24 AWG solid copper; 23–26 AWG where approved by cable design |
| Wiring scheme | T568A / T568B colour-coded identification |
| Contact resistance | ≤ 20 mΩ initial |
| Insulation resistance | ≥ 500 MΩ @ 100 V DC |
| Dielectric withstand | ≥ 1,000 V DC / 1 min |
| Mating durability | ≥ 750 plug insertion cycles |
| Operating range | -10 °C to +60 °C |
| Packaging | Individual bag or box; master carton per approved TMT packing |
STANDARDS & COMPLIANCE
- IEC 60603-7-7:2010
- ISO/IEC 11801-1 structured cabling system application
- Shield continuity / bonding path for screened cabling
- ANSI/TIA-568.2-D where applicable
- EN 50173 where applicable
- UL 94 V-0 polymer components
- RoHS
- REACH
AUTHORITY FIRE-PERFORMANCE NOTE
Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.
PRODUCT CONTROL STATEMENT
This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
