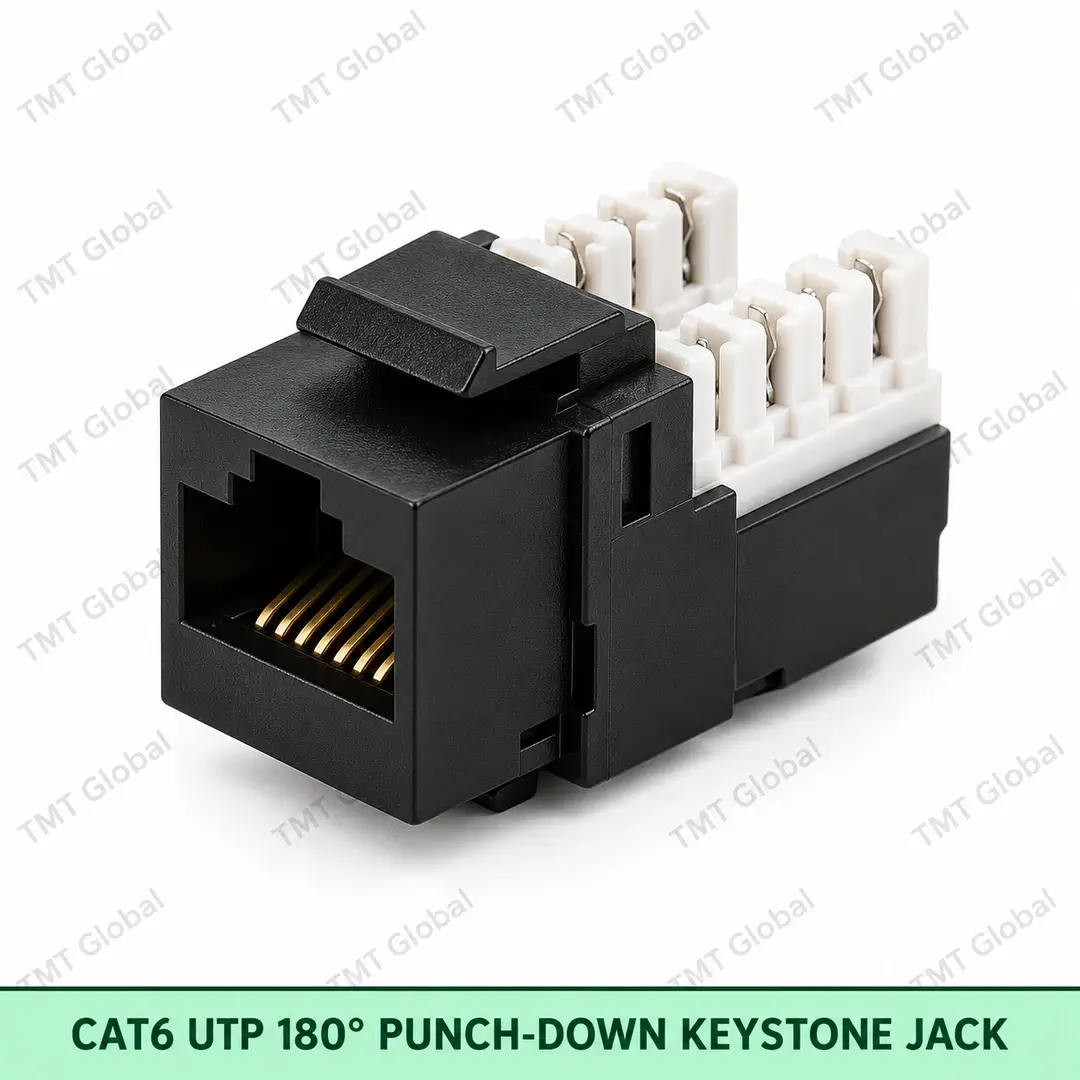

Cat6 UTP 180° Punch-Down Keystone Jack
FEATURES
- Cat6 / Class E transmission target
- 1–250 MHz performance range
- UTP / Unshielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- Compact unshielded modular format
TMT Cat6 UTP 180° Punch-Down Keystone Series
The TMT Global Cat6 UTP 180° Punch-Down Keystone Jack is a controlled keystone connectivity product for Cat6 / Class E structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with punch-down idc termination, 180° straight geometry and utp / unshielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.
FEATURES
- Cat6 / Class E transmission target
- 1–250 MHz performance range
- UTP / Unshielded RJ45 8P8C interface
- Punch-down IDC termination
- T568A / T568B wiring identification
- Compact unshielded modular format
APPLICATIONS
- Work-area outlets
- Patch panels
- Enterprise LAN
- IP CCTV / VoIP
- Commercial buildings
Technical Specification
| Parameter | TMT Declared Specification |
| Product type | Cat6 UTP 180° Punch-Down Keystone Jack |
| SKU | TMT-06UBP2 |
| Category / class | Cat6 / Class E |
| Frequency range | 1–250 MHz |
| Connector interface | RJ45, 8P8C |
| Shielding | UTP / Unshielded |
| Orientation | 180° straight |
| Termination | Punch-down IDC |
| Housing / body | High-impact flame-retardant polycarbonate, UL 94 V-0 |
| Contact material | Phosphor bronze |
| Contact plating | 50 µin gold over nickel at mating area |
| IDC / termination contact | Phosphor bronze, tin plated |
| Conductor compatibility | 22–26 AWG solid copper |
| Wiring scheme | T568A / T568B colour-coded identification |
| Contact resistance | ≤ 20 mΩ initial |
| Insulation resistance | ≥ 500 MΩ @ 100 V DC |
| Dielectric withstand | ≥ 1,000 V DC / 1 min |
| Mating durability | ≥ 750 plug insertion cycles |
| Operating range | -10 °C to +60 °C |
| Packaging | Individual bag or box; master carton per approved TMT packing |
STANDARDS & COMPLIANCE
- IEC 60603-7-4:2010
- ISO/IEC 11801-1 structured cabling system application
- ANSI/TIA-568.2-D where applicable
- EN 50173 where applicable
- UL 94 V-0 polymer components
- RoHS
- REACH
AUTHORITY FIRE-PERFORMANCE NOTE
Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.
PRODUCT CONTROL STATEMENT
This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
| Brand | TMT Global |
|---|
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6 UTP 180° Punch-Down Keystone Jack | TMT-06UBP2 |  |
