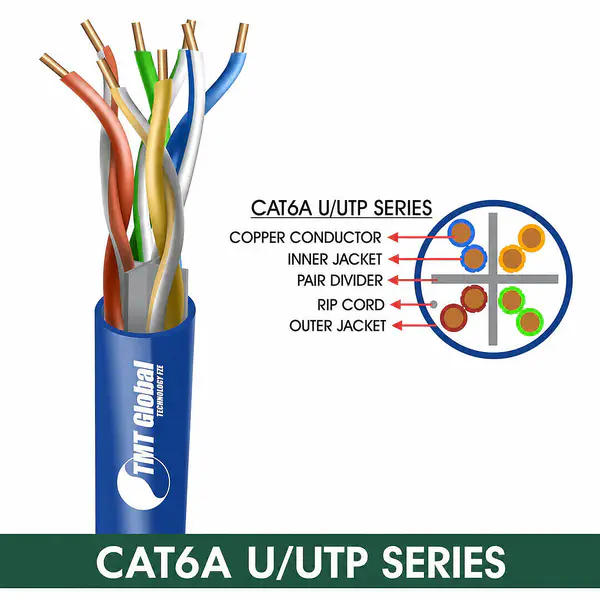

CAT6A U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A137BPX Series

Discover the TMT Global Cat6a U/UTP PVC network cable, an exceptional solution for high-performance networking needs. Manufactured in the UK, this cable supports speeds up to 10 Gbps, making it ideal for both commercial and residential applications. The superior design minimizes crosstalk and interference, ensuring a stable and reliable connection. With a thickness of 23 AWG, it offers the durability required for demanding environments, such as office networks and data centers. This Cat6a cable not only enhances your current networking infrastructure but also prepares it for future demands. Learn about its key features, applications, and how it can improve your data transmission capabilities.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/AQUA
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6A137BPX Series
