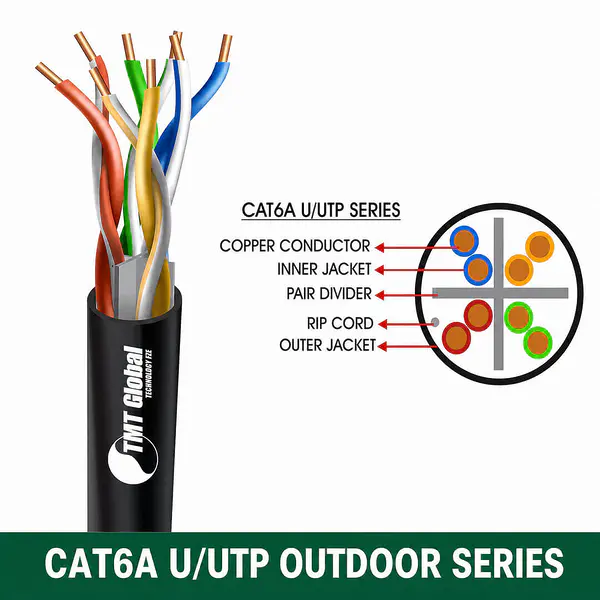

CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A132BOK

General Specification:
• Conductor: Bare copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: N
• Outer Jacket: PE
• Jacket Color: Black
• Packing: 305m / Wooden /Plastic Reel

Discover the TMT Global Cat6a U/UTP PE Outdoor Network Cable, designed for high-performance applications. With robust specifications including a 23 AWG construction and 500 MHz bandwidth, this cable facilitates reliable data transmission for both residential and commercial use. Its U/UTP design minimizes interference, ensuring clearer signals for streaming and gaming. Built for durability, the polyethylene outer jacket withstands harsh outdoor conditions, making it a perfect choice for extensive installations. With a length of 305 meters, the TMT Global cable reduces the need for frequent splicing while maintaining peak performance. Trust this high-quality networking solution to meet the challenges of modern data-intensive applications and enhance your outdoor connectivity.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PE OUTDOOR
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A132BOK
