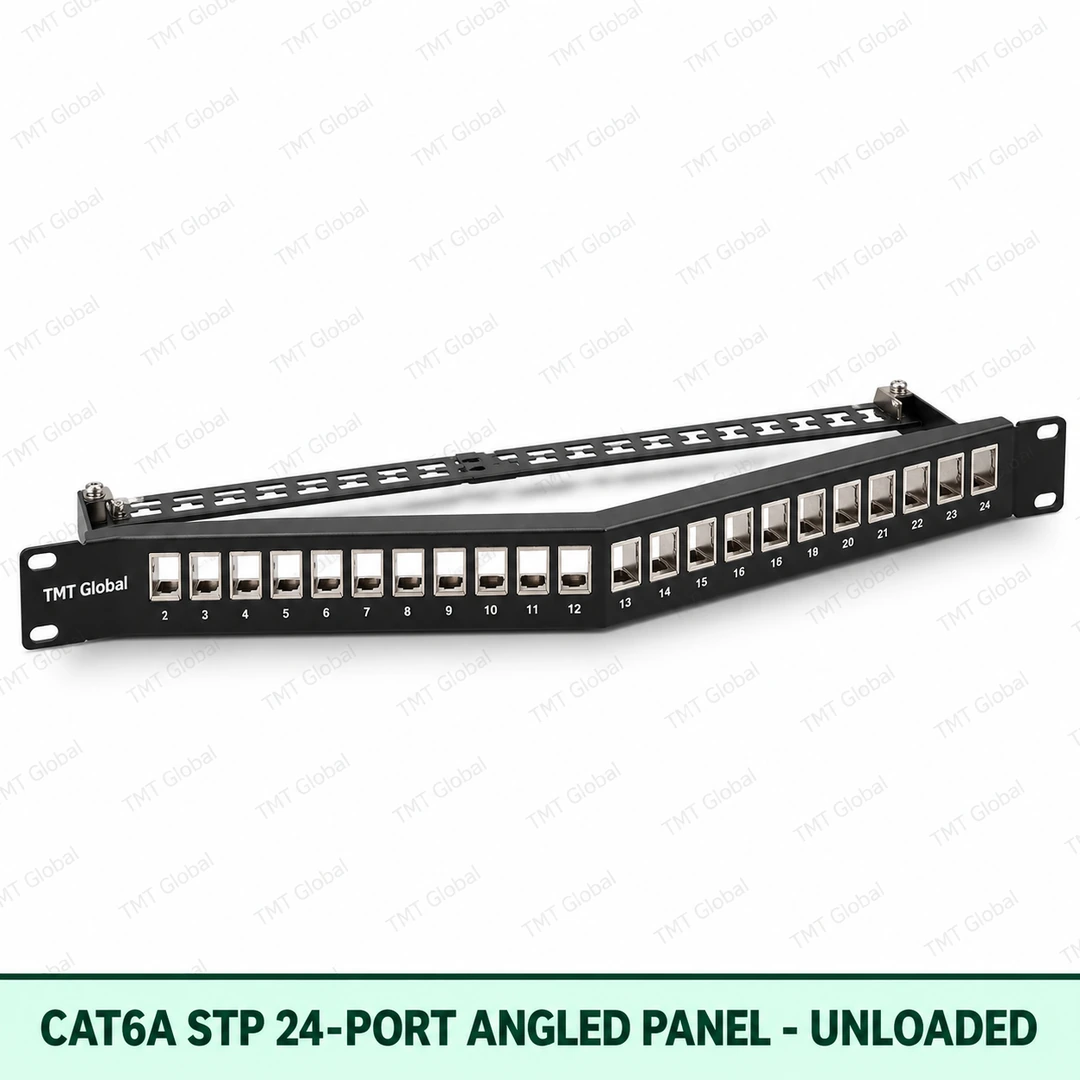

Cat6A STP 24-Port Angled Patch Panel | Unloaded
FEATURES
- Shielded angled Cat6A frame
- Accepts Cat6A STP keystone modules
- Side-routing for cable management
- Grounding/earthing provision
- 1U 19-inch rack mount
- Metal shield continuity
Description
TMT Global Cat6A STP 24-Port Angled Patch Panel | Unloaded Series
Cat6A STP 24-Port Angled Patch Panel | Unloaded is a TMT Global copper patch-panel product for shielded Cat6A modular patching with angled cord routing. It is designed for professional structured cabling installations where consistent rack organization, reliable cable support and standards-aligned connectivity are required. The product shall be supplied according to the declared TMT specification and applicable standards listed in the technical datasheet.
FEATURES
- Shielded angled Cat6A frame
- Accepts Cat6A STP keystone modules
- Side-routing for cable management
- Grounding/earthing provision
- 1U 19-inch rack mount
- Metal shield continuity
APPLICATIONS
- Shielded 10G networks
- Industrial racks
- Data centres
- High-EMI environments
- Transport infrastructure
STANDARDS & COMPLIANCE
- ISO/IEC 11801-1 system application
- Class EA / 10GBASE-T application target
- Grounding/earthing continuity for shielded systems
- ANSI/TIA-568.2-D system application
- EN 50173 system application
- IEC 60297-3-100 for 19-inch rack interface
- UL 94 V-0 polymer parts
- RoHS
- REACH
Technical Specification
| Parameter | TMT Declared Specification |
| Type | Cat6A STP 24-Port Angled Patch Panel | Unloaded |
| SKU | TMT-0324USA |
| Category / class | Cat6A / Class EA |
| Frequency range | 1–500 MHz system application |
| Port configuration | 24 ports |
| Load type | Unloaded |
| Shielding | STP / Shielded |
| Panel style | Angled / shielded |
| Rack / mounting | 1U, 19-inch rack mount |
| Panel material | SPCC galvanized/cold-rolled steel, black powder-coated |
| Polymer components | High-impact flame-retardant polymer, UL 94 V-0 |
| Wire compatibility | Dependent on installed TMT keystone/module |
| Wiring scheme | Dependent on installed module |
| Rear management | Rear cable support / tie points or cable bar |
| Operating range | -10 °C to +60 °C |
| Storage range | -20 °C to +70 °C |
| Packaging | 1 unit / box |
Additional information
| Brand | TMT Global |
|---|
Ordering Information
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Cat6A STP 24-Port Angled Patch Panel | Unloaded | TMT-0324USA |  |
