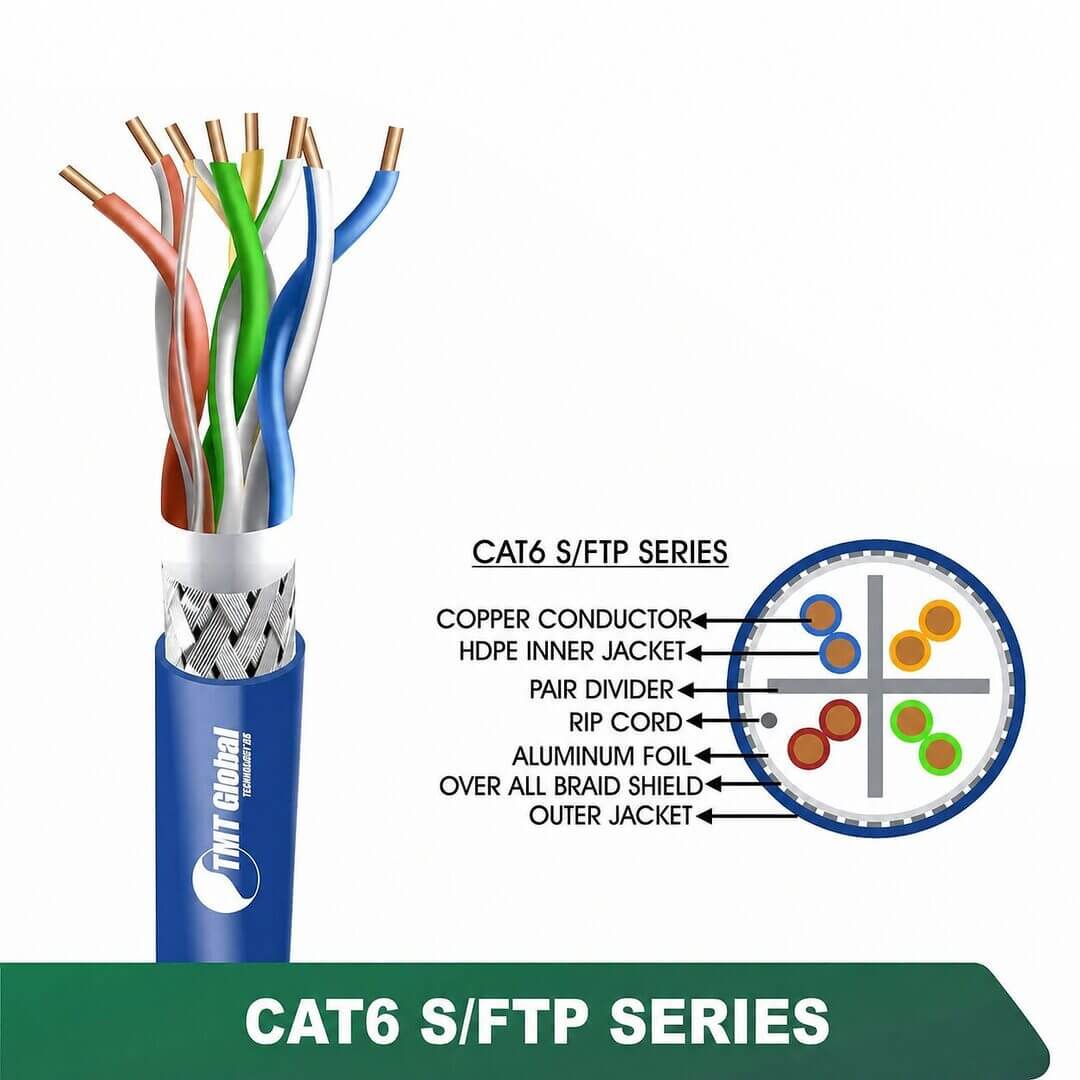

CAT6 S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X735BPX Series
General Specification:
• Conductor: Bare copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: Braiding Shield +Polyester-aluminum tape
• Outer Jacket: PVC
• Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
• Packing: 305m / Box
Discover the TMT Global CAT6 S/FTP PVC Network Cable, renowned for its high-performance capabilities and durability. Designed for a wide range of networking applications, this cable features a robust 23 AWG construction with shielded twisted pairs (S/FTP) to minimize external interference, ensuring reliable connections in both residential and commercial environments. It supports high data rates, making it ideal for streaming, gaming, and demanding bandwidth applications. With lengths up to 305 meters, the TMT Global CAT6 cable is perfect for data centers and enterprise networks, providing stability and speed across short and long distances. Upgrade your networking infrastructure with a cable that guarantees superior transmission capabilities and exceptional performance.
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Braiding Shield +Polyester-aluminum tape
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8-12 x OD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 S/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X735BPX Series
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | PVC |
| Length | 305 m |
| Colour | Item Code / SKU | Jacket | AWG | Pack |
|---|---|---|---|---|
| Aqua | PVC | 23 awg | 305M | |
| Black | PVC | 23 awg | 305M | |
| Blue | PVC | 23 awg | 305M | |
| Green | PVC | 23 awg | 305M | |
| Grey | PVC | 23 awg | 305M | |
| Orange | PVC | 23 awg | 305M | |
| Red | PVC | 23 awg | 305M | |
| Violet | PVC | 23 awg | 305M | |
| White | PVC | 23 awg | 305M | |
| Yellow | PVC | 23 awg | 305M |
