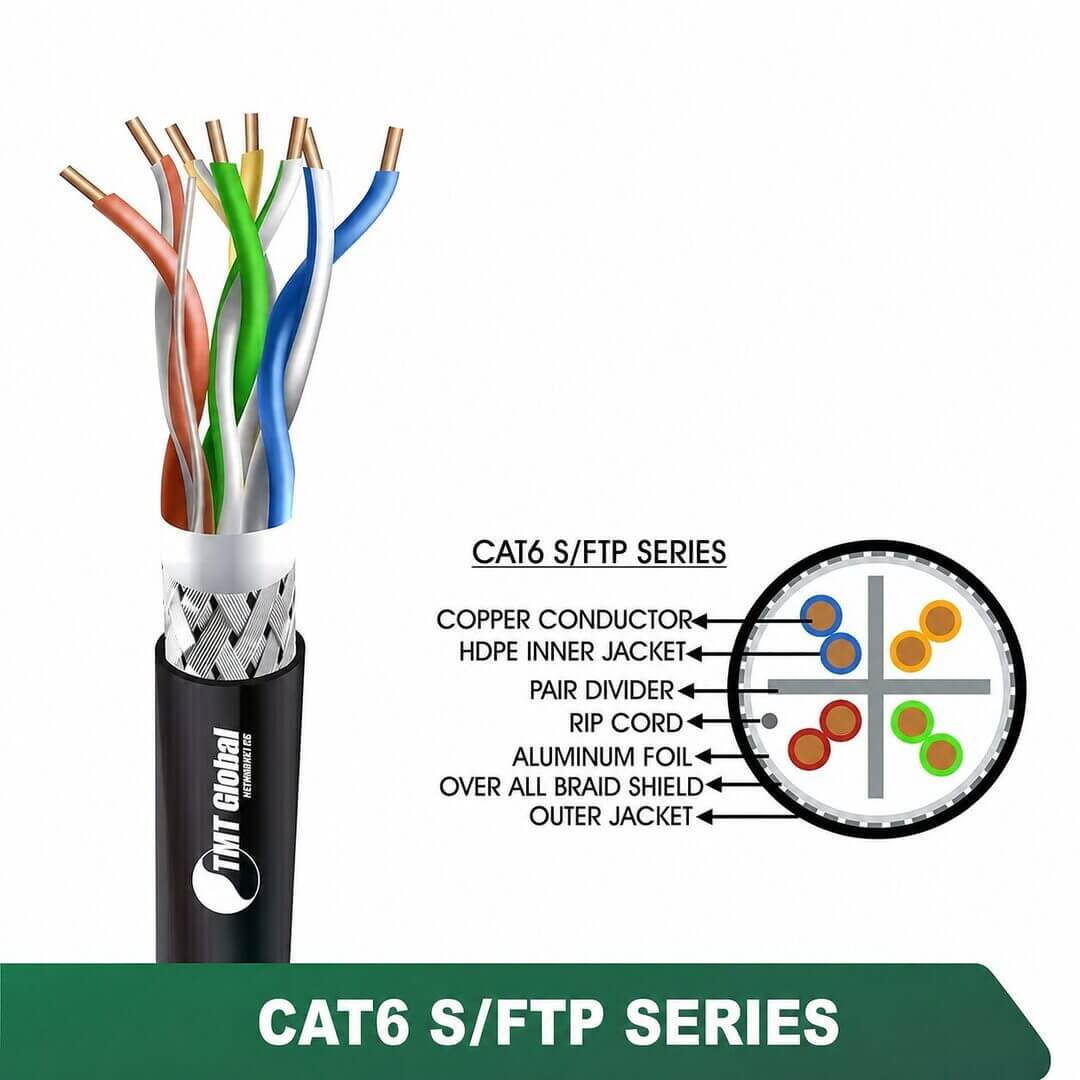

CAT6 S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X735BOK

General Specification:
• Conductor: Bare copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: Braiding Shield +Polyester-aluminum tape
• Outer Jacket: PE Outdoor
• Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
• Packing: 305m / Box

The TMT Global Cat6 S/FTP PE Outdoor Network Cable is the ultimate choice for reliable outdoor connectivity. Boasting a shielded foiled twisted pair design, this cable minimizes interference and maximizes speed, reaching up to 10 Gbps. With a robust 23 AWG construction and durable polyethylene insulation, it protects against moisture and UV radiation, ensuring longevity in outdoor settings. Spanning 305 meters, it is perfect for various installations, including surveillance cameras and access points. Whether for residential or commercial use, this cable guarantees enhanced performance and reduced power loss, making it a top-tier solution for your networking needs. Learn more about its key features, specifications, and applications.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Braiding Shield +Polyester-aluminum tape
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PE Outdoor
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8-12 x OD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X735BOK
