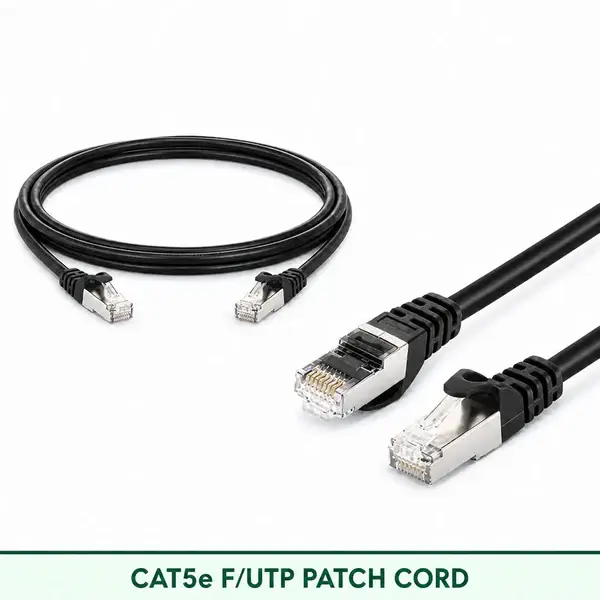

Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord
Features
- Snagless shielded RJ45 connectors, 360° shield termination
- Overall foil shield with tinned copper drain wire
- Premium tmt copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free PE Outdoor jacket construction
Description
TMT Global Cat5e F/UTP 5X4SMFOKXX SERIES Outdoor Data Patch Cords
The TMT GLOBAL Cat5e F/UTP Outdoor Shielded Patch Cord is engineered for structured cabling environments where additional protection against electromagnetic interference is required. Manufactured by TMT Global Technology Ltd, its overall foil shield and drain wire deliver stable performance for installers, systems integrators, and structured cabling contractors working near EMI sources such as power cabling, motors, and industrial equipment. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless shielded RJ45 connectors, 360° shield termination
- Overall foil shield with tinned copper drain wire
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free PE Outdoor jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
Application
- Structured Cabling
- Data Centres
- Enterprise LAN
- EMI-Sensitive Environments
- Industrial Networks
- Security & CCTV Systems
Electrical & Mechanical Specifications
ISO/IEC 11801 Class D (shielded) / TIA/EIA-568-C.2
| Parameter | Specification |
| Type | CAT5E F/UTP |
| Frequency Range | 1–100 MHz |
| Characteristic Impedance | 100 ± 15Ω @ 1–100MHz |
| Coupling Attenuation | ≥ 40dB @ 30–100MHz |
| Conductor Resistance | ≤ 9.38Ω / 100m (24AWG) |
| Insulation Resistance | ≥ 10MΩ / 100m |
| Resistance Unbalance | 2% max |
| Dielectric Strength | 1000V / 1 min rms |
| Cable-to-Plug Tensile Strength | 9 Kgf (90N) min |
| Durability | 1200 mating cycles |
| Operating Temperature | -25°C to +70°C |
Physical Properties & Compliance
Physical & Mechanical Properties
| Parameter | Specification |
| Type | CAT5E F/UTP |
| Basic Conductor | 24AWG tmt copper |
| Insulation | HDPE |
| Pairs | 4 twisted pairs, overall foil shield |
| Shield / Drain Wire | Aluminium foil + tinned copper drain wire |
| Impedance | 100Ω ± 15% |
| Outer Jacket | PE Outdoor (halogen-free) |
| Plug Contact Plating | Phosphor bronze, 30µ” gold/nickel |
| RJ45 Plug | 8P8C, shielded metal housing, 360° shield termination |
| Cable OD | Confirm on sample (typ. 5.5–6.0mm) |
| Colour Options | Per available colour range |
| Length Range | 15cm – 90m (multiple lengths available) |
Compliance & Certification
| Parameter | Specification |
| Halogen-Free | Yes — PE Outdoor (halogen-free) jacket construction |
| Fire Performance (Euroclass) | Cca-s1b, d2, a2 per EN 13501-6 / BS EN 13501-6 |
| CE Marking | Yes — DoP under EU/UK Construction Products Regulation |
| Flame Retardant Test | IEC/EN 60332-1-2 compliant |
| Test / Certificate Reference | Insert DoP / test report / notified body reference |
Additional information
| AWG | 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black |
| Jacket Type | PE Outdoor |
| Length | 1 m, 1.5 m, 10 m, 12 m, 15 cm, 15 m, 2 m, 20 cm, 20 m, 25 cm, 25 m, 3 m, 30 cm, 30 m, 35 m, 4 m, 40 m, 45 m, 5 m, 50 cm, 50 m, 6 m, 60 m, 70 m, 8 m, 80 m, 90 m |
Ordering Information
| Item Name | Item Code / SKU | Length | Series | Colour | AWG | Cable Type | QR Code |
|---|---|---|---|---|---|---|---|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 15 cm | 15 cm | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP |  |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 20 cm | 20 cm | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 25 cm | 25 cm | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 30 cm | 30 cm | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 50 cm | 50 cm | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 1 m | 1 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 1.5 m | 1.5 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 2 m | 2 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 3 m | 3 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 4 m | 4 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 5 m | 5M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 6 m | 6 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 8 m | 8 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 10 m | 10 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 12 m | 12 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 15 m | 15 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 20 m | 20 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 25 m | 25 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 30 m | 30 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 35 m | 35 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 40 m | 40 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 45 m | 45 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 50 m | 50 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 60 m | 60 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 70 m | 70 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 80 m | 80 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
|
| Cat5e F/UTP 5X4SMFOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 90 m | 90 M | 5X4SMFOKXX | Black | 24 awg | CAT5E F/UTP | |
