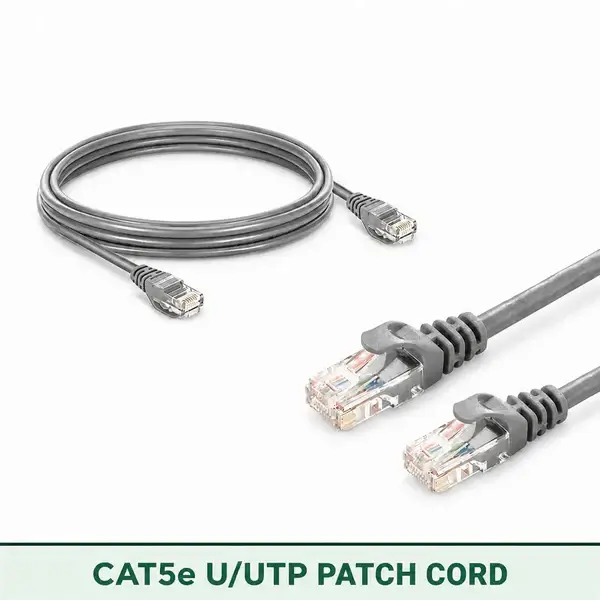

Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord
Features
- Snagless RJ45 connectors
- Premium tmt copper conductors
- Multiple colours
- Multiple lengths
- PE Outdoor Jacket
- Factory tested
- Backward compatible where applicable
Description
TMT Global Cat5e U/UTP 5X4PMUOKXX SERIES Data Patch Cords
The TMT GLOBAL Cat5e U/UTP Outdoor Data Ethernet Patch Cord is engineered for structured cabling, data centre, and enterprise networking environments. Manufactured by TMT Global Technology Ltd, this patch cord delivers consistent, reliable performance for installers, systems integrators, and structured cabling contractors specifying Cat5e links for LAN, CCTV, and building infrastructure projects. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless shielded RJ45 connectors, 360° shield termination
- Overall foil shield with tinned copper drain wire
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free PE Outdoor jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
Application
- Structured Cabling
- Data Centres
- Enterprise LAN
- EMI-Sensitive Environments
- Industrial Networks
- Security & CCTV Systems
Electrical & Mechanical Specifications
ISO/IEC 11801 Class D (shielded) / TIA/EIA-568-C.2
| Parameter | Specification |
| Type | CAT5E U/UTP |
| Frequency Range | 1–100 MHz |
| Characteristic Impedance | 100 ± 15Ω @ 1–100MHz |
| Coupling Attenuation | ≥ 40dB @ 30–100MHz |
| Conductor Resistance | ≤ 9.38Ω / 100m (24AWG) |
| Insulation Resistance | ≥ 10MΩ / 100m |
| Resistance Unbalance | 2% max |
| Dielectric Strength | 1000V / 1 min rms |
| Cable-to-Plug Tensile Strength | 9 Kgf (90N) min |
| Durability | 1200 mating cycles |
| Operating Temperature | -25°C to +70°C |
Physical Properties, Length & Compliance
Physical & Mechanical Properties
| Parameter | Specification |
| Type | CAT5E U/UTP |
| Basic Conductor | 24AWG tmt copper |
| Insulation | HDPE |
| Pairs | 4 twisted pairs |
| Impedance | 100Ω ± 15% |
| Outer Jacket | PE Outdoor (halogen-free) |
| Plug Contact Plating | Phosphor bronze, 30µ” gold/nickel |
| RJ45 Plug | 8P8C, unshielded, 30U” U-type, 94V-2 |
| Cable OD | Confirm on sample (typ. 5.0–5.5mm) |
| Colour Options | Per available colour range |
| Length Range | 15cm – 90m (multiple lengths available) |
Compliance & Certification
| Parameter | Specification |
| Halogen-Free | Yes — PE Outdoor (halogen-free) jacket construction |
| Fire Performance (Euroclass) | Cca-s1b, d2, a2 per EN 13501-6 / BS EN 13501-6 |
| CE Marking | Yes — DoP under EU/UK Construction Products Regulation |
| Flame Retardant Test | IEC/EN 60332-1-2 compliant |
| Test / Certificate Reference | Insert DoP / test report / notified body reference |
Additional information
| AWG | 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | PE Outdoor |
| Length | 1 m, 1.5 m, 10 m, 12 m, 15 cm, 15 m, 2 m, 20 cm, 20 m, 25 cm, 25 m, 3 m, 30 cm, 30 m, 35 m, 4 m, 40 m, 45 m, 5 m, 50 cm, 50 m, 6 m, 60 m, 70 m, 8 m, 80 m, 90 m |
Ordering Information
| Item Name | Item Code / SKU | Length | Series | Colour | AWG | Cable Type | QR Code |
|---|---|---|---|---|---|---|---|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 15 cm | 15 cm | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP |  |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 20 cm | 20 cm | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 25 cm | 25 cm | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 30 cm | 30 cm | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 50 cm | 50 cm | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 1 m | 1 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 1.5 m | 1.5 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 2 m | 2 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 3 m | 3 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 4 m | 4 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 5 m | 5M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 6 m | 6 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 8 m | 8 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 10 m | 10 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 12 m | 12 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 15 m | 15 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 20 m | 20 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 25 m | 25 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 30 m | 30 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 35 m | 35 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 40 m | 40 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 45 m | 45 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 50 m | 50 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 60 m | 60 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 70 m | 70 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 80 m | 80 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
|
| Cat5e U/UTP 5X4PMUOKXX Series | 24 AWG Outdoor Network Patch Cord - Black - 90 m | 90 M | 5X4PMUOKXX | Black | 24 awg | CAT5E U/UTP | |
