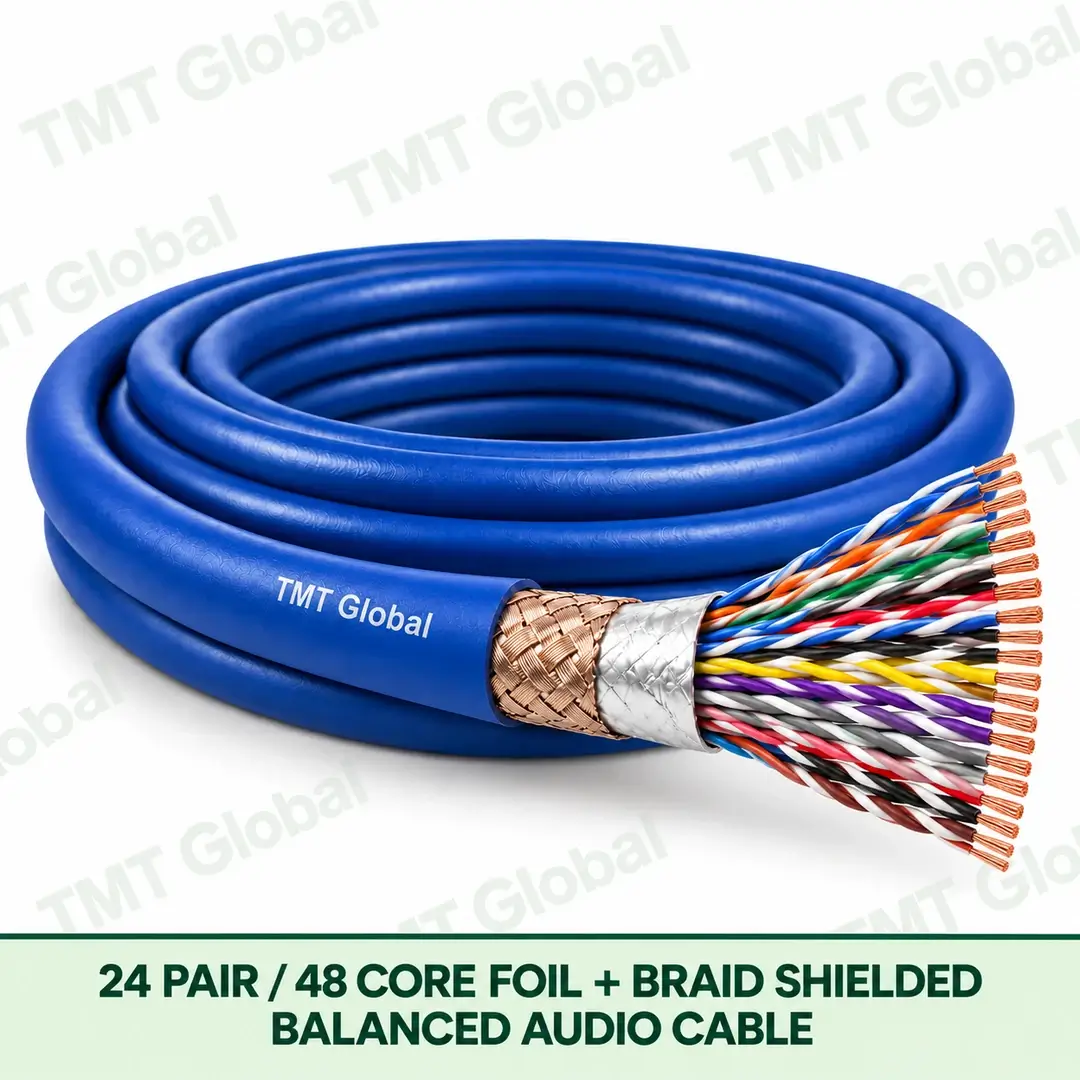

24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable
KEY FEATURES
- 24 twisted pairs / 48 colour-coded stranded copper conductors
- Pair screening plus overall copper braid for higher EMI protection
- 18, 20, 22, 24 AWG Series options
- PVC, LSZH, PE Outdoor jacket choices
- Low-capacitance audio construction subject to released factory design
- Exact searchable ordering code for every approved combination
Description
TMT 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable Series
TMT Global 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable is a configurable balanced analogue line-level audio cable family for studios, broadcast rooms, AV racks, theatres, venues and installed sound systems. The product page fixes the 24-pair foil-plus-braid screened construction, while the TMT Series ordering table provides exact conductor-size and jacket item codes for search, quotation and project selection.
KEY FEATURES
- 24 twisted pairs / 48 colour-coded stranded copper conductors
- Pair screening plus overall copper braid for higher EMI protection
- 18, 20, 22, 24 AWG Series options
- PVC, LSZH, PE Outdoor jacket choices
- Low-capacitance audio construction subject to released factory design
- Exact searchable ordering code for every approved combination
TYPICAL APPLICATIONS
- Balanced line-level analogue audio
- Studio, broadcast and AV rack interconnection
- Mixing consoles, patch bays and signal processors
- Theatres, venues, hospitality and installed sound systems
- Multipair audio snakes and central equipment rooms
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Balanced analogue line-level audio signal cable |
| Pair / core configuration | 24 twisted pairs / 48 colour-coded insulated conductors |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Core identification | Colour-coded insulated conductors arranged as balanced pairs |
| Available conductor sizes | 18 AWG / 20 AWG / 22 AWG / 24 AWG |
| Pair construction | Balanced twisted audio pairs |
| Screening | Foil screening with overall copper braid |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round Twisted Pair |
| Standard colours | Blue (PVC / LSZH); Black (PE Outdoor) |
| Package length | 305 m |
| Series | 48B-AU SERIES |
| Intended service | Balanced analogue line-level audio and installed professional-audio interconnection |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 18 AWG | 0.823 mm² | PVC / LSZH (Blue) • PE Outdoor (Black) • 305 m |
| 20 AWG | 0.519 mm² | PVC / LSZH (Blue) • PE Outdoor (Black) • 305 m |
| 22 AWG | 0.326 mm² | PVC / LSZH (Blue) • PE Outdoor (Black) • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH (Blue) • PE Outdoor (Black) • 305 m |
Additional information
| AWG | 18 awg, 20 awg, 22 awg, 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Blue |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 18 awg | PVC | Blue | 305 m |  | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 18 awg | LSZH | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 18 awg | PE Outdoor | Black | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 20 awg | PVC | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 20 awg | LSZH | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 20 awg | PE Outdoor | Black | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 22 awg | PVC | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 22 awg | LSZH | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 22 awg | PE Outdoor | Black | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 24 awg | PVC | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 24 awg | LSZH | Blue | 305 m | | |
| 24 Pair / 48 Core Foil + Braid Shielded Balanced Audio Cable | 48B-AU | 24 awg | PE Outdoor | Black | 305 m | |
