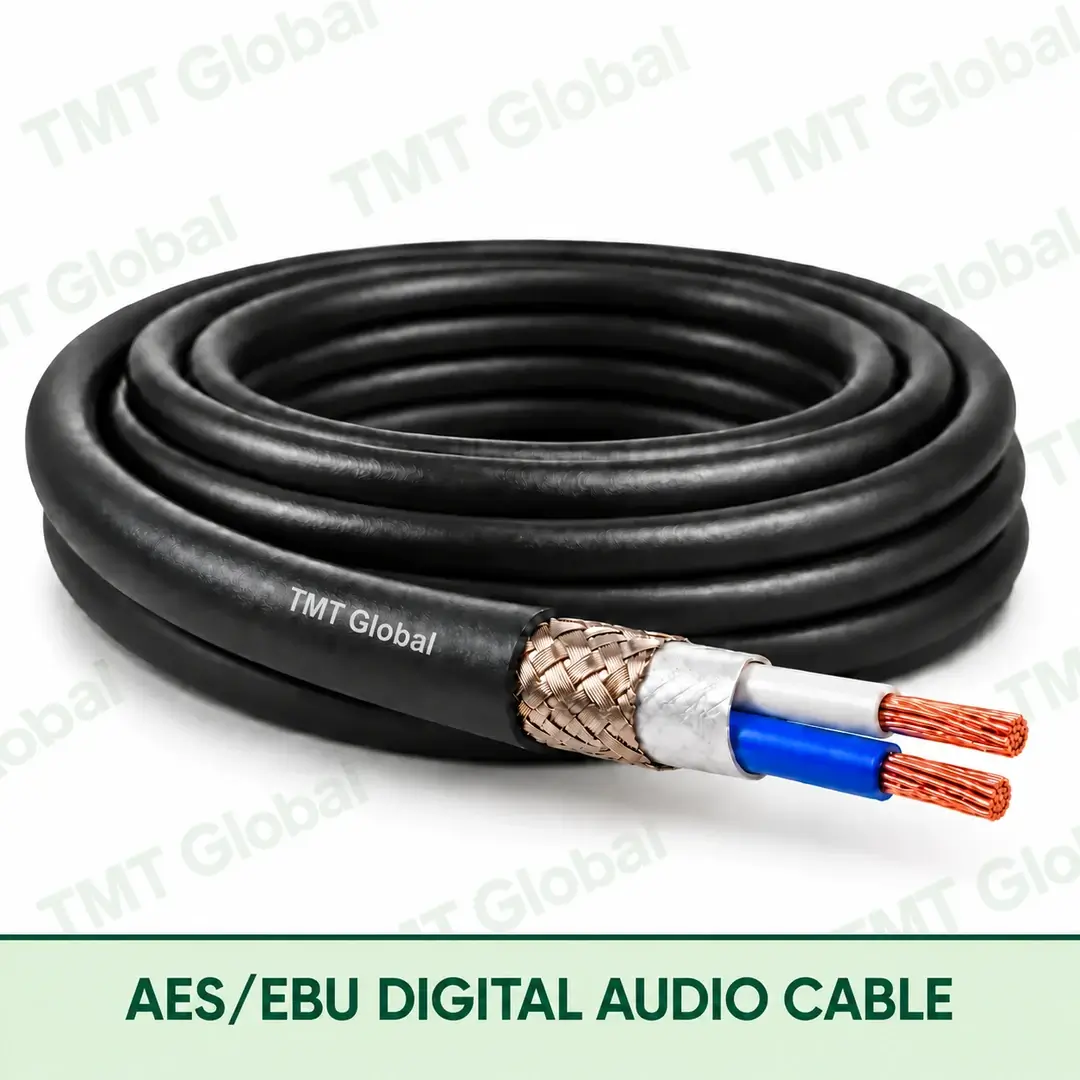

1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable
KEY FEATURES
- 1 twisted pair / 2 colour-coded stranded copper conductors
- Controlled 110 ohm characteristic impedance target for AES3 / AES-EBU
- 22, 24, 26 AWG Series options
- PVC, LSZH jacket choices
- Low-capacitance audio construction subject to released factory design
- Exact searchable ordering code for every approved combination
Description
TMT 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable Series
TMT Global 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable is a configurable 110 ohm professional digital-audio cable family for studios, broadcast rooms, AV racks, theatres, venues and installed sound systems. The product page fixes the 1-pair AES/EBU electrical construction, while the TMT Series ordering table provides exact conductor-size and jacket item codes for search, quotation and project selection.
KEY FEATURES
- 1 twisted pair / 2 colour-coded stranded copper conductors
- Controlled 110 ohm characteristic impedance target for AES3 / AES-EBU
- 22, 24, 26 AWG Series options
- PVC, LSZH jacket choices
- Low-capacitance audio construction subject to released factory design
- Exact searchable ordering code for every approved combination
TYPICAL APPLICATIONS
- AES3 / AES-EBU digital-audio links
- Broadcast, studio and post-production routing
- Digital consoles, interfaces, patch systems and equipment racks
- Multichannel digital-audio snakes and fixed installations
- Analogue audio use only where the released electrical design permits
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | 110 Ω AES3 / AES/EBU professional digital-audio cable |
| Pair / core configuration | 1 twisted pair / 2 colour-coded insulated conductors |
| Conductor material | Bare copper |
| Conductor construction | Stranded copper |
| Core identification | Colour-coded insulated conductors arranged as balanced pairs |
| Available conductor sizes | 22 AWG / 24 AWG / 26 AWG |
| Pair construction | Balanced twisted digital-audio pairs |
| Screening | Individually foil-screened pairs with drain wire |
| Outer-jacket options | PVC / LSZH |
| Cable form | Round Digital Audio Pair |
| Standard colour | Violet |
| Package length | 305 m |
| Series | 02S-DA SERIES |
| Intended service | AES3 / AES/EBU professional digital-audio links; nominal 110 Ω family |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 22 AWG | 0.326 mm² | PVC / LSZH (Violet) • 305 m |
| 24 AWG | 0.205 mm² | PVC / LSZH (Violet) • 305 m |
| 26 AWG | 0.129 mm² | PVC / LSZH (Violet) • 305 m |
Additional information
| AWG | 22 awg, 24 awg, 26 awg |
|---|---|
| Brand | TMT Global |
| Colour | Violet |
| Jacket Type | LSZH, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable | 02S-DA | 22 awg | PVC | Violet | 305 m |  | |
| 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable | 02S-DA | 22 awg | LSZH | Violet | 305 m | | |
| 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable | 02S-DA | 24 awg | PVC | Violet | 305 m | | |
| 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable | 02S-DA | 24 awg | LSZH | Violet | 305 m | | |
| 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable | 02S-DA | 26 awg | PVC | Violet | 305 m | | |
| 1 Pair / 2 Core 110 Ohm AES/EBU Digital Audio Cable | 02S-DA | 26 awg | LSZH | Violet | 305 m | |
