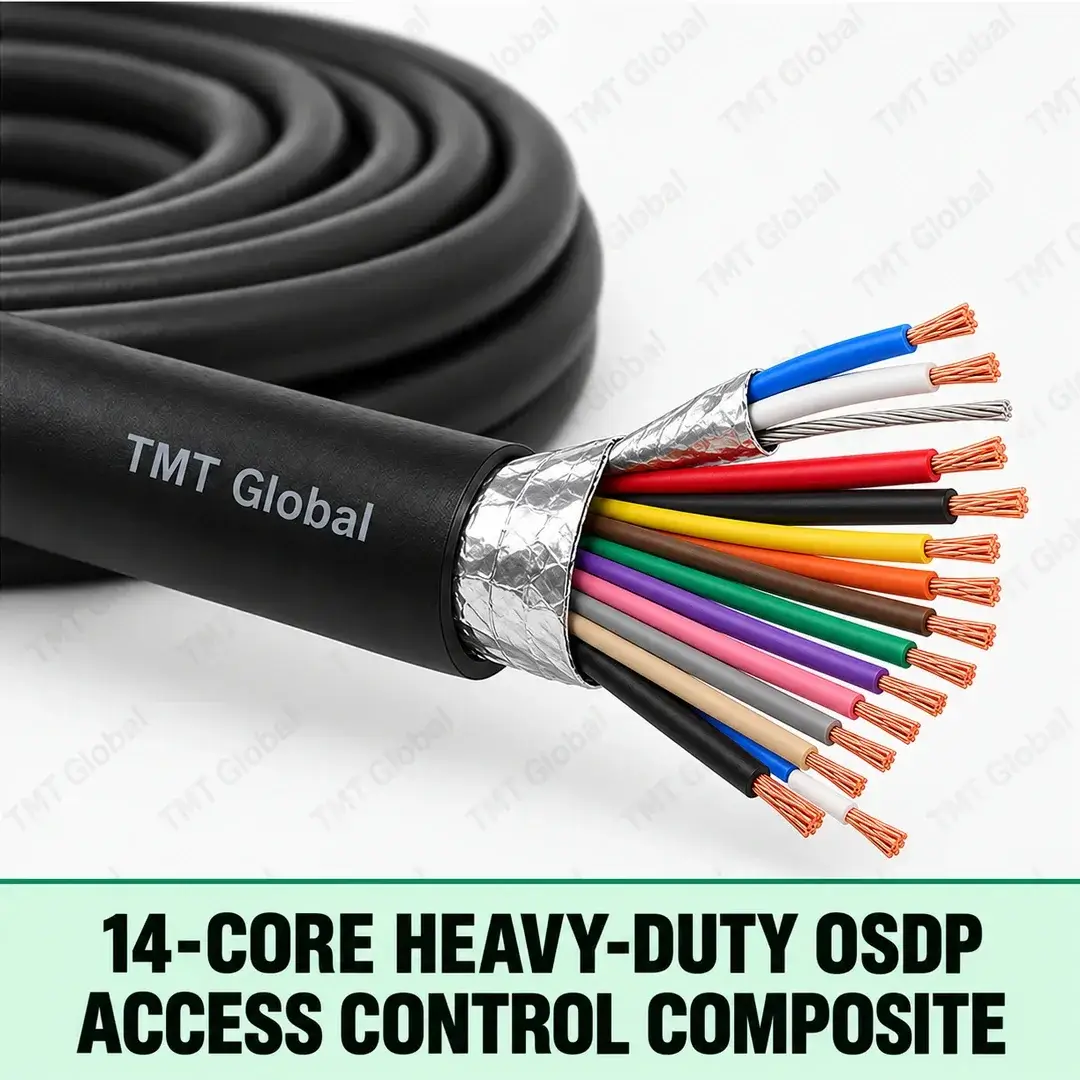

14 Core Heavy-Duty OSDP Access Control Composite
KEY FEATURES
- Access-control-specific construction
- 1PR22 + 2C18 + 4C22 + 4C18 + 2C16
- OSDP pair shielded
- 305 m standard package
- Factory evidence required for released electrical values
Description
TMT 14 Core Heavy-Duty OSDP Access Control Composite Series
TMT Global 14 Core Heavy-Duty OSDP Access Control Composite is a controlled Security & ELV cable family for professional door access-control installations. Heavy-duty OSDP composite with 16 AWG lock-power conductors and separate reader power, door and REX/auxiliary sections. It is controlled separately because the mixed-gauge architecture materially changes. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.
KEY FEATURES
- Access-control-specific construction
- 1PR22 + 2C18 + 4C22 + 4C18 + 2C16
- OSDP pair shielded
- 305 m standard package
- Factory evidence required for released electrical values
APPLICATIONS
- High-current locking
- Long-run OSDP doors
- Commercial security projects
Technical Specifications
| PARAMETER | TECHNICAL SPECIFICATION |
| Product family | 14 Core Heavy-Duty OSDP Access Control Composite |
| Series | OSDP-HD-AXHD |
| Primary function | Heavy-duty OSDP composite |
| Conductor schedule | 1PR22 + 2C18 + 4C22 + 4C18 + 2C16 |
| Conductor construction | Stranded copper conductors |
| Screening | OSDP pair shielded |
| Cable form | Round / common jacket |
| Jacket options | PVC / LSZH / PE Outdoor |
| Standard colours | Grey / Black |
| Standard package | 305 m |
| Installation / protocol | OSDP / 2-wire RS-485 access-control link |
| Series status | PVC / LSZH: Core market; PE Outdoor: Outdoor / project |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA (mm²) | SERIES AVAILABILITY |
| 16 AWG | 1.31 | PVC / LSZH / PE Outdoor |
| 18 AWG | 0.823 | PVC / LSZH / PE Outdoor |
| 22 AWG | 0.326 | PVC / LSZH / PE Outdoor |
Additional information
| AWG | 22 awg |
|---|---|
| Brand | TMT Global |
| Length | 305 m |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Colour | Black, Grey |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 14 Core Heavy-Duty OSDP Access Control Composite | OSDP-HD-AXHD | 22 awg | PVC | Grey | 305 m |  | |
| 14 Core Heavy-Duty OSDP Access Control Composite | OSDP-HD-AXHD | 22 awg | LSZH | Grey | 305 m | | |
| 14 Core Heavy-Duty OSDP Access Control Composite | OSDP-HD-AXHD | 22 awg | PE Outdoor | Black | 305 m | |
