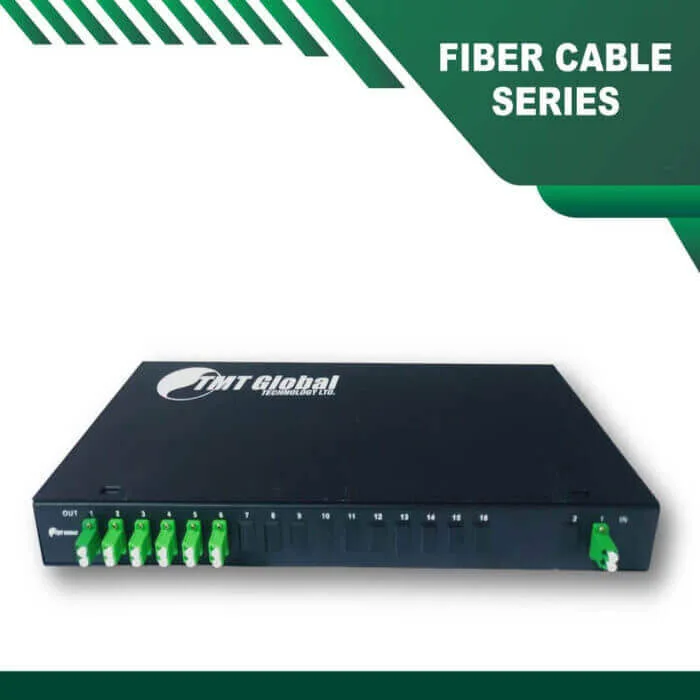

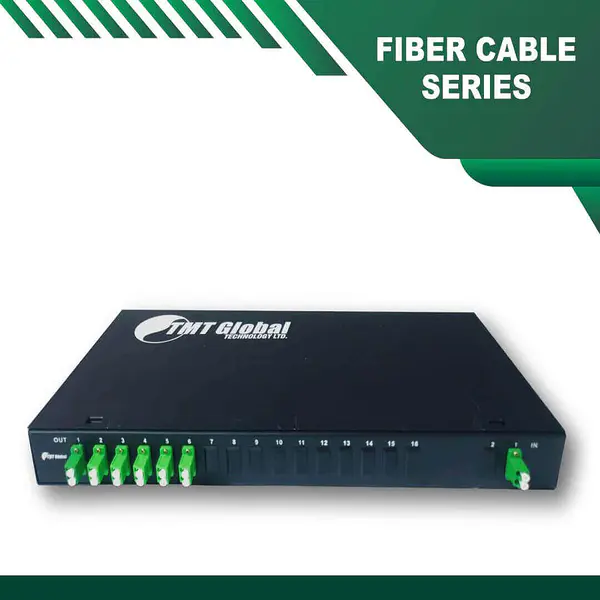

Fiber Splitter LC-APC Rack Mounted 2X12
$290.00
General Specification
Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ: 11.4dB/Max: 12.3dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type : G.652D,G.657A1/A2
Connector Type :LC/APC
Product ID : TMT-Y121LDL
TMT Global Fiber Optic Splitter LC-APC Rack Mounted 2X12
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.Fiber Splitter LC-APC Rack Mounted 2X12
All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality Reliability and efficiency. From Design and Fabrication to Finished Product Assembly each phase in the Manufacturing process is rigorously monitored and measured to ensure the highest quality durability and operating excellence.
Features
Low Insertion loss
Low PDL
High Return Loss
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
High Reliability and Stability
Uniform Power Splitting
Applications
Passive Optical Networks (PON)
Cable Television (CATV Links)
Local Area Networks (LAN)
Test Equipment’s
Optical Signal Distribution
FTTX Deployments (FTTP, FTTH, FTTN,
FTTC, FTTB)
OPTICAL PARAMETERS
Operating Wavelength : nm 1260 ~ 1650
Insertion Loss : Typ:16.8dB/Max: 17.8dB
Channel Uniformity: Typ:2.0dB / Max: 2.5dB
PDL: Typ:0.2dB / Max: 0.4dB
Wavelength dependent loss: Typ:0.2dB / Max: 0.5dB
Temperature stability: Typ:0.4dB / Max: 0.5dB
Return Loss : Min. dB 50
Directivity : Min. dB 55
Operating Temperature : °C -40 ~ 85
Storage Temperature :°C 40 ~ 85
Fiber Length : 1.0+/0.1 or Customer specified
Fiber Type : G.652D,G.657A1/A2
Connector Type :LC/APC
