loop detector Gate Barrier Gate Motor Single Channel 12-24V AC

TMT Global  loop detector Gate Barrier Gate Motor Single Channel 12-24V AC

TMT Global   loop detector Gate Barrier Gate Motor Single Channel 12-24V AC Gate Barrier Gate Motor Dual Channel 12-24V AC  in recent years have become a popular tool having innumerable applications in policing, right from surveillance operations to traffic control. Automation of gates and doors has become a popular usage of the  loop detector.

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems.

Technical Parameters

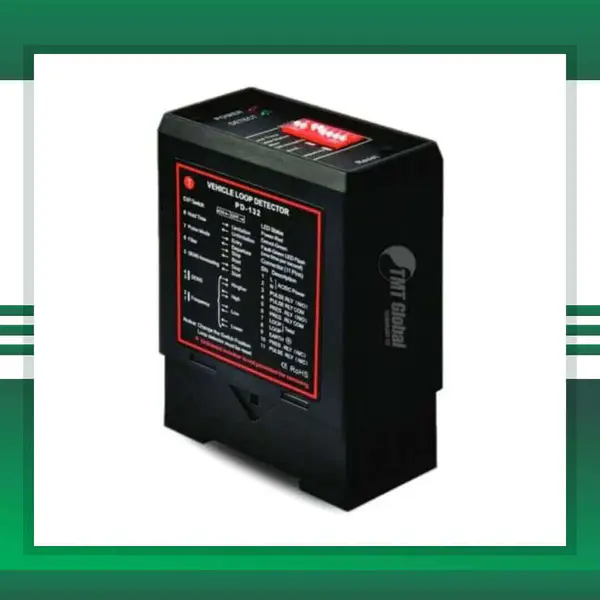

• Product Name: Loop Detector
• Self-turning range: 20-2000μH
• Response Times: Turn-on 10-90MS Turn-off 10-90MS
• Sensitivity: 16 way selectable , Highest 0.010% DL/L , Lowest 2.56% DL/L
• Power Requirements: 110-240VAC (48 to 62Hz) 12-24VADC(48 to 62Hz)
• Visual Indications: Power LED-Red,  Channel LED-Green
• Reset: Reset by push button on front of enclosure
• Frequency Four step switch selectable 20-80KHz
• Relay Output: Presence Relay/Fault Relay
• Voltage tolerance : AC+10% / -15%
• Voltage tolerance : DC±15%
• Device Channel: Single /Double
• Operating temperature: 40℃ to +70℃ (-111℉ to +158℉)
• Sensitivity : 4 levels adjustable
• Relative Humidity: <95%
• Application: open gate, match with barrier gate, gate opener etc.
