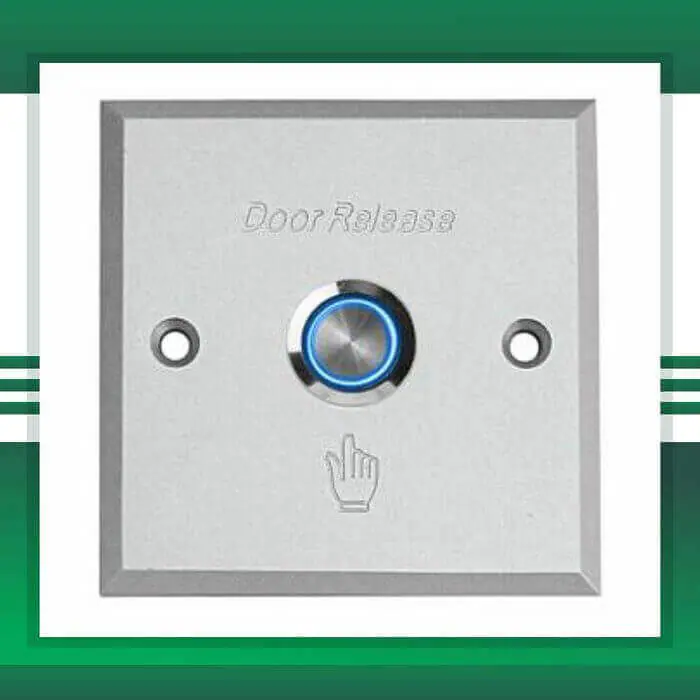

Door Exit Push Button TMT-7673
General Specification
Material: Aluminum Panel, Steel Button
Voltage:Â DC12V
Current : 10mA h
Mechanical Life: 1000000 tested
Current Rating: 3A,36VDC Max
Output: GND NO NC COM
Dimension :86 x 86x 33 mm
Weight : 0.14kg
Â
TMT Global Door Exit Push Button aluminium Series
Discover TMT Global Technology Ltd and their innovative solutions, notably the Aluminium Series of Door Exit Push Buttons. Designed for both functionality and aesthetics, these robust and corrosion-resistant buttons play a crucial role in enhancing safety in commercial and residential settings. Perfect for architects and builders, the Aluminium Series integrates seamlessly into various environments, promoting efficient and safe exits during emergencies. The reliability of TMT Global push buttons minimizes maintenance costs, ensuring long-lasting performance without frequent replacements. Ideal for construction professionals and facility managers, these push buttons exemplify a commitment to safety, making them a preferred choice in the industry.
KEY FEATURES
- Four existing TMT form factors
- NO / NC / COM contact options
- Metal panel construction on legacy range
- Narrow and standard plate formats
- Long mechanical-life positioning
- Simple controller / lock release integration
APPLICATIONS
- Controlled office doors
- Security doors
- Reception and lobby exits
- Narrow-frame doors
- Retrofit access-control exits
| Specification | |
| Material | Aluminum Panel, Steel Button |
| Voltage | DC12V |
| Current | 10mA |
| Mechanical Life | 1000000 tested |
| Current Rating | 3A,36VDC Max |
| Output | GND NO NC COM |
| Dimension | 86 x 86x 33 mm |
| Weight | 0.14kg |
| ORDER INFORMATION | |
| Model No |                     Description |
| TMT-7673 | Door Exit Push Button TMT-7673 |
| Brand | TMT Global |
|---|
| Item Name | Item Code / SKU | Series | QR Code |
|---|---|---|---|
| Door Exit Push Button TMT-7673 | Door Exit Push Button |  |
