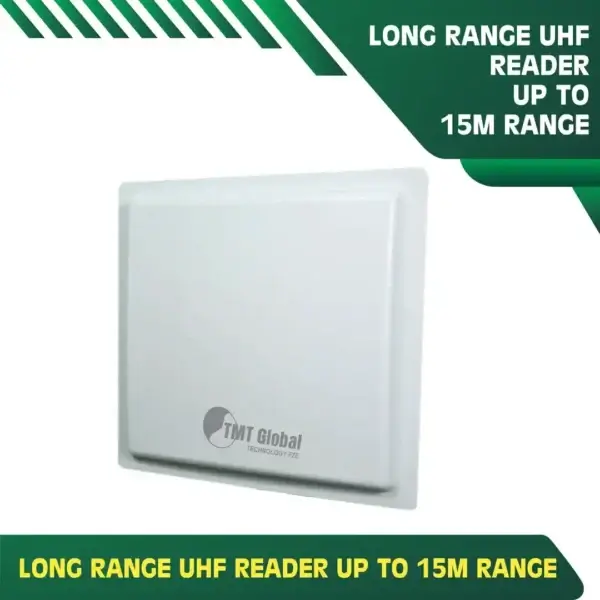

long range card reader UHF Rfid 15m Range
$1,200.00
General Specification:
Operating Frequency: 860-868 MHz, RF band Customized (Optional)
Frequency Hopping: FHSS or Fixed Frequency
Power / Current :+20dBm ~ +30dBm @ 50Ω load, 1dBm each step
Antenna : Built-in 12dBi linear Polarization antenna ( Horizontal / Vertical Customized)
Communication Interfaces: RS-232, Wiegand 26/34
Firmware Update: Firmware Upgrade
Tag Protocol : ISO18000-6B, EPC Class 1 Gen 2 (ISO18000-6C)
Reading: Range 0~15m
Power: DC 12V
Power Assumption: 2W (Standby), 10W (Working)
Net Weight: 3.5kg
Gross Weight: 6.23kg
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -60℃ ~ +80℃
Model No. : TMT-7641
TMT Global Long Range Uhf Reader Up To 15m Range
at TMT Global long range card reader UHF Rfid 15m Range range Integrated Reader widely applied in intelligent Transportation, customs access Management, Warehouse Logistics.uhf long range reader
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.
Functions
- UHF (860-868MHz) Band, Equipped with 12 DBI Antenna
- Support Standard RS-232, Wigand Interface
- Multi-Group I/O Ports, Controlling the Functional Mode of the Reader/writer
- Order-trigger, set time-trigger and out-trigger suitable for customer’s applications
- Upgrade firmware by serial port online
- Strong API user interface
Applications
Vehicle Parking, Intelligent Weighing
Warehouse logistics management
Asset management
Production line management
Performance Index
Operating Frequency: 860-868MHz, RF band customized (optional)
Frequency Hopping: FHSS or Fixed Frequency
Power Output: +20dBm ~ +30dBm@50Ω load, 1dBm each step
Antenna: Built-in 12dBi linear polarization antenna (horizontal/vertical customized)
Communication Interfaces: RS-232, Wiegand 26/34
Optional Interfaces:RS-485, 802.11 WIFI Module and 10M/100M Ethernet interfaces
I/O Interfaces: 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional)
Firmware Update: Firmware Upgrade
Application Software Platform: API(C++, C#) development kit (can be customized)
Tag Operation
Tag Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Reading Range: 0~15m
Writing Range: 0~5m
Mechanical/Electric Performance
IP Rating: IP66
Indicator: Buzzer and LED(Power, Antenna, Reading/Writing)
Power: DC 12V
Power Assumption: 2W(Standby), 10W(Working)
Product Dimension: 445mm x 445mm x 78mm (L x W x H)
Package Dimension: 600mm x 500mm x 110mm (L x W x H)
Net Weight: 3.5kg
Gross Weight: 6.23kg
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -60℃ ~ +80℃
Humidity: 5%~ 95%(non-condensing)
