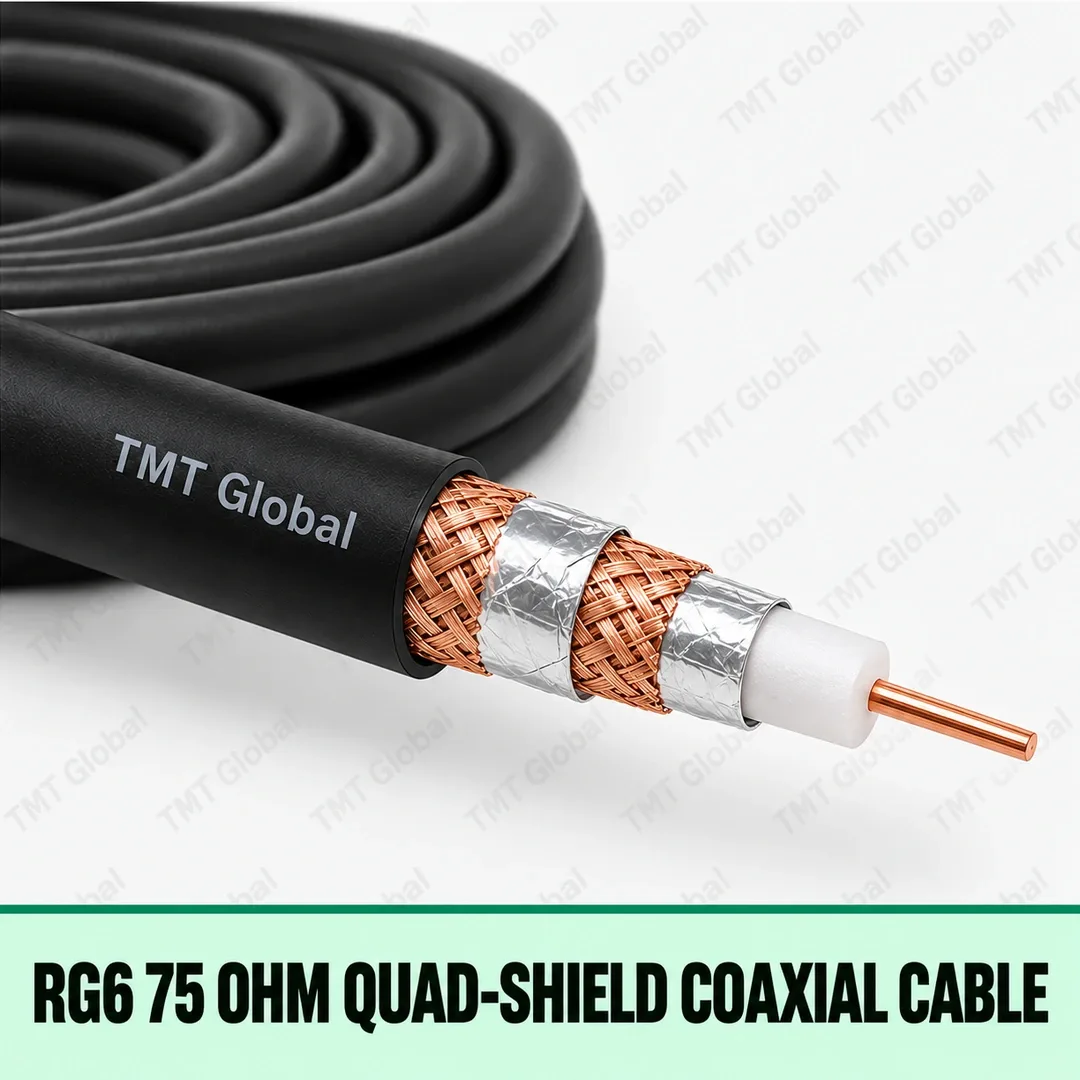

RG6 75 Ohm Quad-Shield Coaxial Cable
KEY FEATURES
- RG6 controlled construction
- 75 Ω nominal impedance family
- 18 AWG copper-clad steel centre conductor
- Quad shield screening construction
- 305 m standard package
Description
TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable Series
TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Series-6 quad-shield construction for RF/video distribution where higher screening performance is required. It is separated from standard RG6 because the shield stack and centre-conductor construction change materially. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.
KEY FEATURES
- RG6 controlled construction
- 75 Ω nominal impedance family
- 18 AWG copper-clad steel centre conductor
- Quad shield screening construction
- 305 m standard package
APPLICATIONS
- Satellite distribution
- CATV / broadband video
- High-interference RF routes
Technical Specification
| PARAMETER | TECHNICAL SPECIFICATION |
| Product family | RG6 75 Ohm Quad-Shield Coaxial Cable |
| Series | RG6-QUAD-R6 |
| RG / impedance | RG6; 75 Ω nominal family |
| Centre conductor | 18 AWG Copper-Clad Steel |
| Nominal conductor area | 0.823 mm² (18 AWG nominal area) |
| Shield construction | Quad shield |
| Cable form | Round standalone coaxial cable |
| Jacket options | PVC / LSZH / PE Outdoor |
| Standard colours | Black / White |
| Standard package | 305 m |
| Primary applications | Satellite distribution • CATV / broadband video • High-interference RF routes |
| Series availability | PVC / LSZH / PE Outdoor; exact colour and item-code options are listed on Ordering Information (Page C). |
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor |
Additional information
| AWG | 18 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, White |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| RG6 75 Ohm Quad-Shield Coaxial Cable | RG6-QUAD-R6 | 18 awg | PVC | Black | 305 m |  | |
| RG6 75 Ohm Quad-Shield Coaxial Cable | RG6-QUAD-R6 | 18 awg | PVC | White | 305 m | | |
| RG6 75 Ohm Quad-Shield Coaxial Cable | RG6-QUAD-R6 | 18 awg | LSZH | Black | 305 m | | |
| RG6 75 Ohm Quad-Shield Coaxial Cable | RG6-QUAD-R6 | 18 awg | LSZH | White | 305 m | | |
| RG6 75 Ohm Quad-Shield Coaxial Cable | RG6-QUAD-R6 | 18 awg | PE Outdoor | Black | 305 m | |
